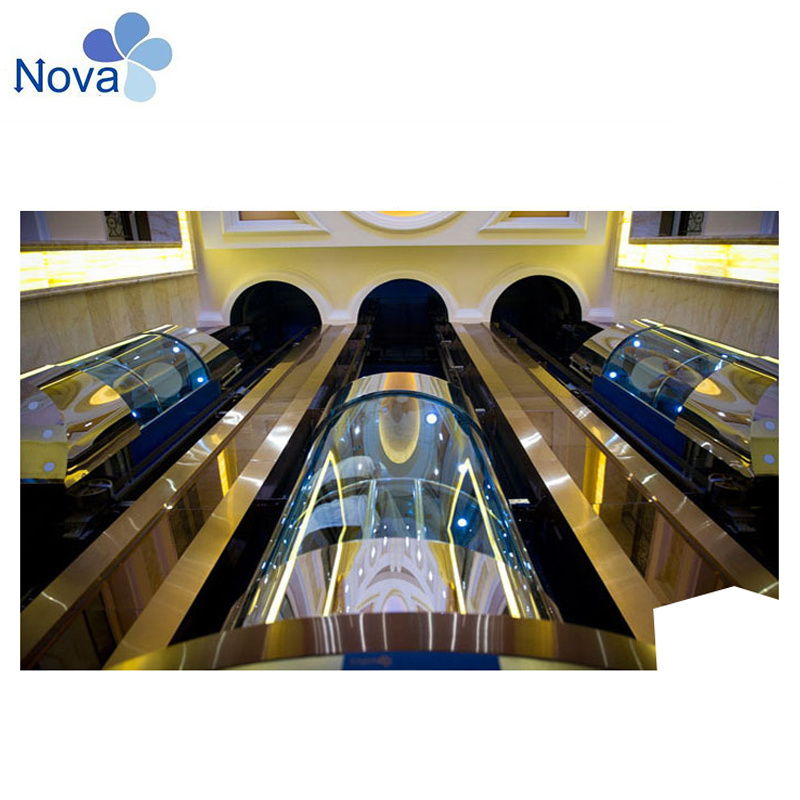

Shopping Mall Sightseeing Elevator with Safety Glass

Share to:

Shopping Mall Sightseeing Elevator with Safety Glass

Availability:

Quantity:



Inquire Add to Basket

Type:
Mr or Mrl
Speed:
1.00-1.75m/S
Capacity:
630-1250kgs
Persons:
8-16
Shape:
Square or Round
Number of Sides:
One Side, Two Sides, Three Sides

Product Description

NOVA panoramic lift applies the latest generation of permanent magnet synchronous technology. It is backed by the features of highly energy-saving and environment protection, effective and low noise. It effectively fulfills energy and power saving. It also saves the installation expense. It starts an energy-saving and environment protection trend and storm in the energy-saving epoch of 21st century.

Features:
1. Green environmental protection
2. Energy and power saving
3. Low noise running
4. Smooth and comfortable
5. Small and exquisite bulk
6. Super long service life
7. Effective running
8. Low degree of temperature rise
9. Strong resistance to interference
10. Latest material

Small machine room panoramic lift

Capacity	Speed	Cabin		Net opening size		Shaft		Overhead Height	Pit Depth
		CW	CD	JJ	HH	HW	HD	OH	PH
800	1	1200	1800	800	2100	2400	2400	4500	2000
	1.5							4600	2000
	1.75							4600	2000
1000	1	1300	1900	900	2100	2500	2500	4500	2000
	1.5							4600	2000
	1.75							4600	2000

Machine roomless panoramic lift

Capacity	Speed	Cabin		Net opening size		Shaft		Overhead Height	Pit Depth
		CW	CD	JJ	HH	HW	HD	OH	PH
630	1	1100	1600	800	2100	2400	2400	4500	2000
	1.5							4600	2000
	1.75							4600	2000
800	1	1200	1800	800	2100	2500	2400	4500	2000
	1.5							4600	2000
	1.75							4600	2000
1000	1	1300	1900	900	2100	2600	2500	4500	2000
	1.5							4600	2000
	1.75							4600	2000
1250	1	1500	2000	1000	2100	2800	2600	4500	2000
	1.5							4600	2000
	1.75							4600	2000

Panoramic Lift Sightseeing Elevator Shopping Mall Sightseeing Elevator with Safety Glass

Shopping Mall Sightseeing Elevator with Safety Glass
