| Quantity: | |
|---|---|
Online Technical Support
One Year

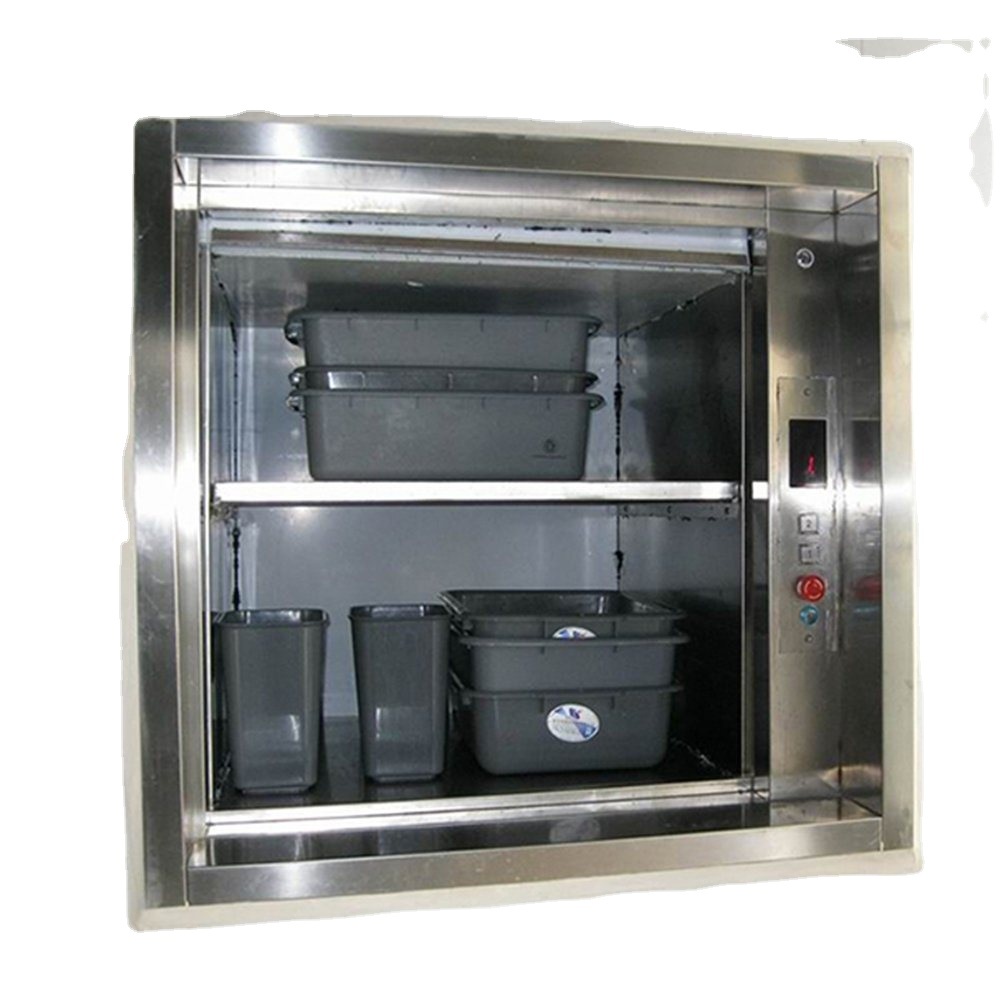

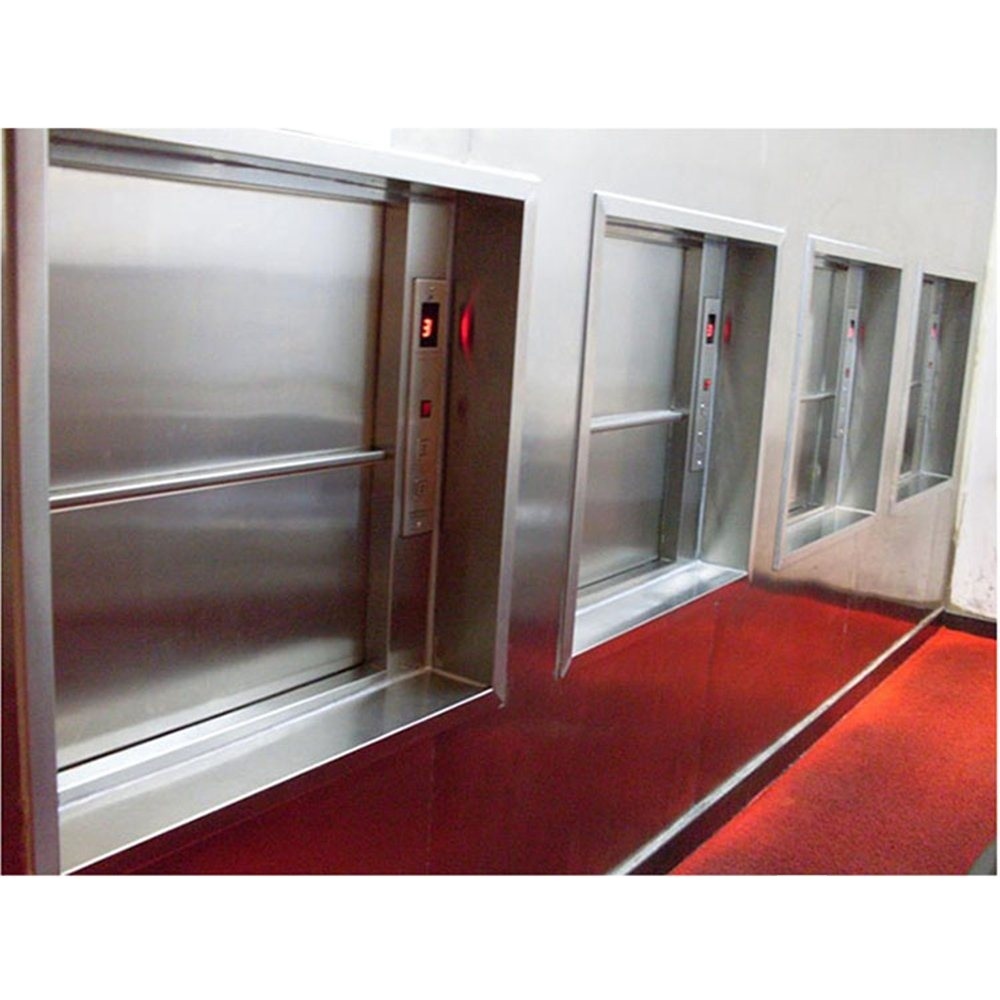

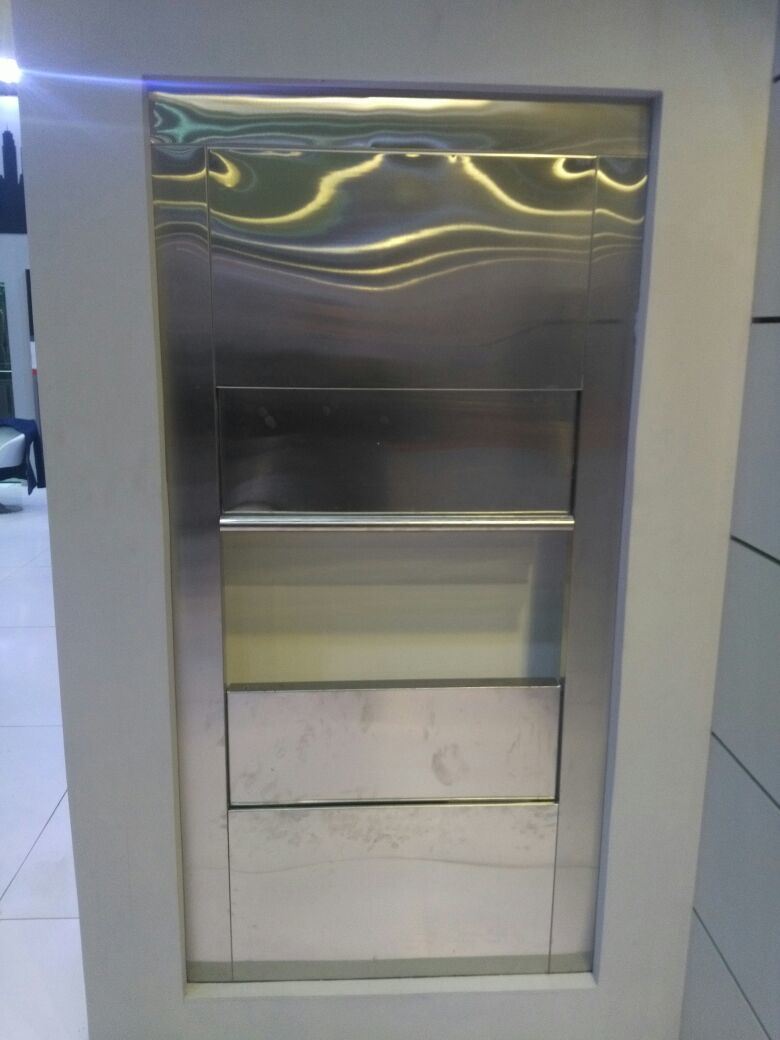

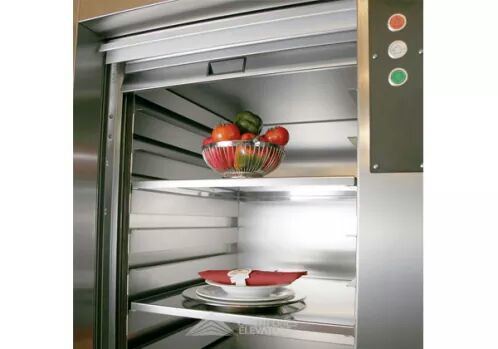

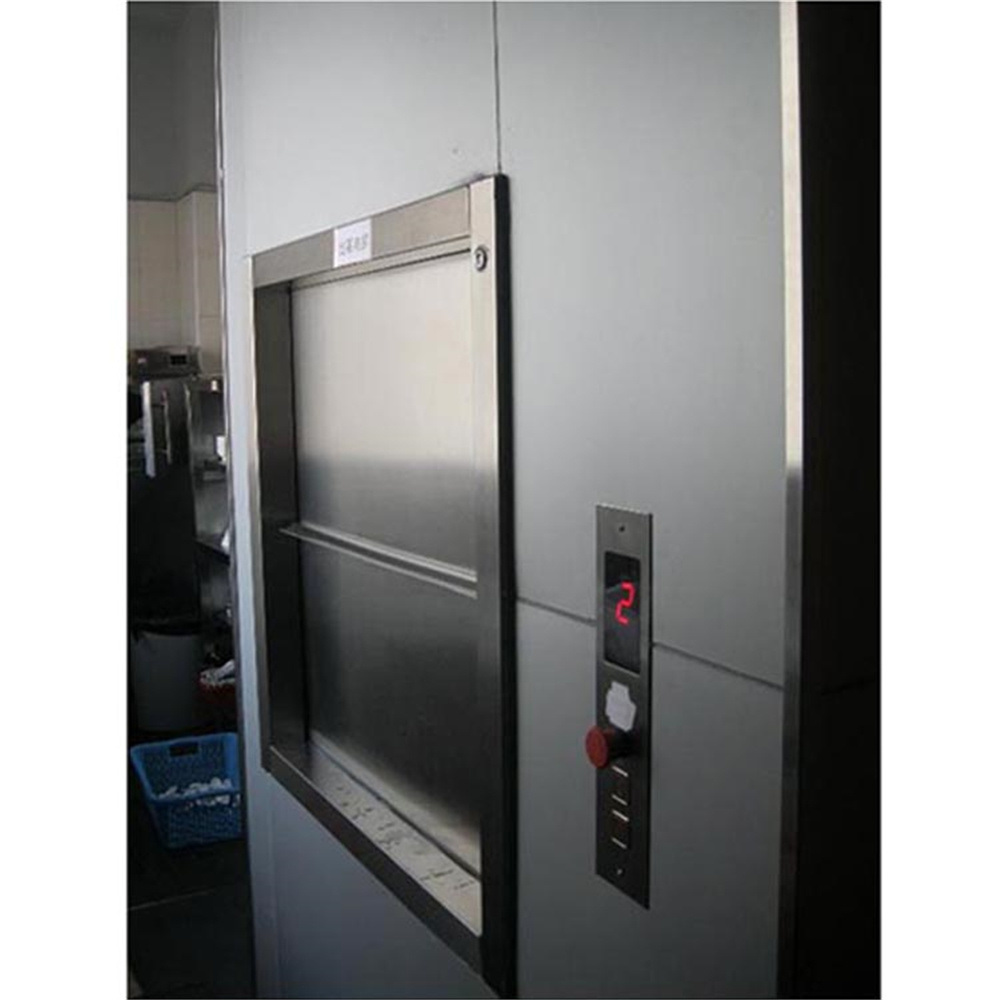

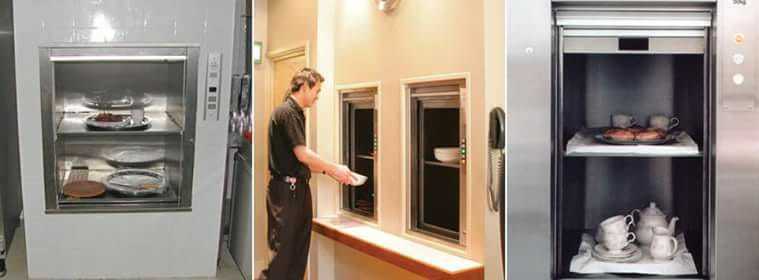

Food Elevator Dumbwaiter
100kgs-300kgs
0.25-0.5m/S
AC
1) Floor display
2) Open or closed sate display of the door
3) key switch
4) calling response
5) running direction display
6) overtime running protection
7) contactor conglutination or locked protection
8) trouble self diagnosis
9) emergency stop switch
10) wrong or short phase protection
11) motor overcurrent protection
12) inspection operation
13) emergency stop circuit inspection.
2. Basic Specification:

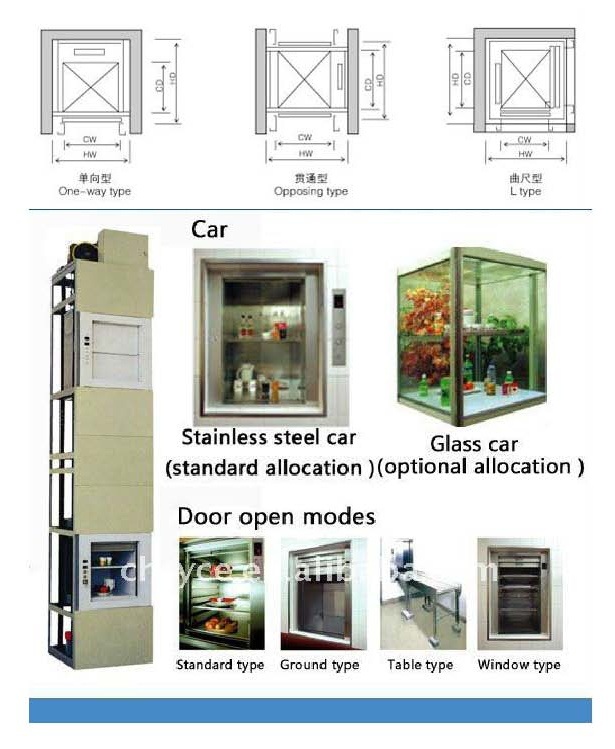

| Load (kg) | Traction Power (kw) | Category | Car size (mm) (C.W* C.D* C.H) | Hoistway size (mm) (HW*HD) | ||
| 100 | 1.1 | Workable | 700 | 700 | 800 | 1200*1000 |
| 200 | 1.5 | Workable | 800 | 800 | 900 | 1350*1100 |
| 200 | 1.5 | Level ground type | 900 | 900 | 1000 | 1500*1250 |
| 300 | 2.2 | Level ground type | 1000 | 1000 | 1200 | 1650*1350 |
