Introduction

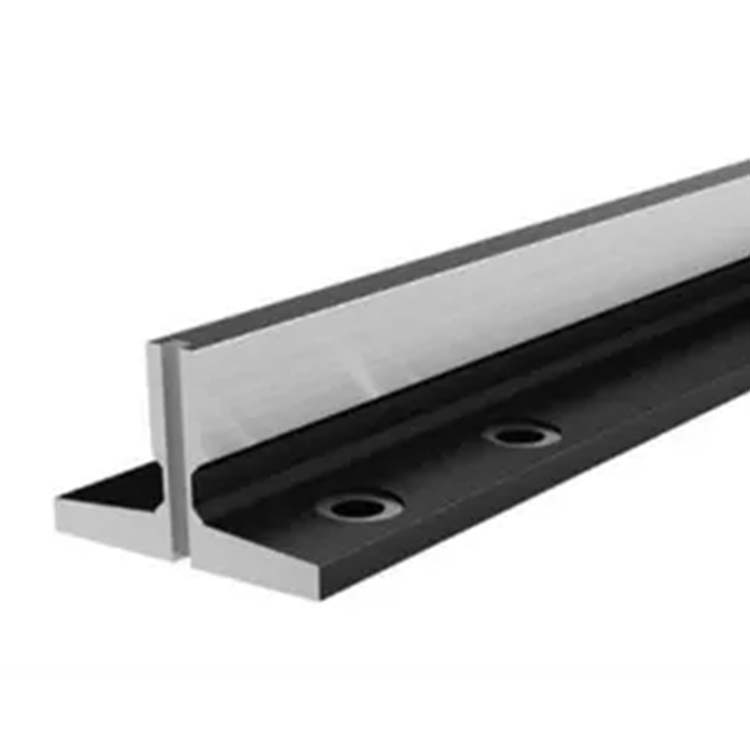

Elevator guide rails play a crucial role in ensuring the safe and smooth operation of elevators. They provide guidance and support to the elevator car and counterweight, ensuring that they move along the intended path. Therefore, the production quality of elevator guide rails is of utmost importance. In this article, we will discuss the production quality requirements of elevator guide rails from the aspects of raw material selection, production and processing, technical testing, packaging, and transportation.
Raw Material Selection
The quality of the raw materials used in the production of elevator guide rails directly affects the performance and durability of the final product. Therefore, it is essential to select high-quality raw materials that meet the relevant standards and specifications.
Steel Selection Elevator guide rails are typically made of high-quality carbon steel or stainless steel. The choice of steel depends on various factors such as the application environment, load requirements, and corrosion resistance. Carbon steel is commonly used due to its cost-effectiveness and good mechanical properties, while stainless steel is preferred in environments with high humidity or corrosive substances.
When selecting steel, it is important to ensure that it has the required strength, hardness, and toughness. The steel should also be free from defects such as cracks, inclusions, and porosity. Additionally, the chemical composition of the steel should meet the specified requirements to ensure its performance and durability.
Surface Treatment In addition to the selection of the right steel, the surface treatment of the raw materials is also crucial. The surface of the steel should be cleaned and treated to remove any impurities, oxides, or rust. This can be achieved through processes such as shot blasting, sandblasting, or chemical cleaning.
After cleaning, the surface of the steel is usually coated with a protective layer to enhance its corrosion resistance. Common coatings include galvanizing, zinc phosphate, or epoxy powder coating. These coatings not only protect the steel from corrosion but also improve its adhesion to subsequent processing steps.
Production and Processing
The production and processing of elevator guide rails involve several steps, including cutting, bending, welding, and finishing. Each step requires precise control and adherence to strict quality standards to ensure the dimensional accuracy and mechanical properties of the guide rails.
Cutting The raw steel is first cut into the required lengths using precision cutting tools such as saws or laser cutters. The cutting process should ensure that the edges are smooth and free from burrs to avoid stress concentration and potential damage during installation and use.
Bending After cutting, the steel is bent into the desired shape using specialized bending machines. The bending process should be carried out accurately to ensure that the guide rails have the correct curvature and alignment. Any deviation from the specified dimensions can affect the performance of the elevator.
Welding If the guide rails require welding, it is essential to use qualified welders and follow proper welding procedures. The welds should be free from defects such as cracks, porosity, or incomplete fusion. Welding inspections should be conducted to ensure the strength and integrity of the welds.
Finishing After bending and welding, the guide rails undergo a finishing process to smooth the surfaces and remove any roughness or imperfections. This can be achieved through processes such as grinding, polishing, or buffing. The finished surface should have a smooth texture to reduce friction and wear during the operation of the elevator.
Technical Testing
To ensure the quality of elevator guide rails, various technical tests are conducted at different stages of the production process. These tests help to verify the mechanical properties, dimensional accuracy, and surface quality of the guide rails.
Mechanical Properties Testing The mechanical properties of the steel, such as strength, hardness, and toughness, are tested to ensure that they meet the specified requirements. Common tests include tensile testing, hardness testing, and impact testing.
Dimensional Accuracy Testing The dimensions of the guide rails, including length, width, height, and curvature, are measured using precision measuring tools such as calipers, micrometers, and profile projectors. Any deviation from the specified dimensions is not acceptable as it can affect the installation and performance of the elevator.
Surface Quality Testing The surface quality of the guide rails is inspected for defects such as cracks, scratches, rust, or coating imperfections. Surface roughness is also measured to ensure that it meets the required standards.
Load Testing In some cases, load testing is conducted to simulate the actual operating conditions of the elevator and verify the load-bearing capacity of the guide rails. This test helps to ensure the safety and reliability of the guide rails in service.
Packaging and Transportation
Proper packaging and transportation are essential to protect the elevator guide rails from damage during storage and transit. The packaging should be designed to prevent the guide rails from bending, scratching, or being exposed to moisture and other environmental factors.
Packaging Elevator guide rails are usually packaged in wooden crates or steel frames to provide adequate protection. The crates or frames should be sturdy and securely fastened to prevent movement during transportation. Inside the packaging, the guide rails are typically wrapped with protective materials such as foam or plastic to prevent scratches and damage.
Transportation During transportation, the packaged guide rails should be handled with care to avoid rough handling or dropping. The transportation vehicle should be clean and dry to prevent moisture damage. It is also important to ensure that the guide rails are properly secured in the vehicle to prevent shifting or damage during transit.
Conclusion
In conclusion, the production quality of elevator guide rails is crucial for the safe and reliable operation of elevators. By selecting high-quality raw materials, following strict production and processing procedures, conducting thorough technical testing, and ensuring proper packaging and transportation, manufacturers can produce elevator guide rails that meet the highest quality standards. This not only ensures the safety of passengers but also extends the lifespan of the elevator system. When choosing elevator guide rails, it is important to look for products from reputable manufacturers who adhere to these quality requirements.
