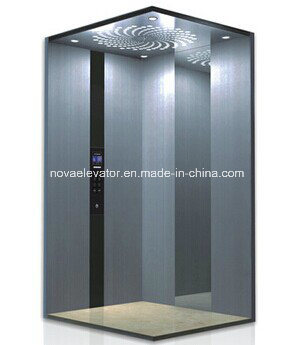

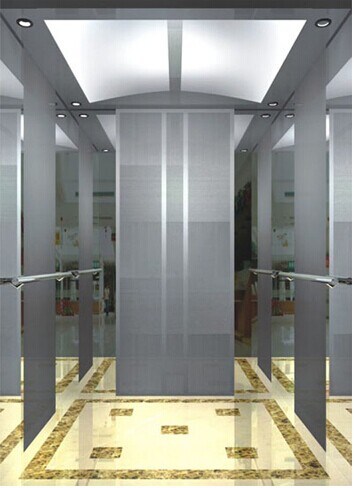

Elevator Cabin
Elevator
3000kg
6-10
1.00-2.00m/s
AC
With Machine Room | ||||||||
Loading ( Kgs) | Person | Speed ( m/s) | Roping | Shaft Clear Inner Size ( W*D in mm) | Car Clear Inner Size ( W*D*H in mm) | Door Open ( W*H in mm) | Pit Depth ( mm) | Overhead Heigh |
450 | 6 | 1.00 | 2:1 | 1800W*1650D | 1200W*1000D*2250H | 800W*2100H | ≥1500 | ≥4200 |
1.50 | ≥1600 | ≥4400 | ||||||
1.75 | ≥1700 | ≥4500 | ||||||
630 | 8 | 1.00 | 2:1 | 2000W*1750D | 1400W*1100D*2250H | 800W*2100H | ≥1500 | ≥4200 |
1.50 | ≥1600 | ≥4400 | ||||||
1.75 | ≥1700 | ≥4500 | ||||||
800 | 10 | 1.00 | 2:1 | 2000W*2000D | 1400W*1350D*2250H | 800W*2100H | ≥1500 | ≥4200 |
1.50 | ≥1600 | ≥4400 | ||||||
1.75 | ≥1700 | ≥4500 | ||||||
1000 | 13 | 1.00 | 2:1 | 2200W*2050D | 1600W*1400D*2250H | 900W*2100H | ≥1500 | ≥4200 |
1.50 | ≥1600 | ≥4400 | ||||||
1.75 | ≥1700 | ≥4500 | ||||||
Machine Roomless | ||||||||
Loading ( Kgs) | Person | Speed ( m/s) | Roping | Shaft Clear Inner Size ( W*D in mm) | Car Clear Inner Size ( W*D*H in mm) | Door Open ( W*H in mm) | Pit Depth ( mm) | Overhead Heigh |
450 | 6 | 1.00 | 2:1 | 1800W*1700D | 1000W*1200D*2250H | 800W*2100H | ≥1500 | ≥4400 |
1.50 | ≥1600 | ≥4600 | ||||||
1.75 | ≥1700 | ≥4700 | ||||||
630 | 8 | 1.00 | 2:1 | 2000W*1800D | 1100W*1400D*2250H | 800W*2100H | ≥1500 | ≥4400 |
1.50 | ≥1600 | ≥4600 | ||||||
1.75 | ≥1700 | ≥4700 | ||||||
800 | 10 | 1.00 | 2:1 | 2200W*1800D | 1350W*1400D*2250H | 800W*2100H | ≥1500 | ≥4400 |
1.50 | ≥1600 | ≥4600 | ||||||
1.75 | ≥1700 | ≥4700 | ||||||
1000 | 13 | 1.00 | 2:1 | 2250W*2000D | 1400W*1600D*2250H | 900W*2100H | ≥1500 | ≥4400 |
1.50 | ≥1600 | ≥4600 | ||||||
1.75 | ≥1700 | ≥4700 | ||||||
With Machine Room | ||||||||
Loading ( Kgs) | Person | Speed ( m/s) | Roping | Shaft Clear Inner Size ( W*D in mm) | Car Clear Inner Size ( W*D*H in mm) | Door Open ( W*H in mm) | Pit Depth ( mm) | Overhead Heigh |
450 | 6 | 1.00 | 2:1 | 1800W*1650D | 1200W*1000D*2250H | 800W*2100H | ≥1500 | ≥4200 |
1.50 | ≥1600 | ≥4400 | ||||||
1.75 | ≥1700 | ≥4500 | ||||||
630 | 8 | 1.00 | 2:1 | 2000W*1750D | 1400W*1100D*2250H | 800W*2100H | ≥1500 | ≥4200 |
1.50 | ≥1600 | ≥4400 | ||||||
1.75 | ≥1700 | ≥4500 | ||||||
800 | 10 | 1.00 | 2:1 | 2000W*2000D | 1400W*1350D*2250H | 800W*2100H | ≥1500 | ≥4200 |
1.50 | ≥1600 | ≥4400 | ||||||
1.75 | ≥1700 | ≥4500 | ||||||
1000 | 13 | 1.00 | 2:1 | 2200W*2050D | 1600W*1400D*2250H | 900W*2100H | ≥1500 | ≥4200 |
1.50 | ≥1600 | ≥4400 | ||||||
1.75 | ≥1700 | ≥4500 | ||||||
Machine Roomless | ||||||||
Loading ( Kgs) | Person | Speed ( m/s) | Roping | Shaft Clear Inner Size ( W*D in mm) | Car Clear Inner Size ( W*D*H in mm) | Door Open ( W*H in mm) | Pit Depth ( mm) | Overhead Heigh |
450 | 6 | 1.00 | 2:1 | 1800W*1700D | 1000W*1200D*2250H | 800W*2100H | ≥1500 | ≥4400 |
1.50 | ≥1600 | ≥4600 | ||||||
1.75 | ≥1700 | ≥4700 | ||||||
630 | 8 | 1.00 | 2:1 | 2000W*1800D | 1100W*1400D*2250H | 800W*2100H | ≥1500 | ≥4400 |
1.50 | ≥1600 | ≥4600 | ||||||
1.75 | ≥1700 | ≥4700 | ||||||
800 | 10 | 1.00 | 2:1 | 2200W*1800D | 1350W*1400D*2250H | 800W*2100H | ≥1500 | ≥4400 |
1.50 | ≥1600 | ≥4600 | ||||||
1.75 | ≥1700 | ≥4700 | ||||||
1000 | 13 | 1.00 | 2:1 | 2250W*2000D | 1400W*1600D*2250H | 900W*2100H | ≥1500 | ≥4400 |
1.50 | ≥1600 | ≥4600 | ||||||
1.75 | ≥1700 | ≥4700 | ||||||
