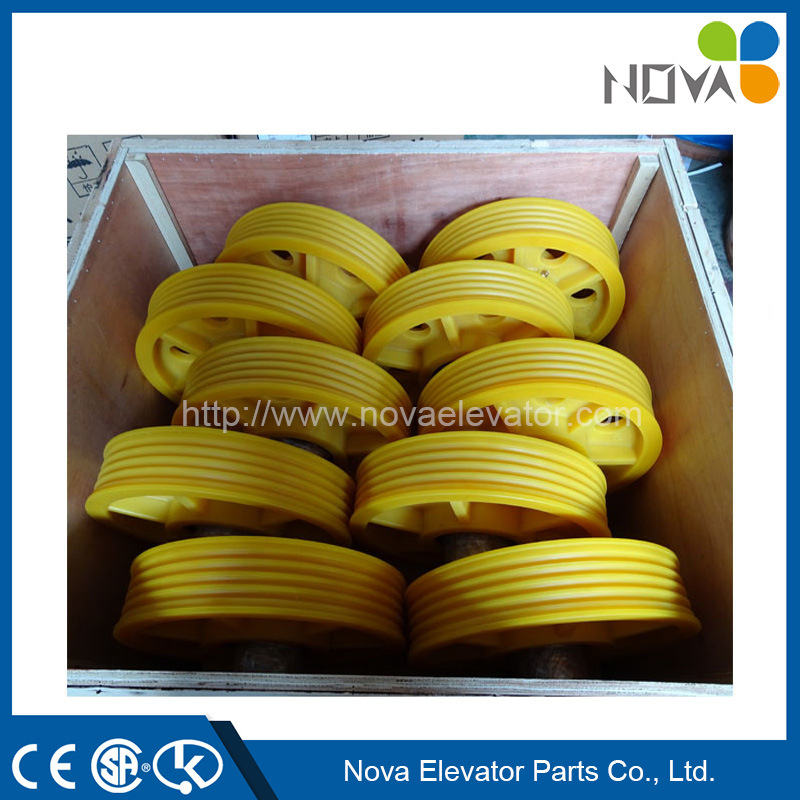

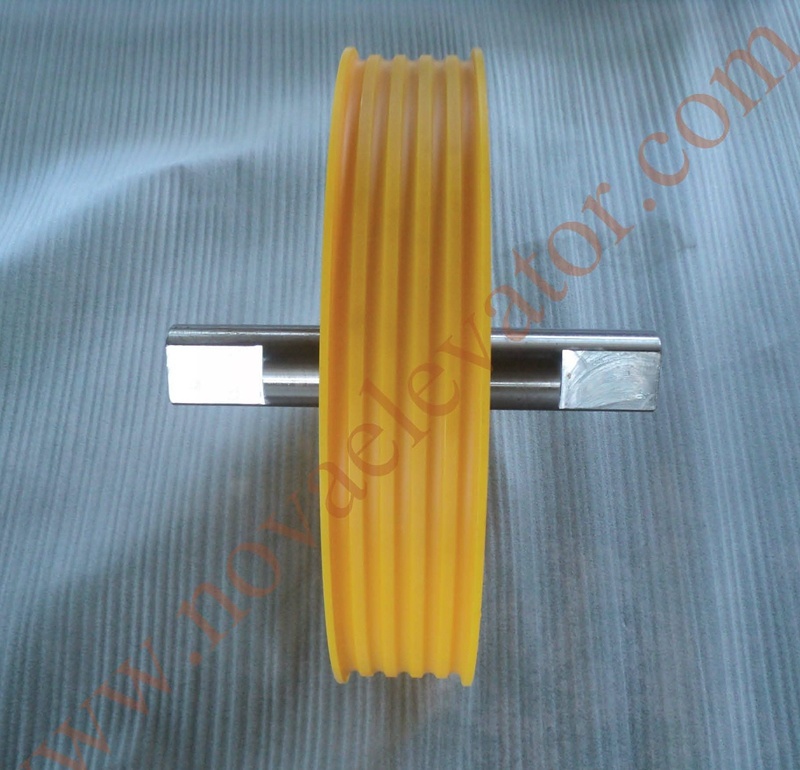

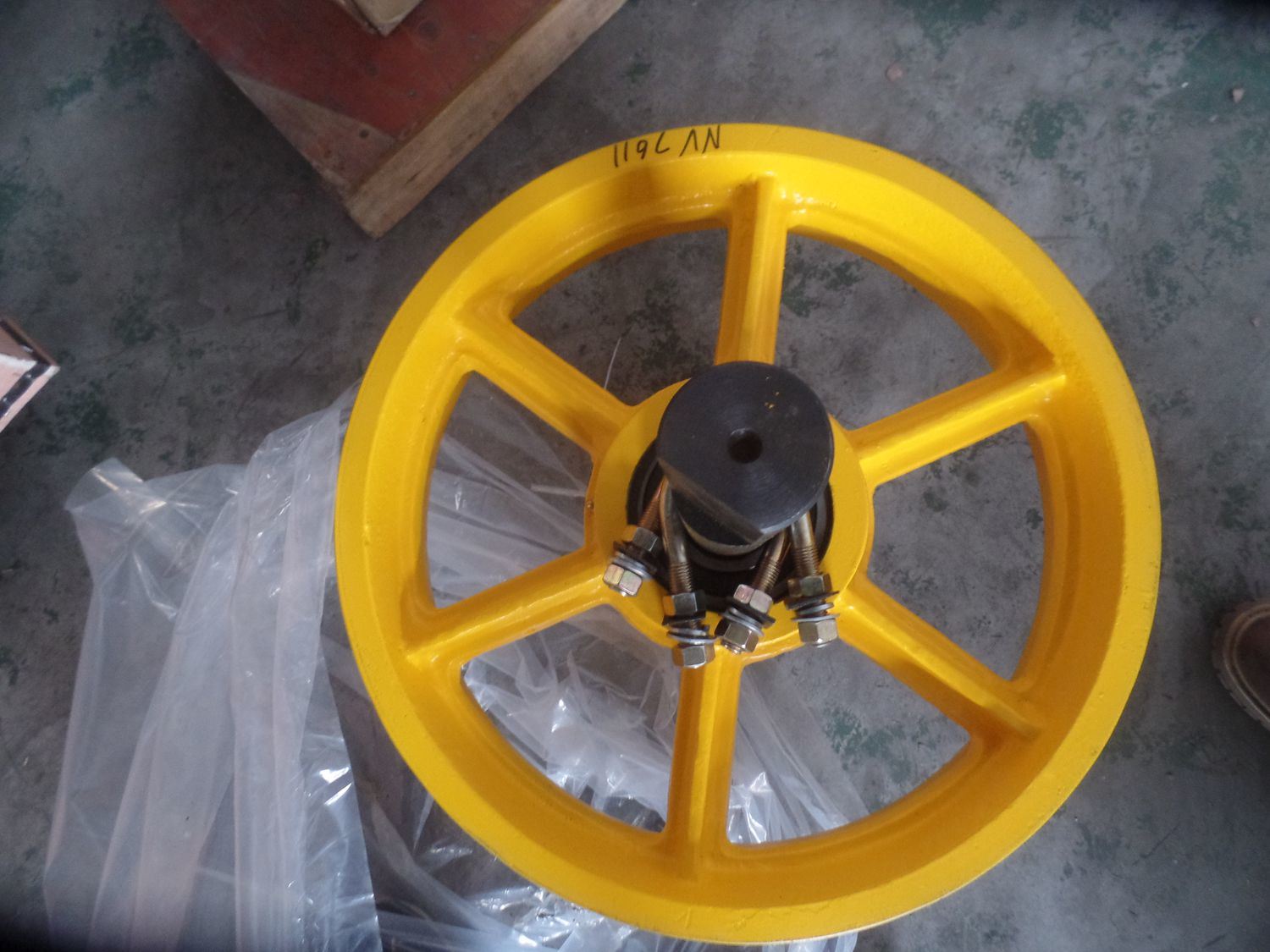

Mc Nylon Sheave for Elevator Car Frame

Availability:

Quantity:



Inquire Add to Basket

Type:
Elevator Pulley Sheave
Suitable for:
Elevator
Load Capacity:
3000kg
Persons:
6-10
Speed:
1.00-2.00m/s
Drive Mode:
AC

Product Description

Elevator Deflector Sheave

Model	Diameter	Aperture	Number	Rope	Slot Pitch	Thickness	Thickness	Rated	Bearing
Model	Diameter	Aperture	of slots	Rope	Slot Pitch	Thickness	Thickness	load	Bearing
	D	E	N	d	P	H	h	Q
NV-240-01	φ240	80	2	6.5	10	42	60	≤450KG	6206
NV-240-02		80	3	6.5	10	42	80	≤800KG	6208
NV-240-03		90	4	6.5	10	52	80	≤800KG	6210
NV-240-04		110	5	6.5	10	65	80	≤1000KG	6212
NV-320-01	φ320	110	3	8	12	52	80	≤630KG	6212
NV-320-02			3	8	13	52	80	≤630KG
NV-320-03			4	8	12	65	80	≤800KG
NV-320-04			4	8	13	65	80
NV-320-05			5	8	12	72	80
NV-320-06			5	8	13	72	80
NV-320-07		130	6	8	12	90	95	≤1600KG	6312
NV-320-08		130	6	8	13	90	95	≤1600KG	6312
NV-320-09		140	7	8	12	104	95	≤1600KG	6216
NV-320-10			7	8	13	104	95
NV-320-11			8	8	12	115	120
NV-320-12			8	8	13	115	120
NV-360-01	φ360	110	3	8	12	52	80	≤630KG	6212
NV-360-02			3	9	13	52	80
NV-360-03			4	8	12	65	80
NV-360-04			4	9	13	65	80
NV-360-05			5	8	12	78	95	≤1000KG
NV-360-06			5	9	13	78	95	≤1000KG
NV-360-07		130	6	8	12	90	95	≤1600KG	6312
NV-360-08		130	6	9	13	90	95	≤1600KG	6312
NV-360-09		140	7	8	12	108	95	≤1500KG	6313
NV-360-10		140	7	9	13	108	95		6313
NV-360-11		150	8	8	12	115	115		6314
NV-360-12		150	8	9	13	115	115		6314
NV-400-01	φ400	110	3	8	12	60	80	≤1000KG	6212
NV-400-02			3	8	13
NV-400-03			3	10	15
NV-400-04			3	10	16
NV-400-05			4	8	12
NV-400-06			4	8	13
NV-400-07			4	10	15	70	95
NV-400-08			4	10	16
NV-400-09			5	8	12
NV-400-10			5	8	13
NV-400-11		φ130	5	10	15	90	95	≤1600KG	6312
NV-400-12			5	10	16
NV-400-13			6	8	12
NV-400-14			6	8	13
NV-400-15			6	10	15	105	95
NV-400-16			6	10	16
NV-400-17			7	8	12
NV-400-18			7	8	13
NV-400-19		φ140	7	10	15	124	120	≤2000KG	6313
NV-400-20			7	10	16
NV-400-21			8	8	12
NV-400-22			8	8	13
NV-400-23			8	10	15	140	120
NV-400-24			8	10	16
NV-400-25			9	8	12
NV-400-26			9	8	13
NV-440-01	φ440	φ110	3	10	15	60	80	≤1000KG	6212
NV-440-02			3	10	16
NV-440-03			4	8	12
NV-440-04			4	8	13
NV-440-05		φ130	4	10	15	72	95	≤1600KG	6312
NV-440-06			4	10	16
NV-440-07			5	8	12
NV-440-08			5	8	13
NV-440-09			5	10	15	90	95
NV-440-10			5	10	16
NV-440-11			6	8	12
NV-440-12			6	8	13
NV-440-13		φ140	6	10	15	105	95	≤2000KG	6313
NV-440-14			6	10	16
NV-440-15			7	8	12
NV-440-16			7	8	13
NV-480-01	φ480	φ110	3	10	15	60	80	≤1000KG	6212
NV-480-02			3	10	16
NV-480-03			4	8	12
NV-480-04			4	8	13
NV-480-05		φ130	4	10	15	72	95	≤1600KG	6312
NV-480-06			4	10	16
NV-480-07			5	8	12
NV-480-08			5	8	13
NV-480-09			5	10	15	90	95
NV-480-10			5	10	16
NV-480-11			6	8	12
NV-480-12			6	8	13
NV-480-13		φ140	6	10	15	105	95	≤2000KG	6313
NV-480-14			6	10	16
NV-480-15			7	8	12
NV-480-16			7	8	13
NV-520-01	φ520	φ130	3	13	20	70	95	≤1000KG	6312
NV-520-02			4	10	15
NV-520-03			4	10	16
NV-520-05			4	13	20	90	95
NV-520-06			5	10	15
NV-520-07			5	10	16
NV-520-08			5	13	20	108	95	≤1600KG	6312
NV-520-09			6	10	15
NV-520-10			6	10	16
NV-520-11		φ140	6	13	20	128	120	≤2000KG	6313
NV-520-12			7	10	15
NV-520-13			7	10	16
NV-520-14		φ150	8	13	20	168	148	≤3000KG	6314
NV-520-15			10	10	15
NV-520-16			10	10	16
NV-640-01	φ640	φ160	5	16	25	132	120	≤3000KG	6315
NV-640-02		φ160	6	13	20	132	120	≤3000KG	6315
NV-640-03		φ170	6	16	25	160	140	≤5000KG	6316
NV-640-04		φ170	7	13	20	160	140	≤5000KG	6316

Mc Nylon Sheave for Elevator Car Frame Elevator Nylon Pulley Elevator Nylon Sheave

Mc Nylon Sheave for Elevator Car Frame
