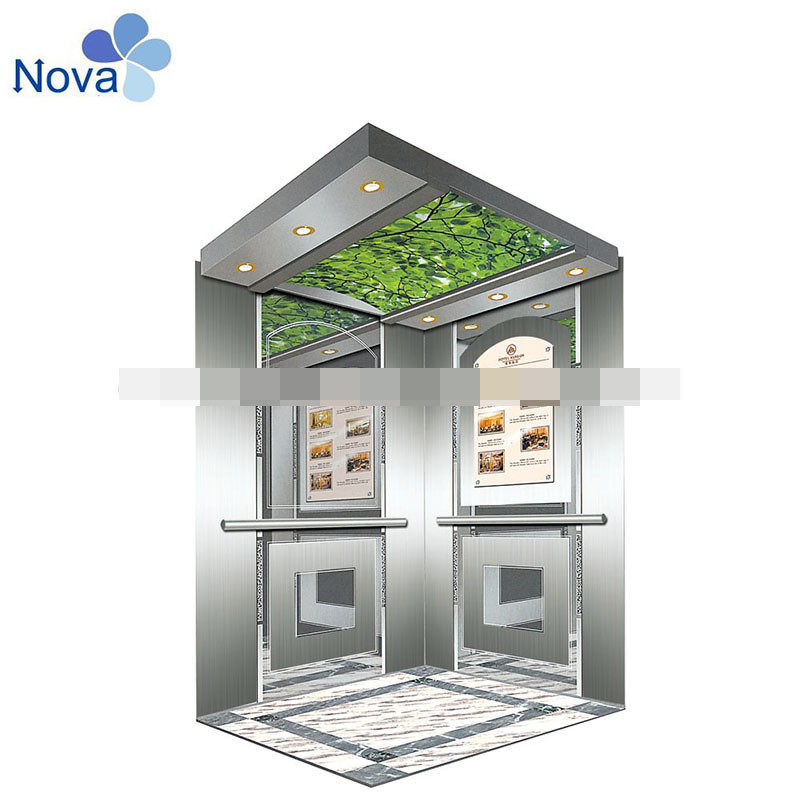

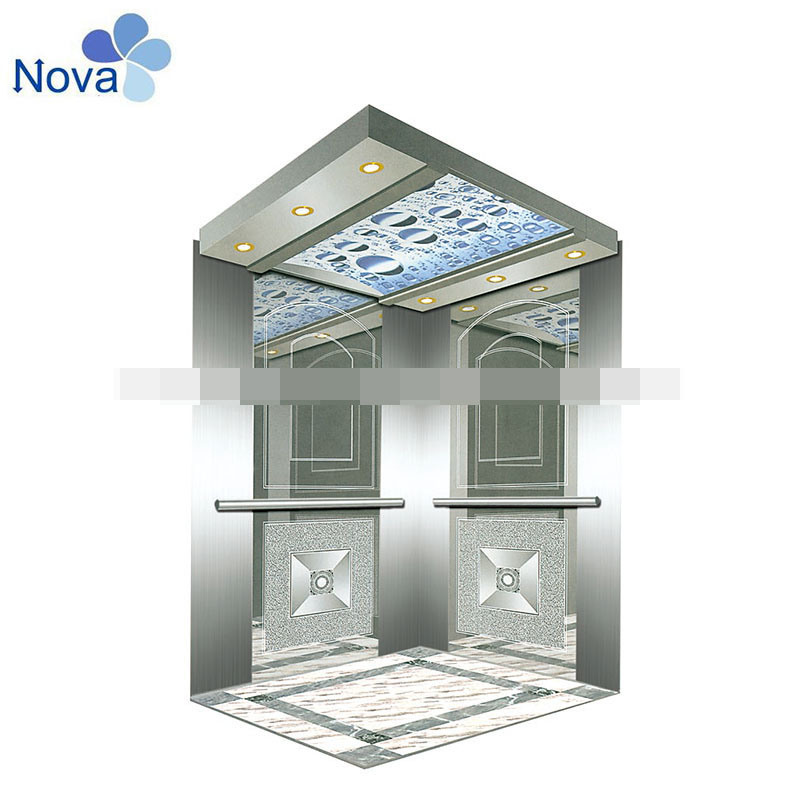

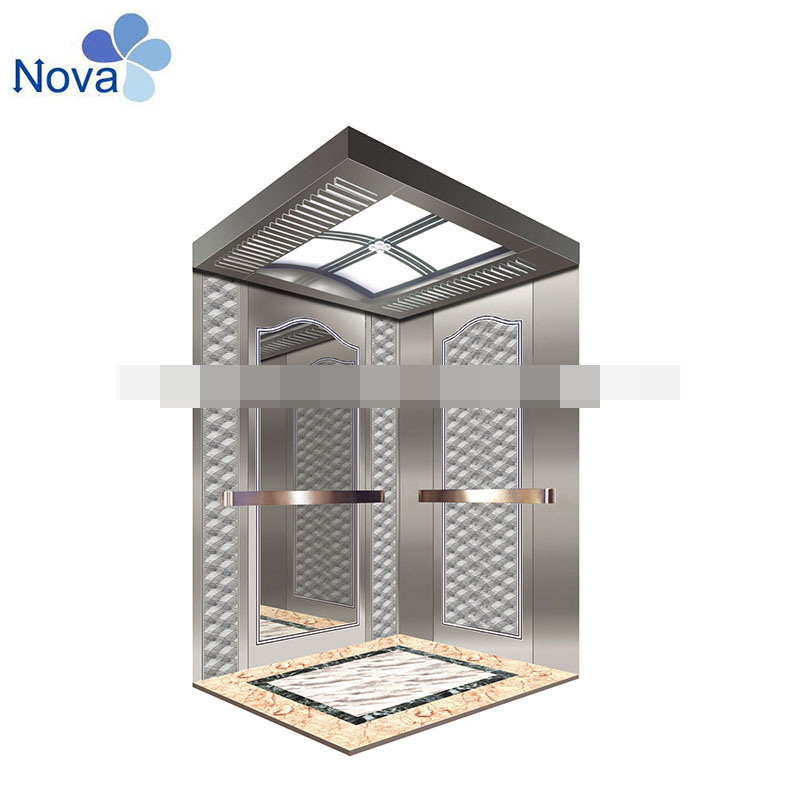

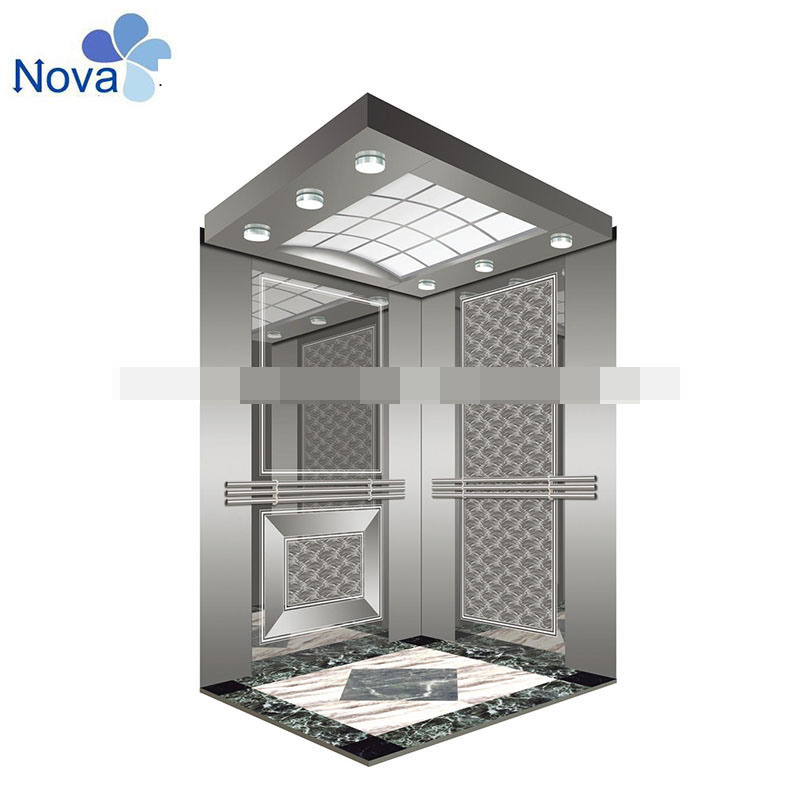

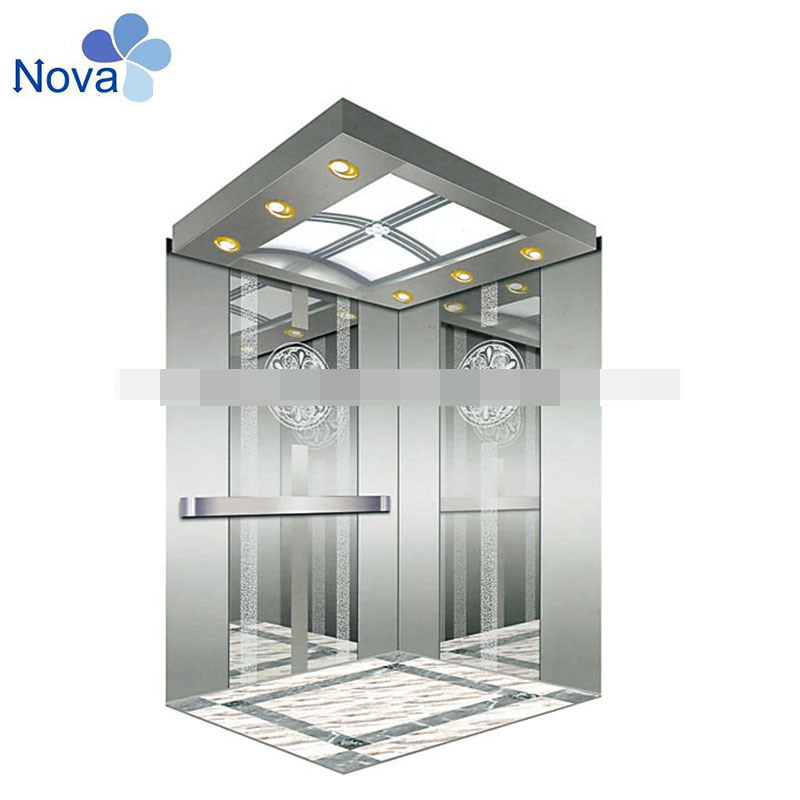

ISO9001 Approved High Performance Passenger Elevator

Share to:

ISO9001 Approved High Performance Passenger Elevator

Availability:

Quantity:



Inquire Add to Basket

Driving Type:
AC Elevator
Capacity:
500-1000kg
Persons:
6 - 10
Speed:
1.00 - 2.00m/s
Control Mode:
Push-Button Control
Position of Computer Room:
up

Product Description

Specification

Load(kg)	Speed (m/s)	Control mode	Internal car size (mm)			Door size (mm)		Hoistway(mm)				Generator room with one elevator (mm)			Generator room with two elevator (mm)
			C.W	C.D	C.H	D.H	H.W	H.W	H.D	P.H	HR.H	MR.W	MR.D	MR.H	MR.W	MR.D	MR.H
450	1	VVVF	1100	1000	2500	800	2100	1850	1700	1500	4500	2500	3300	2500	4500	3330	2500
	1.75									1700	4800
630	1		1400	1100	2500	800	2100	2000	1800	1500	4500	2500	3300	2500	4500	3330	2500
	1.75									1700	4800
800	1		1400	1350	2500	800	2100	2000	2000	1500	4500	2600	3650	2500	4600	3650	2500
	1.75									1700	4800
	2									1900	5100
	2.5									2100	5300
1000	1		1600	1500	2500	900	2100	2200	2200	1500	4500	2800	3850	2500	5600	3850	2500
	1.75									1700	4800
	2									1900	5100
	2.5									2100	5300
1150	1		1800	1500	2500	1100	2100	2400	2200	1500	4500	3200	3850	2500	6400	3750	2500
	1.75									1700	4800
	2									1900	5100
	2.5									2100	5300
1350	1		1900	1600	2500	1100	2100	2500	2300	1500	4500	3250	3950	2500	6500	3950	2500
	1.75									1700	4800
	2									1900	5100
	2.5									2100	5300
1600	1		2000	1750	2500	1100	2100	2600	2500	1500	4500	3250	4150	2500	6500	4150	2500
	1.75									1700	4800
	2									1900	5100
	2.5									2100	5300

ISO9001 Approved High Performance Passenger Elevator

Our Services
1.Help Customers Source in China to Reduce their Cost
To provide customers with whole purchasing plan of elevator parts;
To find out the best conjunction point between quality and price to reduce costs for thrm.

2.How to develop the suppliers for customers
To get customers' need throughing communicating;
To find out three to four customers of thr corresponing parts according to the request of the customers.

3.Customers ask price and get samples from the factories.
To visit the factory(acknowledge the productin ability and quality control process);
Basing on the price,sample and visiting,recommend factory to our customers.

4.How to help customers order from the qualified suppliers.
Follow the process of order;
Send QC to inspect on site before shipping to acknowledge the product quality;
Transfer the response from the customers to suppliers on time, and follow up the improvement.

5.Special package services
Gather sourced parts for dispatch;
Help customers shipping products directly to the working site oversea;
Quick reponse.
