Specification

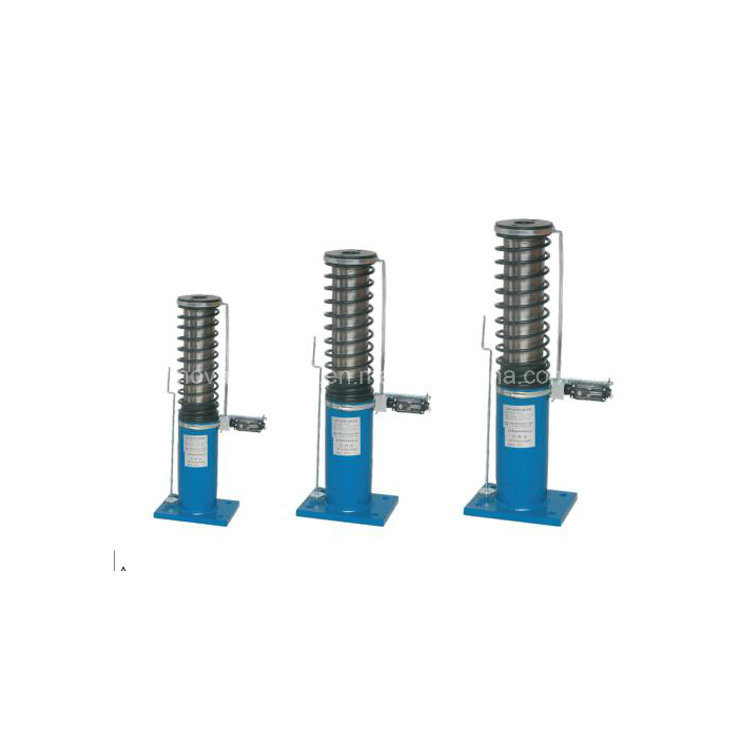

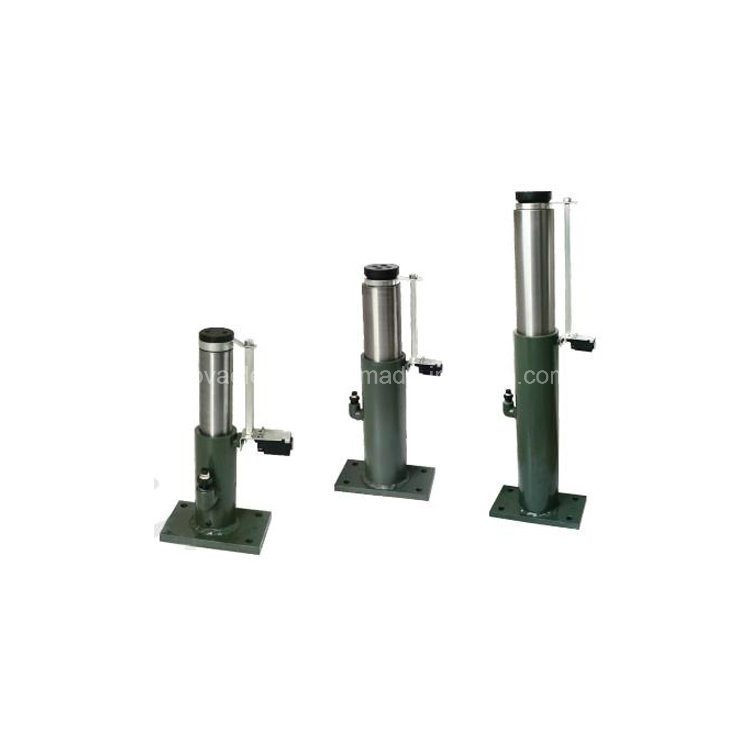

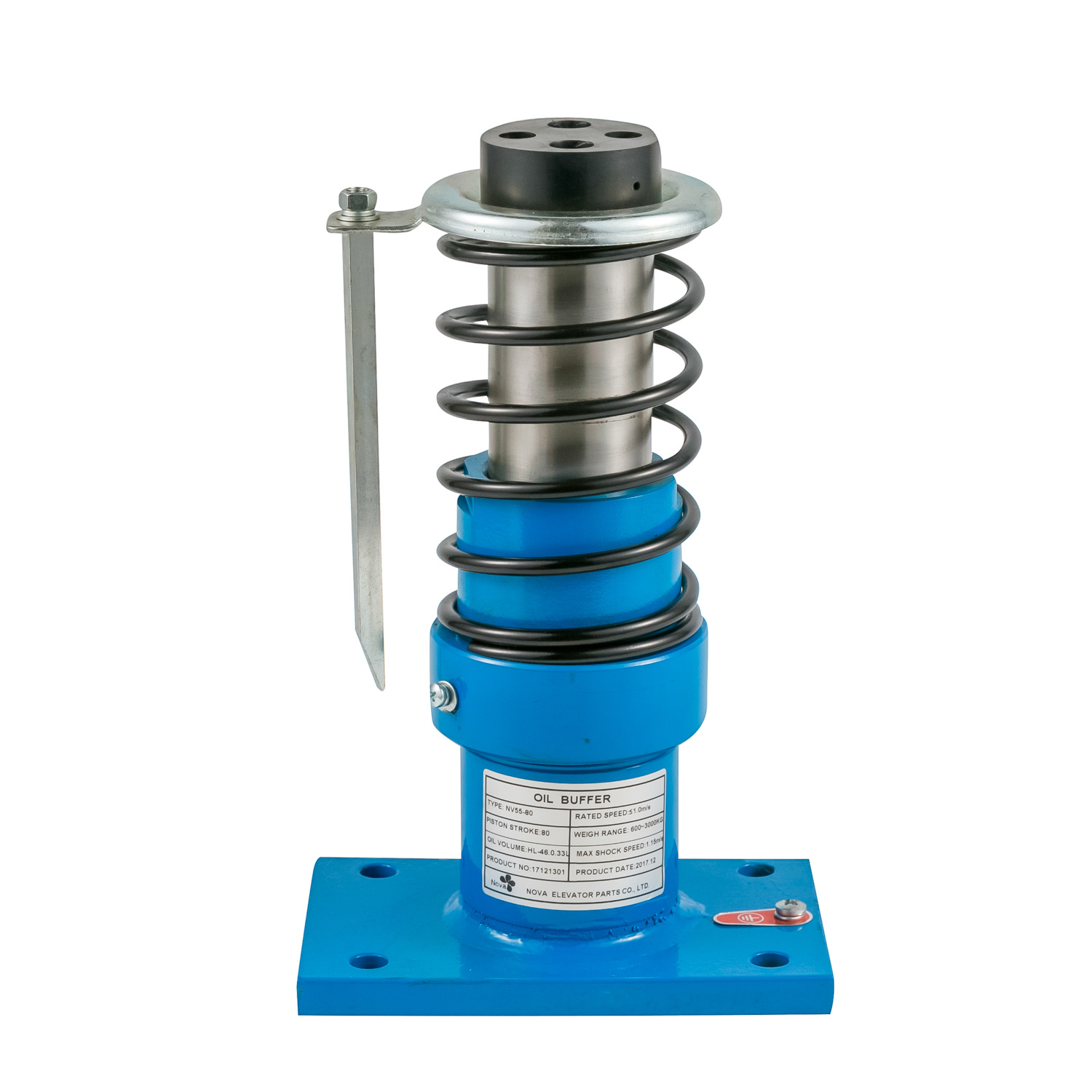

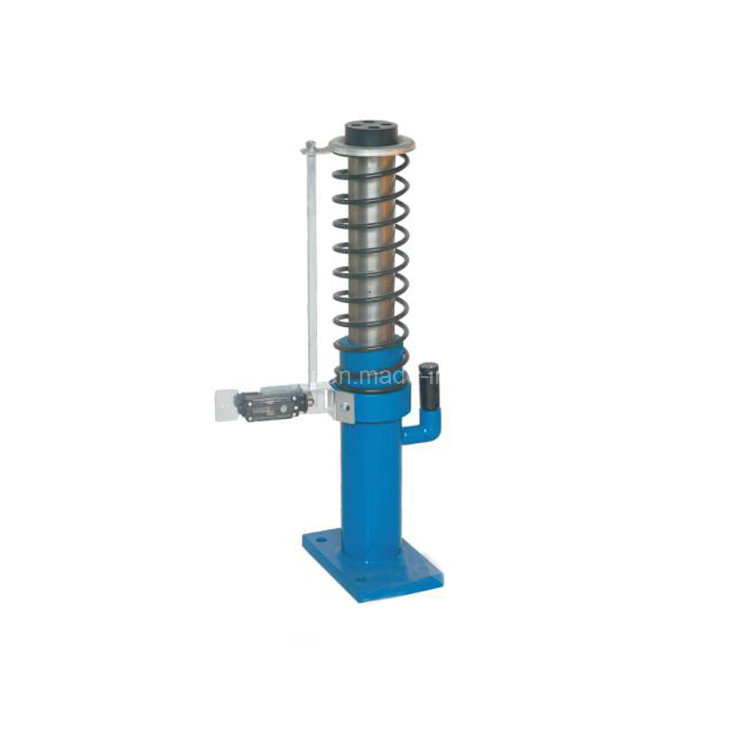

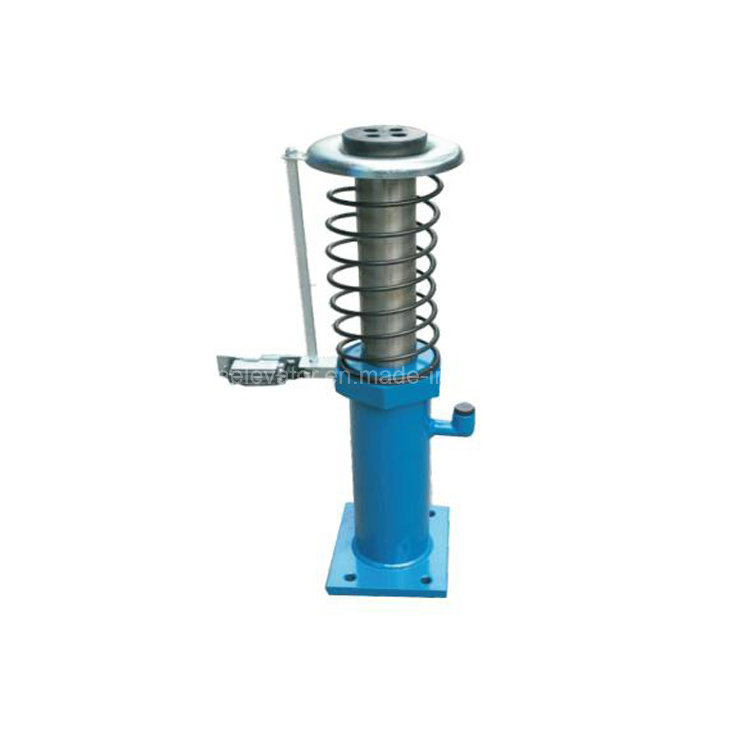

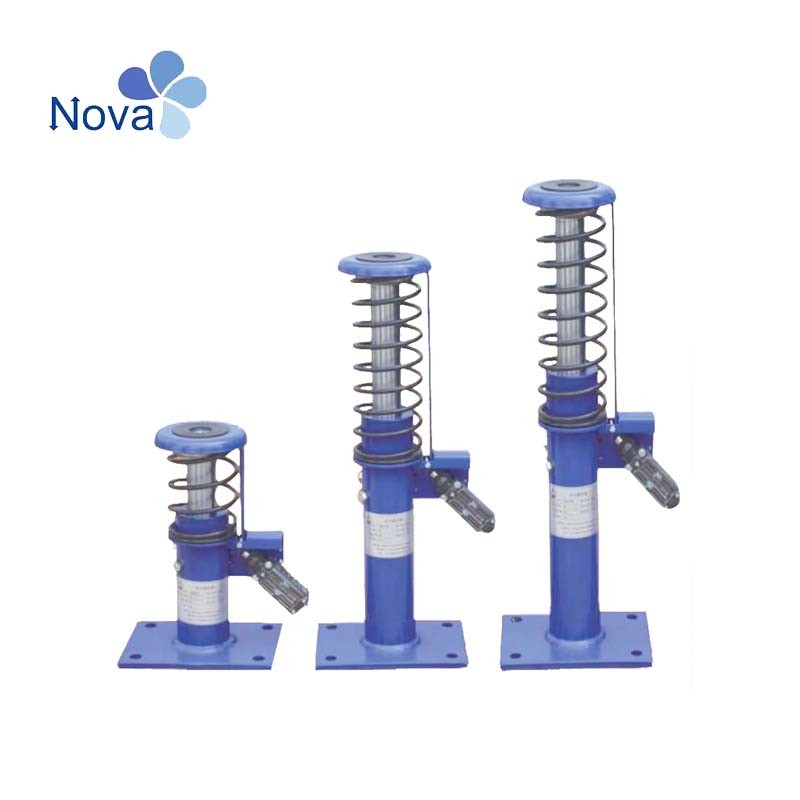

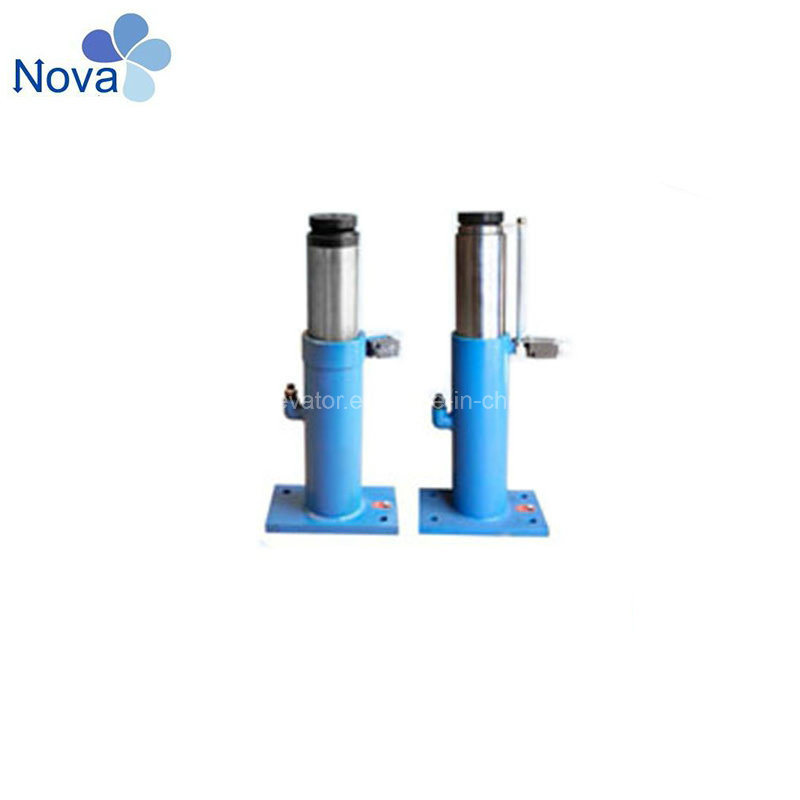

Oil Buffer, Spring Buffer, 1.75m/s Elevator Buffer, Elevator Parts, Lift Parts, Piezas Para Ascensores, 2.0m/s Elevator Oil Buffer, High qualiy Elevator Buffer
| Item | Nominal Speed | Max. Load | Min. Load | Plunger Stroke | Free Height |
| NV55-10 | <=1.0m/s | 2500KGS | 300KGS | 100mm | 388mm |
| NV55-16 | <=1.6m/s | 5300KGS | 700KGS | 175mm | 625mm |
| NV55-20 | <=2.0m/s | 5300KGS | 1300KGS | 290mm | 915mm |
| NV55-65 | <=0.63m/s | 4600KGS | 500KGS | 65mm | 350mm |
| NV55-70 | <=1.0m/s | 2500KGS | 300KGS | 70mm | 305mm |
| NV55-80 | <=1.0m/s | 3000KGS | 600KGS | 80mm | 313mm |
| NV55-210 | <=1.75m/s | 3000KGS | 700KGS | 210mm | 600mm |
| NV55-220 | <=1.75m/s | 2500KGS | 600KGS | 225mm | 780mm |
| NV55-275 | <=2.0m/s | 3800KGS | 800KGS | 275mm | 790mm |
| NV55-425 | <=2.5m/s | 3600KGS | 820KGS | 425mm | 1128mm |
Type | Elevator Parts |
Product name | Good quality safety system spring lift elevator oil buffer for sale |
Certificatation | ISO |
Function | Test |
Brand | NOVA |
Place Of Origin | ShangHai |
Price | Competitive |
Delivery | Fast |
Feature | Low noise |
Guarantee | 12 Months |
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.
Company Information
FAQ
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping≺ice term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
