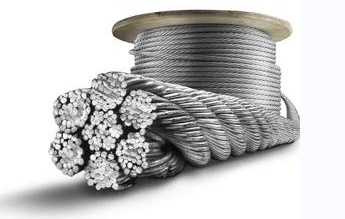

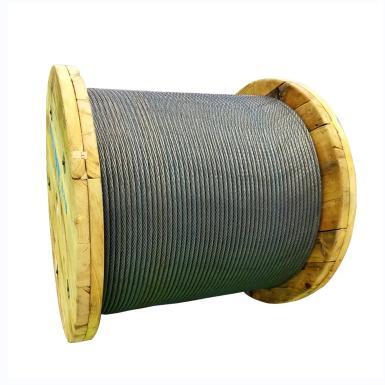

| Product Name | Elevator steel wire rope |
| Material | ss304, ss316, galvanized steel ect. |
| Diameter Range | 6-22mm |
| Types of Cables | Stainless steel wire rope, galvanized wire rope, coated wire rope, special wire rope |
| Surface | Bright, coated, galvanized, ect. |
| Features | Stainless Steel Cables have smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are
free from Lateral / longitudinal cracks, pits and marks etc |

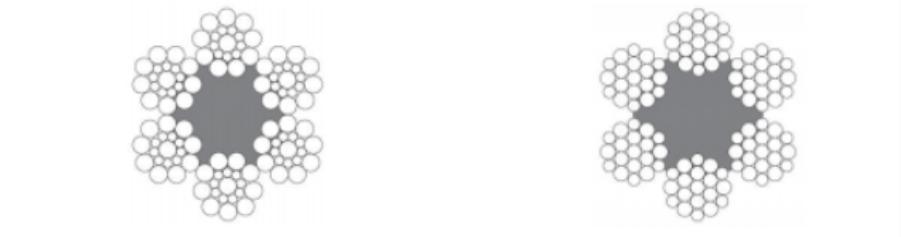

Rope For Over Speed Governor (6*19+PP)
1. This rope is for low speed, low duty elevators 2. If elevator with high speed, please contact us 3. We can also produce as customer's requirements 4. Above specifications just for your reference. Error may occur in actual situation. | Nominal Rope Diameter | 6*19S+PP | Minimum Breaking Load |
| | | Dual Tensile,Mpa | Single Tensile,Mpa |
| | | 1370/1770 | 1570/1770 | 1570 | 1770 |
| mm | Kg/100m | kN | kN | kN | kN |
| 6 | 12.9 | 17.8 | 19.5 | 18.7 | 21 |
| 8 | 23 | 31.7 | 34.6 | 33.2 | 37.4 |
Rope For Traction Machine (8*19+FC)
Natural fiber core(NFC): Suspension ropes for medium duty elevators Elevator speed≤20M/Ss, Building height≤60M | Nominal Rope Diameter | Approx Weight | Minimum Breaking Load |
| Dual Tensile,Mpa | Single Tensile,Mpa |
| 1370/1770 | 1570/1770 | 1570 | 1770 |
| mm | Kg/100m | kN | kN | kN | kN |
| 8 | 21.8 | 28.1 | 30.8 | 29.4 | 33.2 |
| 9 | 27.5 | 35.6 | 38.9 | 37.3 | 42 |
| 10 | 34 | 44 | 48.1 | 46 | 51.9 |
| 11 | 41.1 | 53.2 | 58.1 | 55.7 | 62.8 |
| 12 | 49 | 63.3 | 69.2 | 66.2 | 74.7 |
| 13 | 57.5 | 74.3 | 81.2 | 77.7 | 87.6 |
| 14 | 66.6 | 86.1 | 94.2 | 90.2 | 102 |
| 15 | 76.5 | 98.9 | 108 | 104 | 117 |
| 16 | 87 | 113 | 123 | 118 | 133 |
| 18 | 110 | 142 | 156 | 149 | 168 |
| 19 | 123 | 159 | 173 | 166 | 187 |
| 20 | 136 | 176 | 192 | 184 | 207 |
| 22 | 165 | 213 | 233 | 223 | 251 |

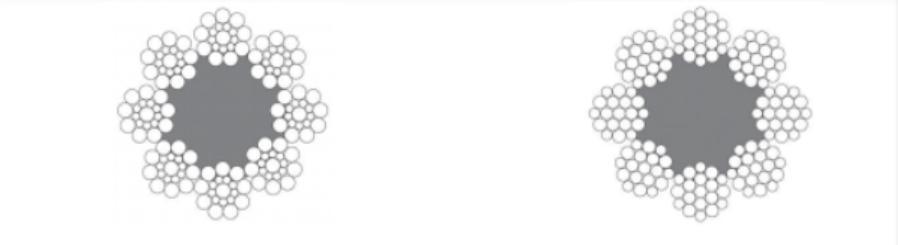

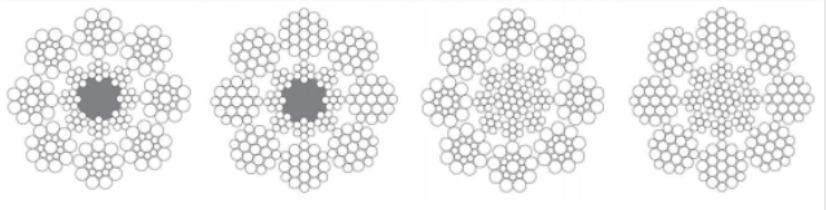

Rope For Traction Machine (8*19+IWRF, 8*19+IWRC)
For IWRC, speed>4.0 m/s, Building height> 100m For TWRF,20< speed≤40m/ s, Building heigh≤100m | Nominal Rope Diameter | Approx Weight | Minimum Breaking Load |
| Dual Tensile,Mpa |
| 1370/1770 | 1570/1770 | 1620/1770 |
| | IWRC | IWRF | IWRC | IWRF | IWRC | IWRF |
| mm | Kg/100m | kN | kN |
| 8 | 26 | 25.9 | 35.8 | 35.2 | 38 | 37.4 |
| 9 | 33 | 32.8 | 45.3 | 44.5 | 48.2 | 47.3 |
| 10 | 40.7 | 40.5 | 55.9 | 55 | 59.5 | 58.5 |
| 11 | 49.2 | 49 | 67.6 | 66.5 | 79.1 | 70.7 |
| 12 | 58.6 | 58.3 | 80.5 | 79.1 | 85.6 | 84.2 |
| 13 | 68.8 | 68.4 | 94.5 | 92.9 | 100 | 98.8 |
| 14 | 79.8 | 79.4 | 110 | 108 | 117 | 115 |
| 15 | 91.6 | 91.1 | 126 | 124 | 134 | 132 |
| 16 | 104 | 104 | 143 | 141 | 152 | 150 |
| 18 | 132 | 131 | 181 | 178 | 193 | 189 |
| 19 | 147 | 146 | 202 | 198 | 215 | 211 |
| 20 | 163 | 162 | 224 | 220 | 238 | 234 |
| 22 | 197 | 196 | 271 | 266 | 283 | 283 |
·Shaft Components includes Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc. ·Elevator Cabin includes Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc. ·Door System includes Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc. ·Safetey Components includes Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc. ·Traction System includes Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc. ·Electrical Components inclueds Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.
1. Price Re:
please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term Re:
T/T or L/C at sight.
3. Installation&Maintaining Re:
We will send installation&maintaining manual along with the elevator. Our sugguestion is to hire a professional local company for installation and future maintaining, once you need any technical assistant from us, just don't hesitate to contact us by mail or phone. Technician will be sent to the job site if necessary.
4. Shipping≺ice term Re:
Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
