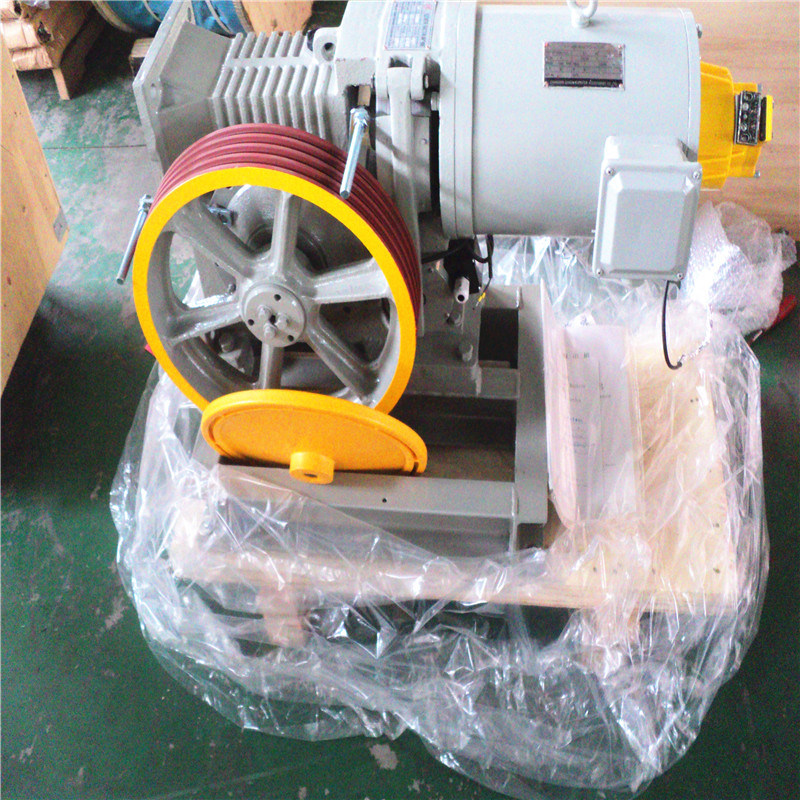

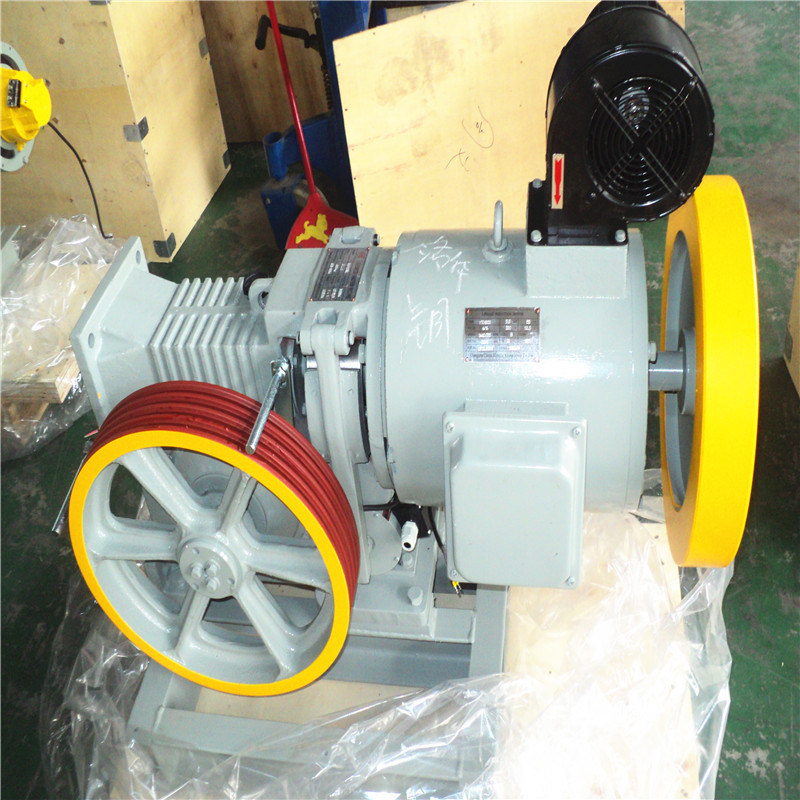

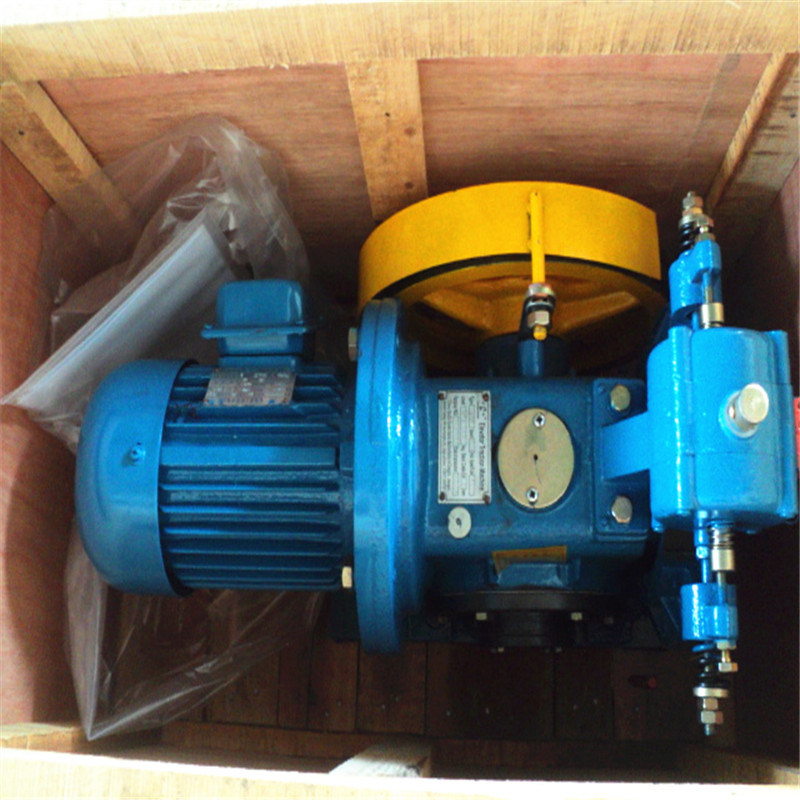

Elevator Traction Machine Motor with Roping 1: 1

Share to:

Elevator Traction Machine Motor with Roping 1: 1

Availability:

Quantity:



Inquire Add to Basket

Driving Type:
AC Elevator
Capacity:
320-1600kg
Persons:
4-21 Persons
Speed:
0.5-4.0m/S
Control Mode:
Collective Selective Control
Position of Computer Room:
Mr or Mrl

Product Description

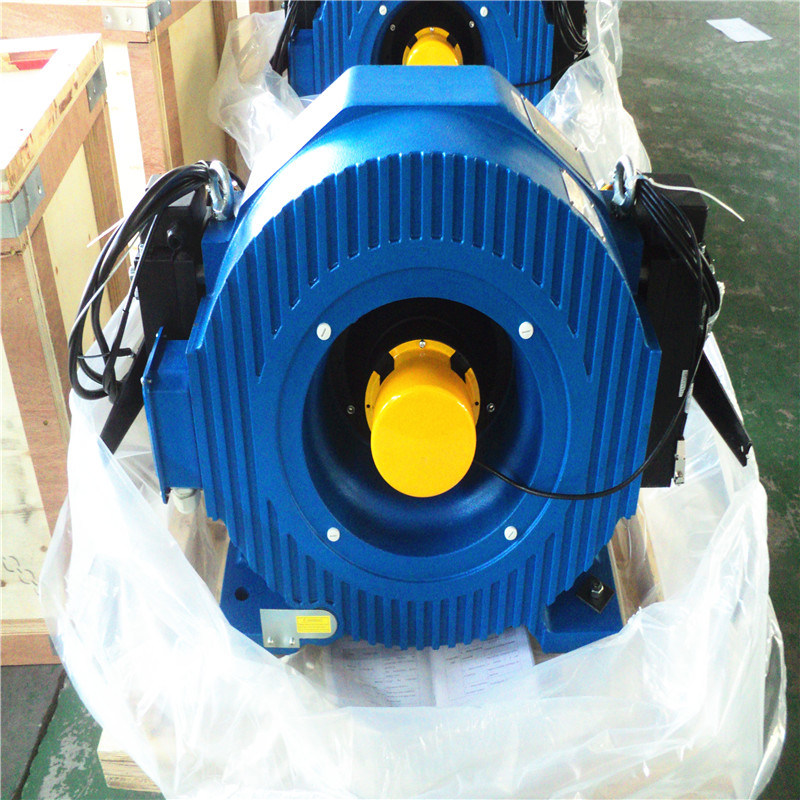

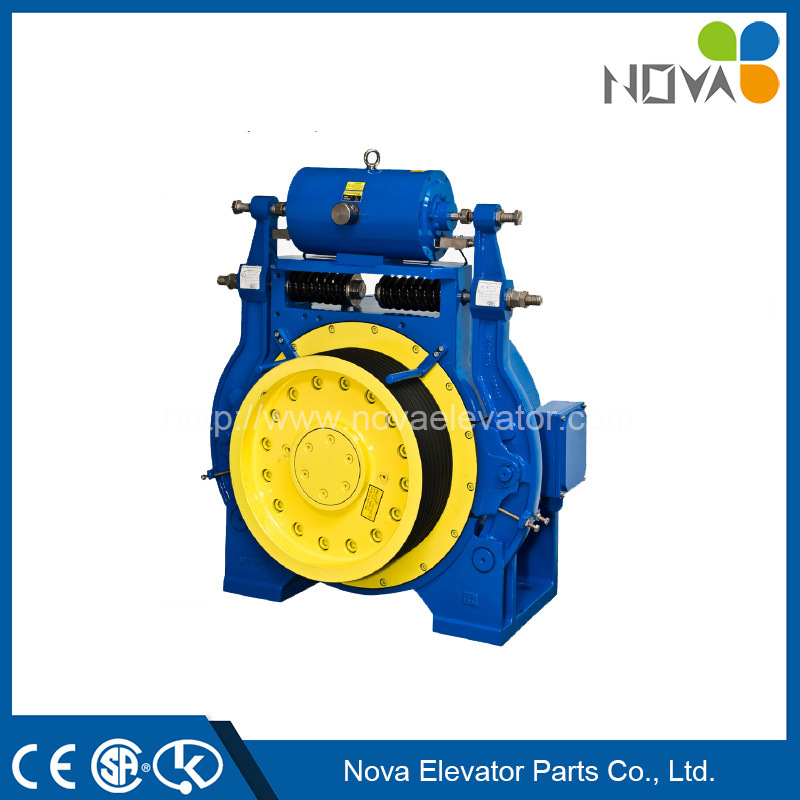

Gearless Traction Machine

NV41T-SWTY Series(Roping=1:1)

Nova Code	Capacity(KGS)	Speed(m/s)	Power(KW)	Traction Sheave(mm)	Roping	Voltage(V)	Travel Height
NV41T-SWTY1	320	1	2.2	Φ4004Φ8*12	1:1	AC380V(Stanard) AC220V(Optional)	<=80M
		1.6	3.4	Φ4004Φ8*12
		1.75	3.8	Φ4004Φ8*12
	450	1	2.9	Φ4005Φ10*16
		1.6	4.6	Φ4005Φ10*16
		1.75	5	Φ4005Φ10*16
	630	1	4	Φ4006Φ10*16
		1.6	6.4	Φ4006Φ10*16
		1.75	7.2	Φ4006Φ10*16
	800	1	5.1	Φ4008Φ10*16
		1.6	8.1	Φ4008Φ10*16
		1.75	8.9	Φ4008Φ10*16
		2	10.1	Φ4008Φ10*16
		2.5	12.7	Φ4008Φ10*16
NV41T-SWTY2	1000	1	6.7	Φ5206Φ13*20
		1.6	10.8	Φ5206Φ13*20
		1.75	11.8	Φ5206Φ13*20
		2	13.4	Φ5206Φ13*20
		2.5	16.8	Φ5206Φ13*20
	1150	1	7.3	Φ5207Φ13*20
		1.6	11.7	Φ5207Φ13*20
		1.75	12.8	Φ5207Φ13*20
		2	14.6	Φ5207Φ13*20
		2.5	18.2	Φ5207Φ13*20
	1250	1	7.9	Φ5207Φ13*20
		1.6	12.7	Φ5207Φ13*20
		1.75	13.9	Φ5207Φ13*20
		2	15.5	Φ5207Φ13*20
		2.5	19.8	Φ5207Φ13*20
	1350	1	8.6	Φ5208Φ13*20
		1.6	13.7	Φ5208Φ13*20
		1.75	15	Φ5208Φ13*20
		2	17.1	Φ5208Φ13*20
		2.5	21.4	Φ5208Φ13*20
	1600	1	10.1	Φ5209Φ13*20
		1.6	16.2	Φ5209Φ13*20
		1.75	17.8	Φ5209Φ13*20
		2	20.3	Φ5209Φ13*20
		2.5	25.4	Φ5209Φ13*20

Nova welcomes you to visit our website or email us to get traction machine preliminary inquiry sheet for your selection to meet your specific requirements.
