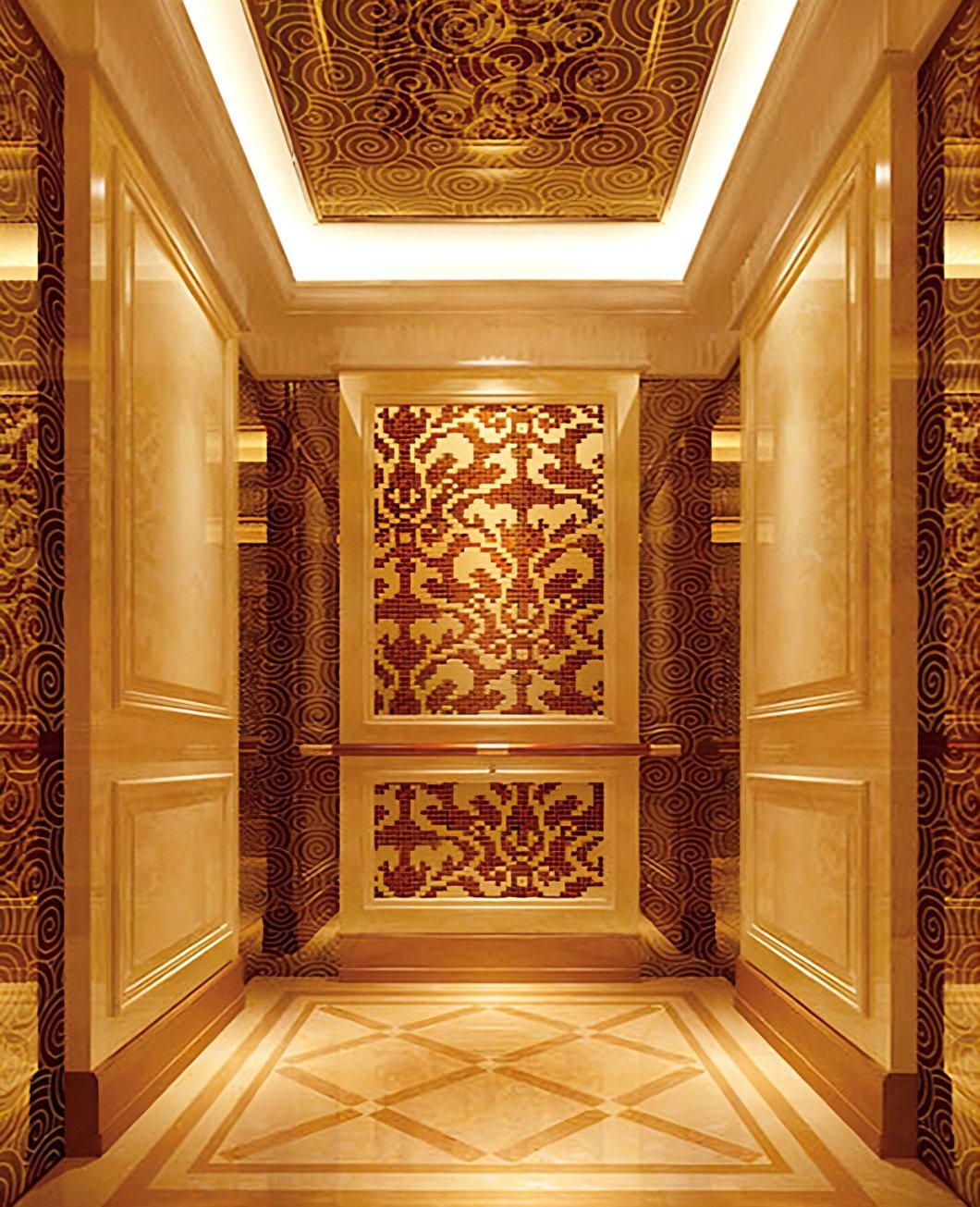

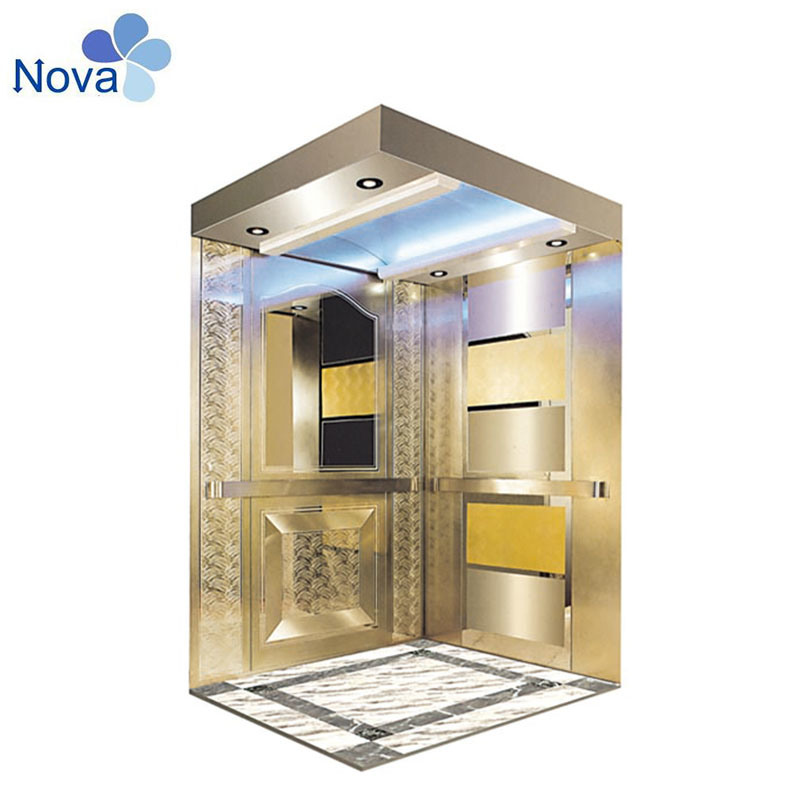

Elevator Stainless Steel Material Passenger Small Lift Elevator Finished Elevator Cabin

Elevator stainless steel material passenger small lift elevator finished elevator cabin

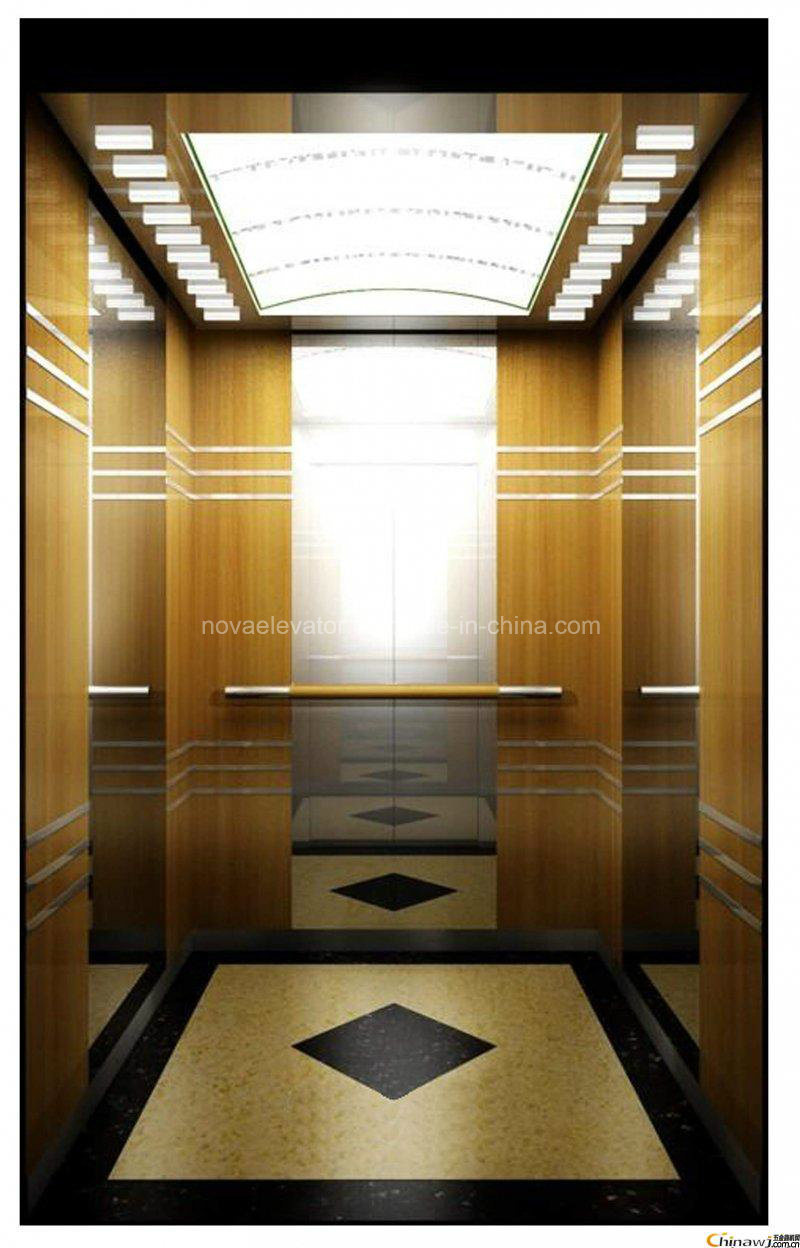

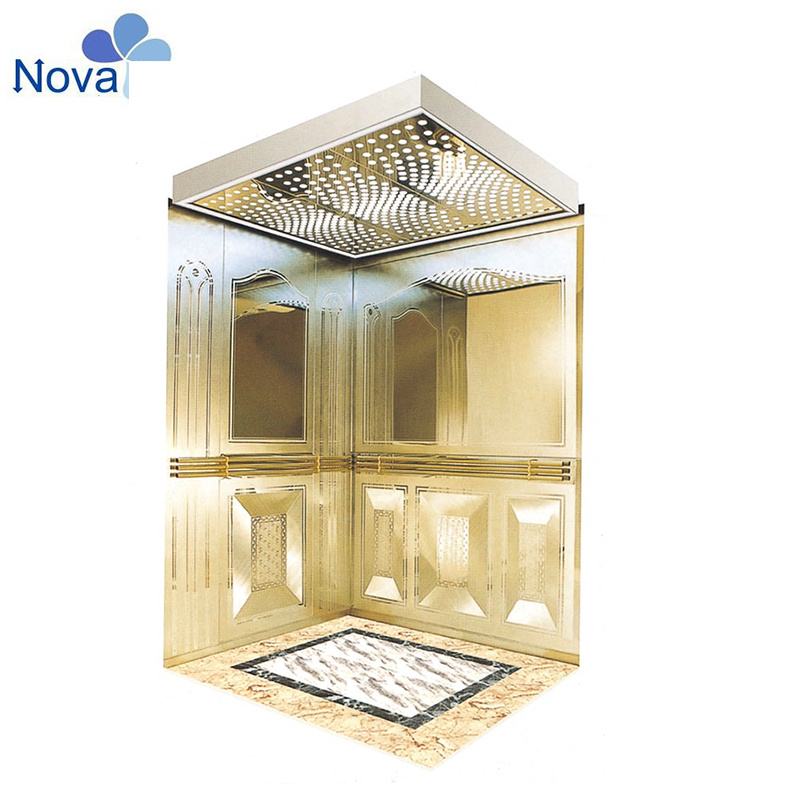

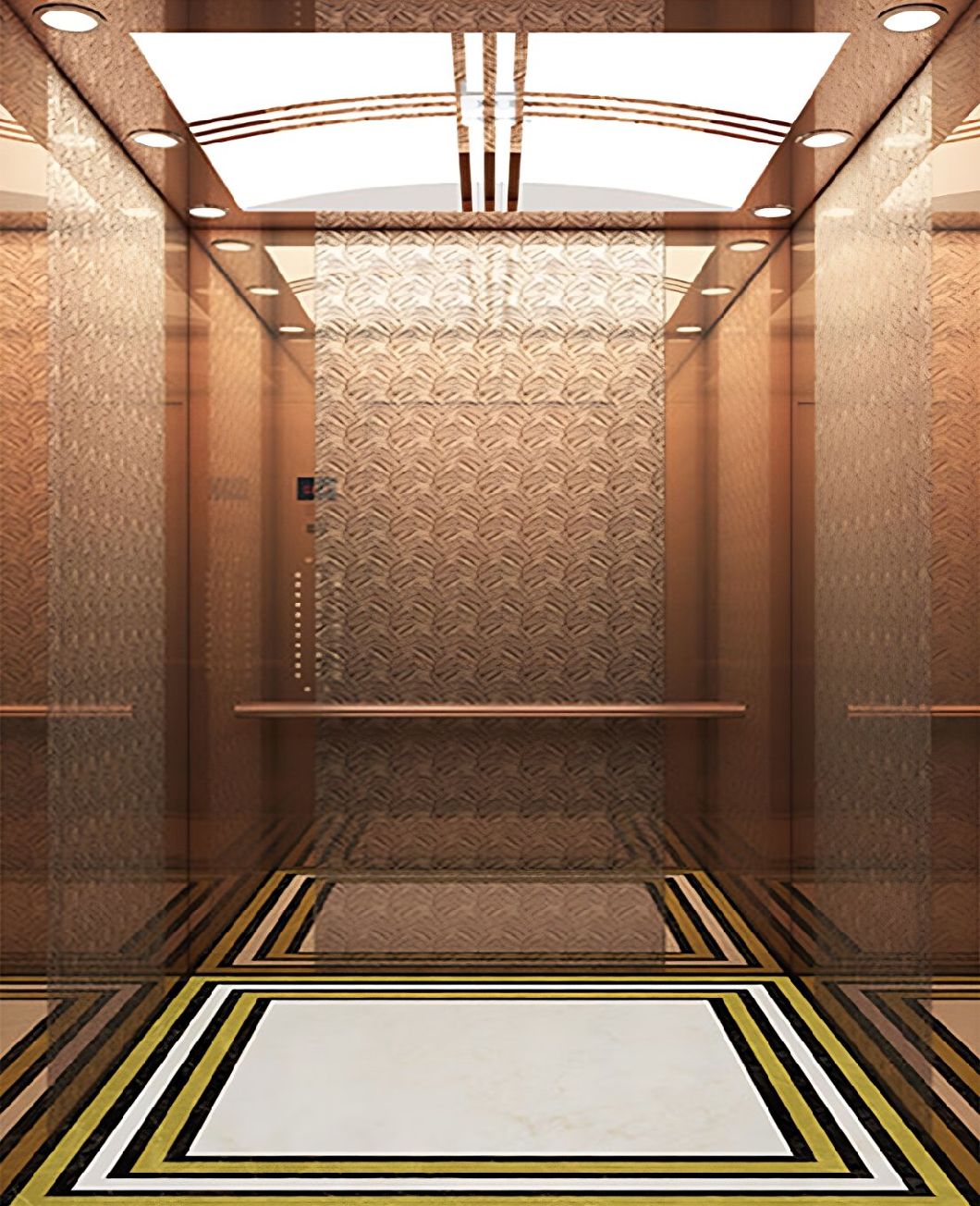

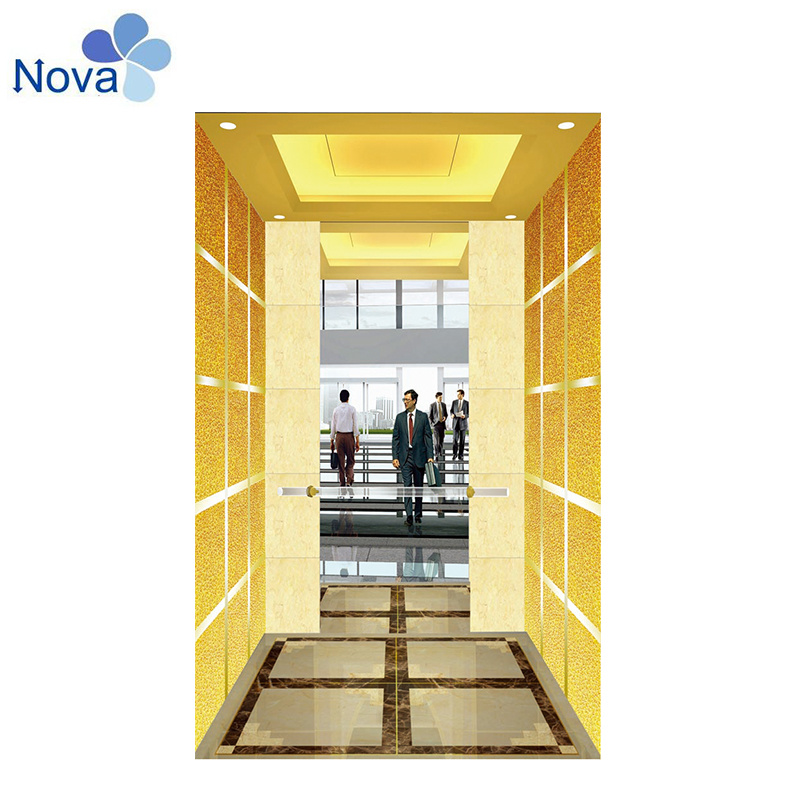

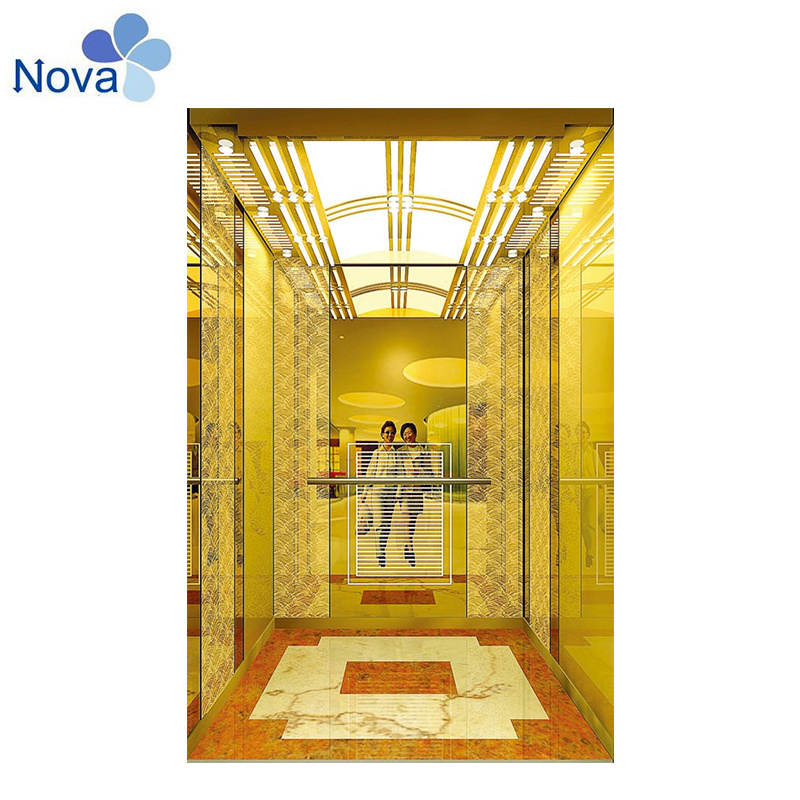

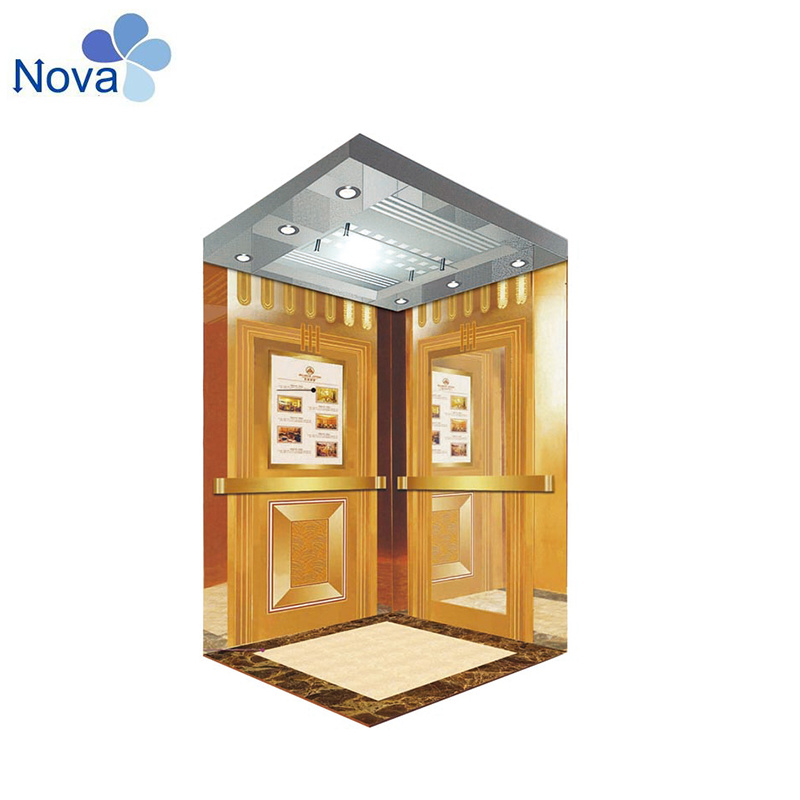

1. We have different kinds of elevator cabin and panel as below: 2. Cabin Material : Painted, Hairline Stainless Steel, Mirror Stainless Steel or Etching Stainless Steel.
3. Ceiling , handrail and floor can be opitonal.
4. Nova standard cabin includes several assemblies listed as below:
1). Car Wall: Back Wall + Left Wall + Side Wall + Front Wall
2) Car Celling : LED
3) Car Floor : PVC or Marble
4) Handrail : Round or Square
5) Guide Shoe (4 PCS ) : Sliding Guide Shoe or Rolling Guide Shoe

5. Nova standard car frame includes several assemblies listed as below:
1) Cross Beam(1 PC), Upright(2 PCS)and Bottom Beam(1 PC)
2) Limit Switch Touching Plate (1 PC)
3) Car Side Pulling Rod (4 PCS)
4) Oil Can (2 PCS)
5) Guide Shoes (4 PCS)
6) Lifting Pulling Rod For Safety Gear (1 PC or 2 PCS)
7) Safety Gear (1 Pair)
8) Safety Gear Linkage (1 PC)
9.)Safety Gear Switch (1 PC)

6. Besides, we also supply extra assemblies as below:
10) Suppoting Bracket
11) Load Weighing Device
12) Buffer Striking End
13) Suspension Device (rope suspension or pulley sheave)

Please feel free to contact me if you have any new inquiry.
