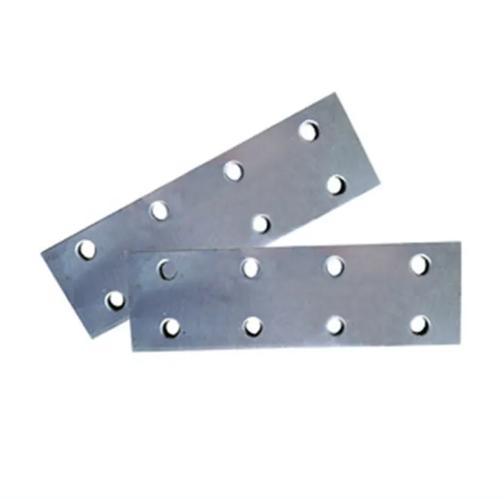

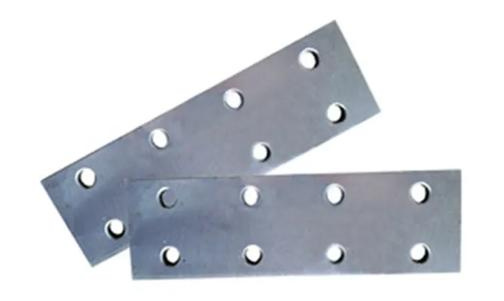

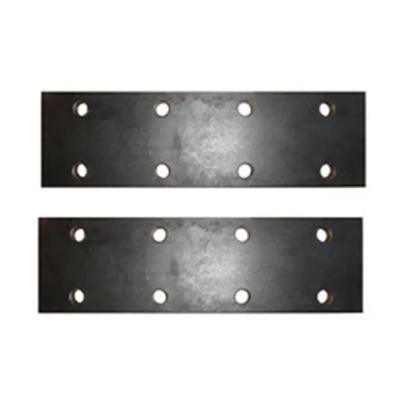

Elevator Shaft Parts T89/B T90 T114/B Tk5a Guide Rail Fishplates

Share to:

Elevator Shaft Parts T89/B T90 T114/B Tk5a Guide Rail Fishplates

Availability:

Quantity:



Inquire Add to Basket

After-sales Service:
1 Year
Warranty:
1 Year
Driving Type:
AC Elevator
Capacity:
500-1000kg
Persons:
6 - 10
Speed:
1.00 - 2.00m/s

Product Description

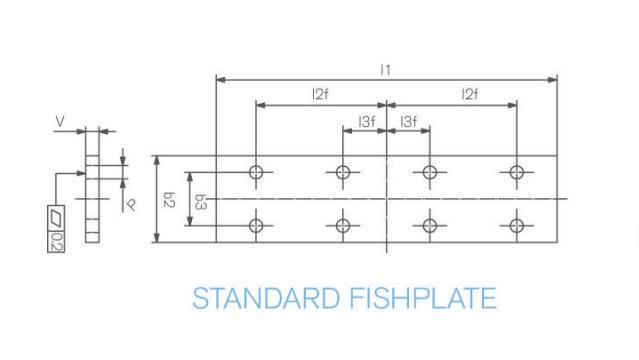

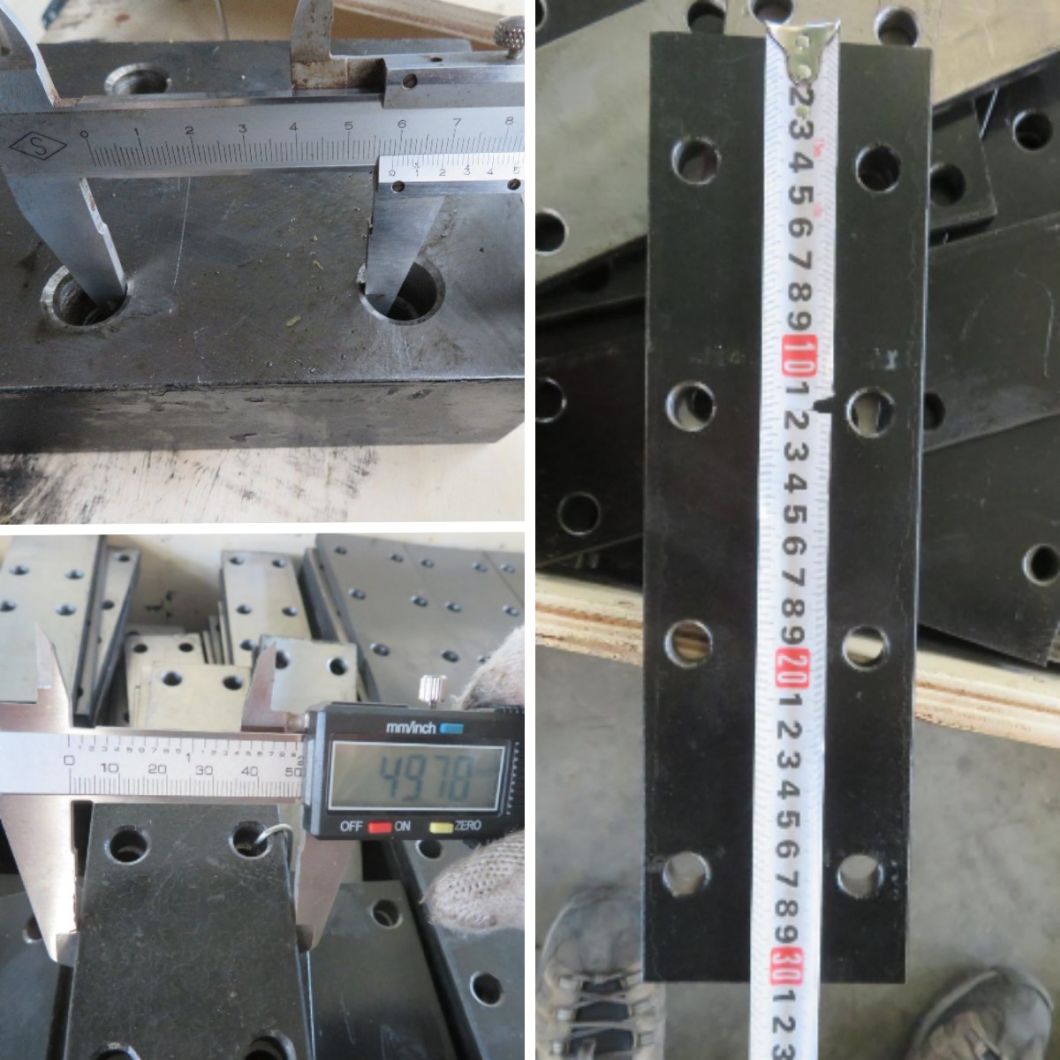

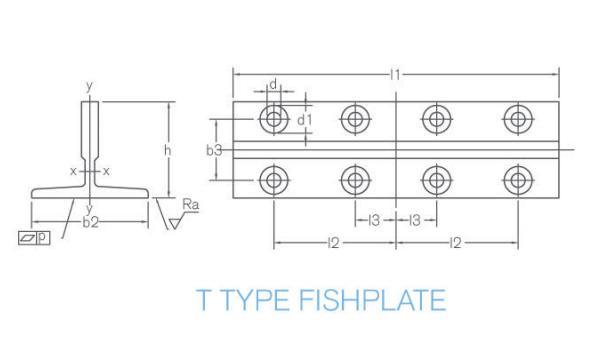

Suitable Rail Model	d	l1	l2f	l3f	b2	b3	vmin	Bolt
T45/A	9	160	65	15	50	25	8	M8x25
T50/A	9	200	75	25	50	30	8	M8x25
T70/A	13	250	105	25	70	42	10	M12x35
T70-1/B	13	250	105	25	70	42	10	M12x35
T75-3/B	13	250	105	25	70	42	10	M12x35
T78/B	13	250	105	25	70	42	10	M12x35
T82/B	13	216	80	26	80	50.8	10	M12x35
T89/B	13	305	114.3	38.1	90	57.2	13	M12x35
T90/B	13	305	114.3	38.1	90	57.2	13	M12x35
T114/B	17	305	114.3	38.1	120	70	17	M16x50
T127-1/B	17	305	114.3	38.1	130	79.4	17	M16x50
T127-2/B	17	305	114.3	38.1	130	79.4	17	M16x50
T140-1/B	21	380	152.4	31.8	140	92.1	28	M20x65
T140-2/B	21	380	152.4	31.8	140	92.1	28	M20x65
T140-3/B	21	380	152.4	31.8	140	92.1	38	M20x80
Tolerances	-	+3	±0.2	±0.2	-	±0.2	+3	-
Tolerances	-	0	±0.2	±0.2	-	±0.2	0	-

Suitable Rail Model	d	d1	b2	b3	l1	l2	l3	h
Type	mm	mm	mm	mm	mm	mm	mm	mm
T75-3/B	13	26	75	43	240	90	30	61
T78/B	13	26	78	43	240	90	30	55
T82/B	13	26	82.5	50.8	216	81	27	66.6
T89/B	13	26	89	57.2	305	114.3	38.1	61
T90/B	13	26	90	57.2	305	114.3	38.1	74
T114/B	17	33	114	79.4	305	114.3	38.1	88
T127-1/B	17	33	127	79.4	305	114.3	38.1	88
T127-2/B	17	33	127	79.4	305	114.3	38.1	88
T140-1/B	21	40	140	92.1	380	152.4	31.8	107
T140-2/B	21	40	140	92.1	380	152.4	31.8	101
T140-3/B	21	40	140	92.1	380	152.4	31.8	126
Tolerances	-	-	±1.5	±0.2	±1.5	±0.2	±0.2	±0.1

Suitable Rail Model	wxx	wyy	weight	bolt
Type	cm³	cm³	kg/pc	size
T75-3/B	9.29	7.06	2.1	M12x35
T78/B	7.56	6.71	1.8	M12x35
T82/B	10.20	7.40	1.36	M12x35
T89/B	14.25	11.80	3.8	M12x35
T90/B	20.87	11.80	4.1	M12x35
T114/B	29.70	19.10	5.0	M16x50
T127-1/B	30.40	23.40	5.4	M16x50
T127-2/B	30.90	36.20	6.9	M16x50
T140-1/B	53.40	44.30	10.5	M20x65
T140-2/B	68.00	51.20	12.9	M20x65
T140-3/B	114.60	69.40	17.5	M20x65
Tolerances	-	-	-	-
