Elevator Safety Devices Elevator Over Speed Control Governor

Availability:

Quantity:



Inquire Add to Basket

After-sales Service:
1year
Warranty:
Online
Driving Type:
AC Elevator
Capacity:
450-1600kgs
Persons:
6-21 Persons
Speed:
0.5-4.0m/S

Product Description

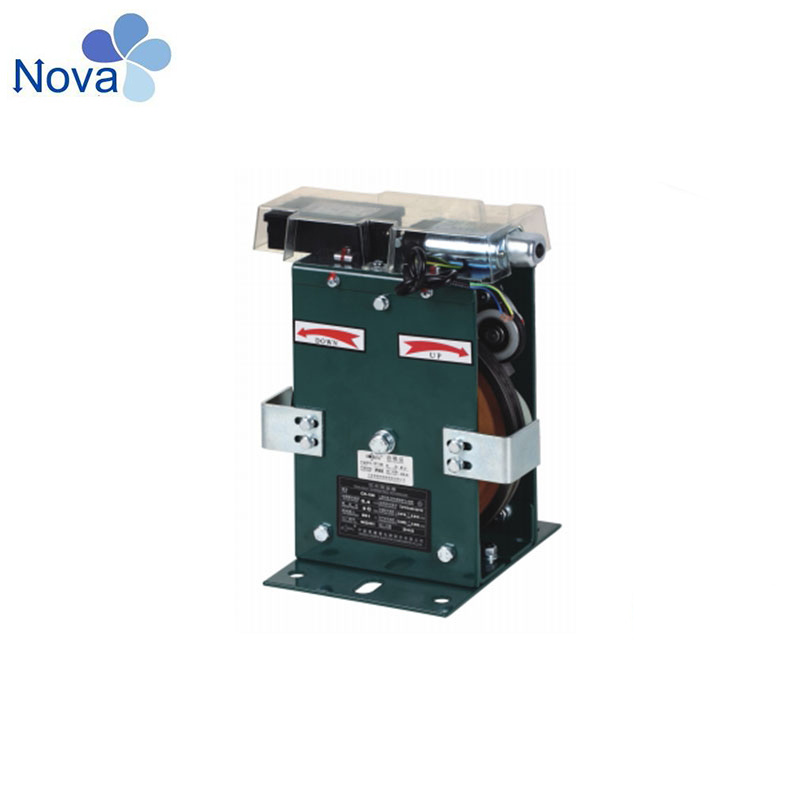

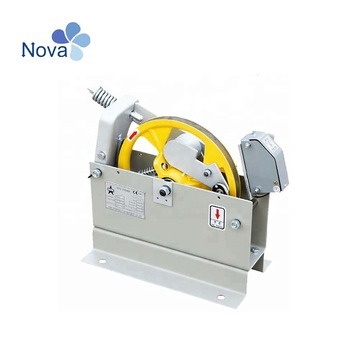

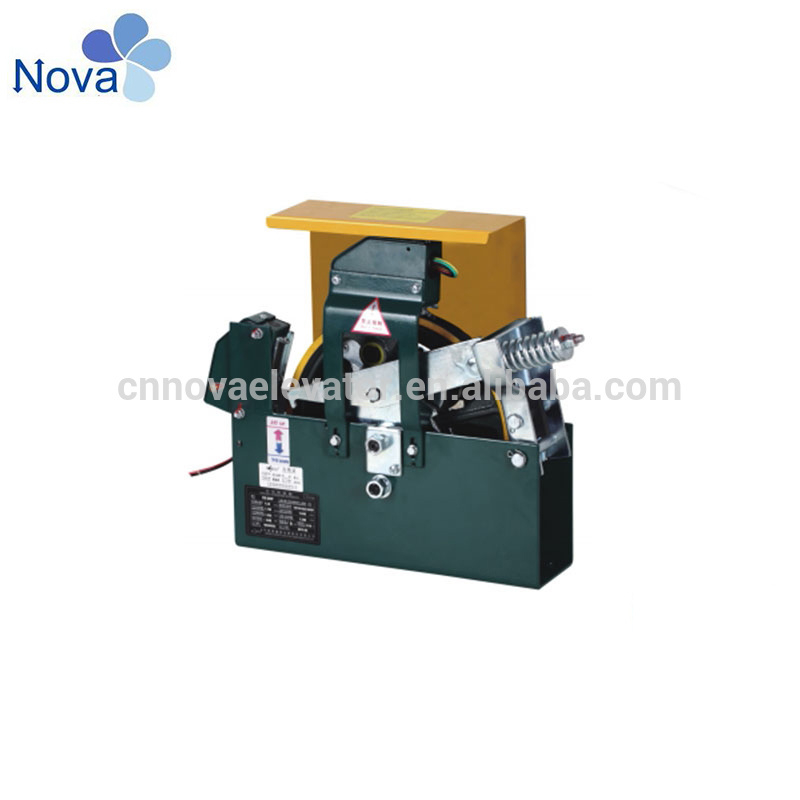

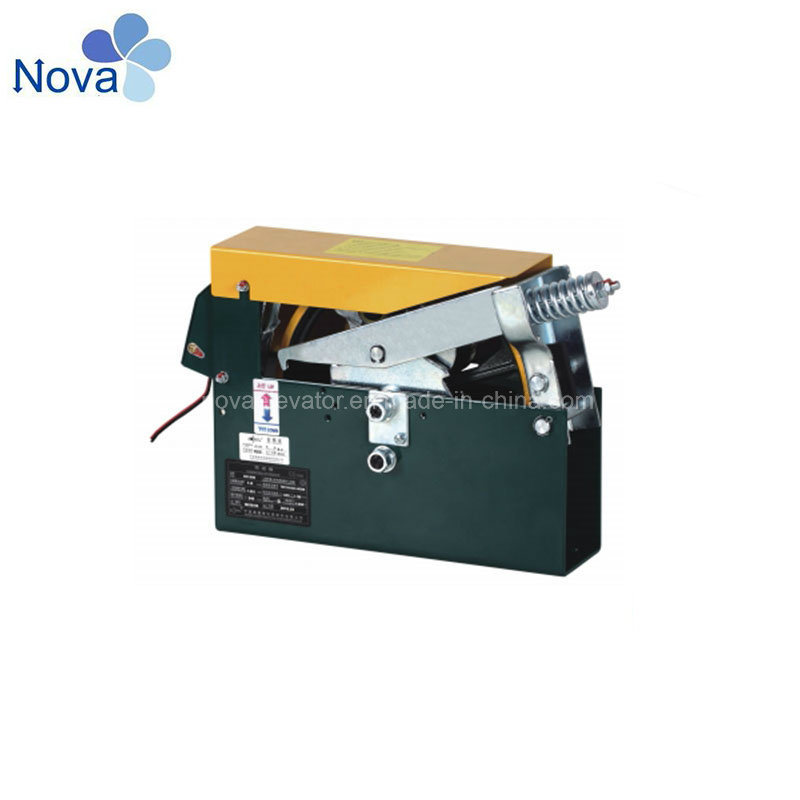

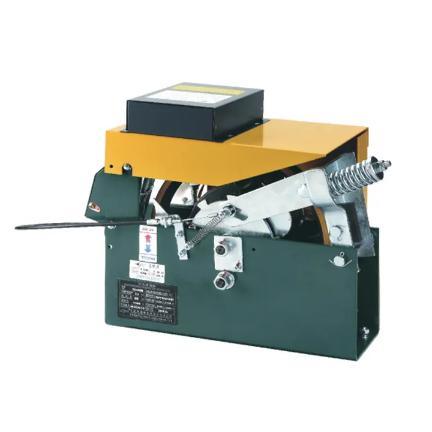

Conventional overspeed speed governor price

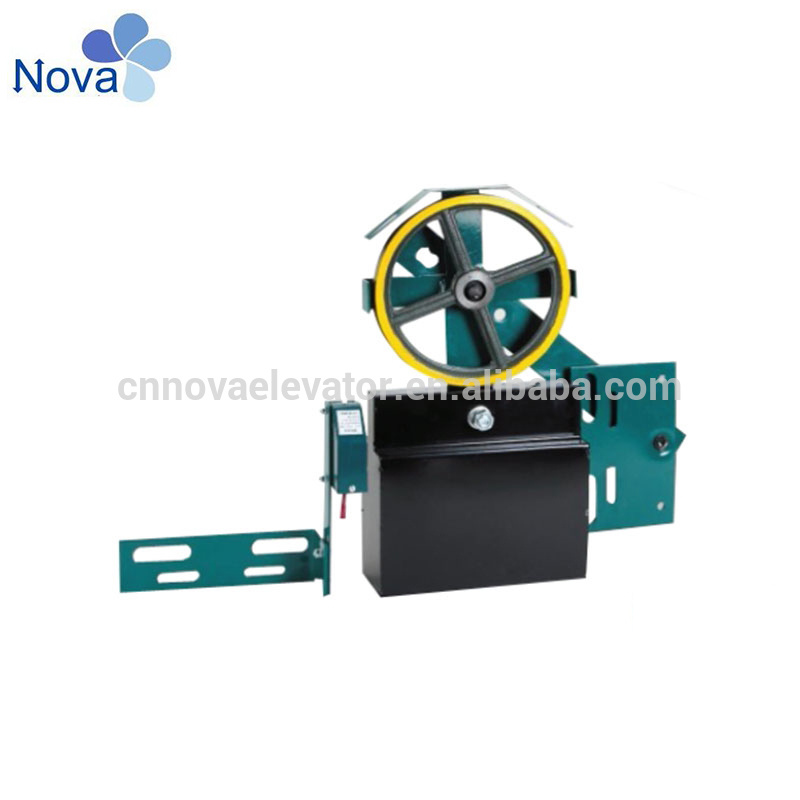

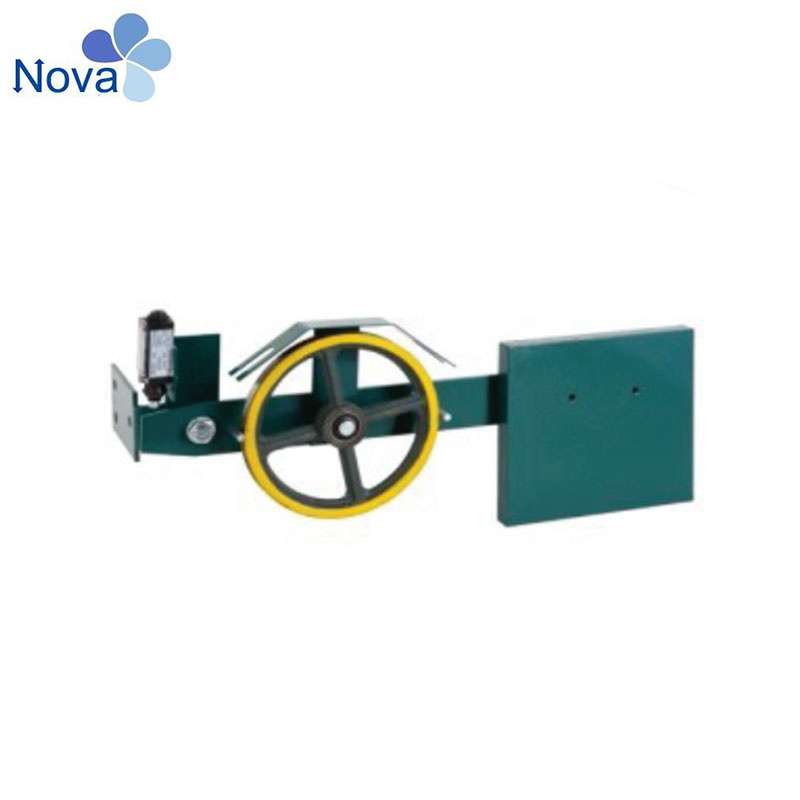

Overspeed governor is one of the safety control units of elevator safety protection system. During running, when the car over-speed or even risk to fall while other protection devices do not work, the over-speed governor and safety gear or up-going protective device will generate linkage protection to stop the car. Governor generally be installed inside the elevator machine room or directly installed on the bearing beam, machine roomless governor will be installed on the guide rail or bottom hole on the ground.

Our company currently offers various series of over-speed governor specifications, applicable to different elevator layouts, such as conventional return and non-return machine room governor; machine roomless governor etc. Customers need to learn its function and parameters in accordance with its specification and type. (For details, pls study the corresponding type test report) to ensure its performance matching with the elevator actual state.

Nova Code	Application	Production Type	Rope Sheave Diameter(mm)	Governor Rope(mm)	Tension(N)	Control Position
NV52-240	MR	Single direction	Φ240	Φ6,Φ8,Φ6.3	800~1500	Cabin/Counterweight
NV52-240A	MRL	Single direction	Φ240	Φ6,Φ8,Φ6.3	800~1500	Cabin/Counterweight
NV52-240B	MR	Double direction	Φ240	Φ6,Φ8,Φ6.3	800~1500	Cabin/Counterweight
NV52-240E	MRL	Double direction	Φ240	Φ6,Φ8,Φ6.3	800~1500	Cabin/Counterweight
NV52-240F	MR	Double direction	Φ240	Φ6,Φ8,Φ6.3	800~1500	Cabin/Counterweight
NV52-187	MRL	Double direction	Φ200,Φ240	Φ6,Φ6.3	>=500	Cabin/Counterweight
			Φ240	Φ6,Φ8,Φ6.3
			Φ300	Φ8
NV52-186	MRL	Double direction	Φ200	Φ6	>=500	Cabin/Counterweight
NV52-186A	MRL	Double direction	Φ150	Φ6	>=500	Cabin/Counterweight
NV52-208	MRL	Single direction	Φ200	Φ6	800~1500	Cabin/Counterweight
NV52-208A	MRL	Single direction	Φ200	Φ6	800~1500	Cabin/Counterweight
NV52-001	MR	Single direction	Φ280	Φ8	>=500	Cabin/Counterweight

Elevator Safety Devices Elevator Over Speed Control Governor

Packaging & Shipping

Elevator Safety Devices Elevator Over Speed Control Governor
Our Services

Elevator Safety Devices Elevator Over Speed Control Governor

FAQ

1. Price
Re: please send us inquiry from Made in China, we will quote to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.

2. Payment term
Re: T/T or L/C at sight.

3. Installation&Maintaining
Re: We will send installation&maintaining manual along with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.

4. Shipping≺ice term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
