| Quantity: | |
|---|---|
AC
500-1000kg
6 - 10
1.00 - 2.00m/s
Sliding
Rolling

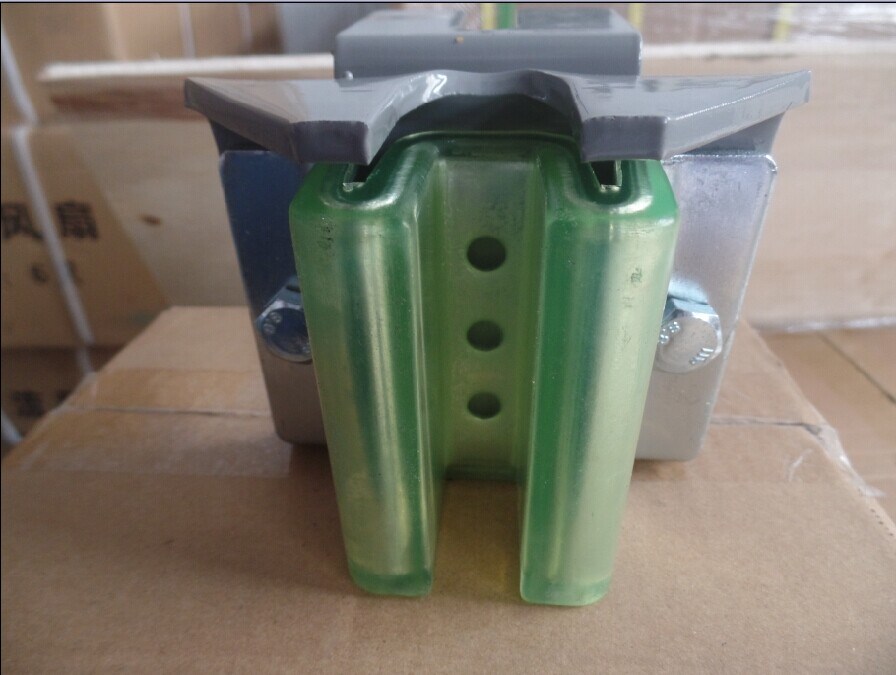

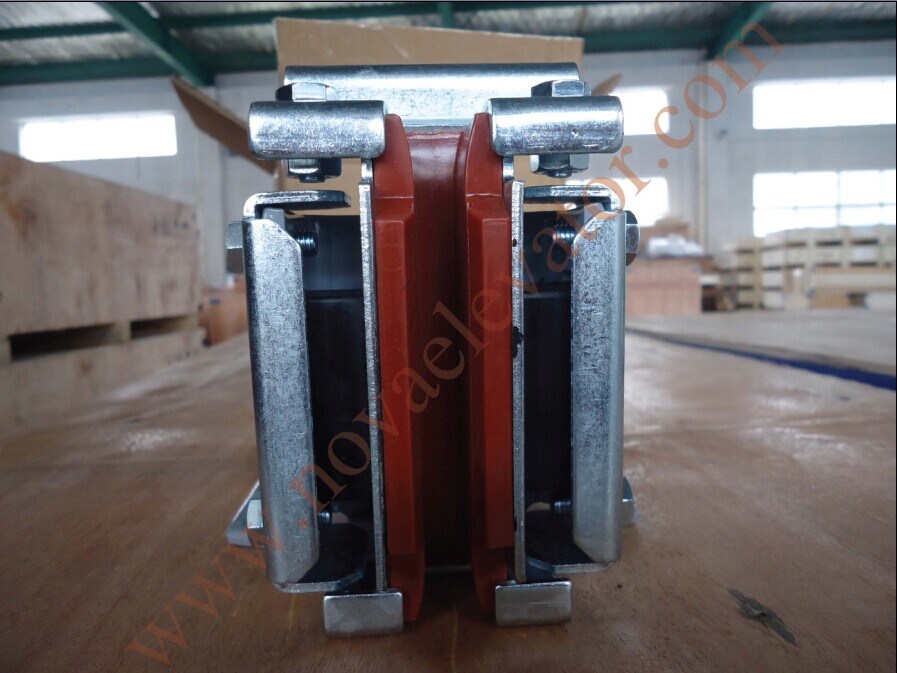

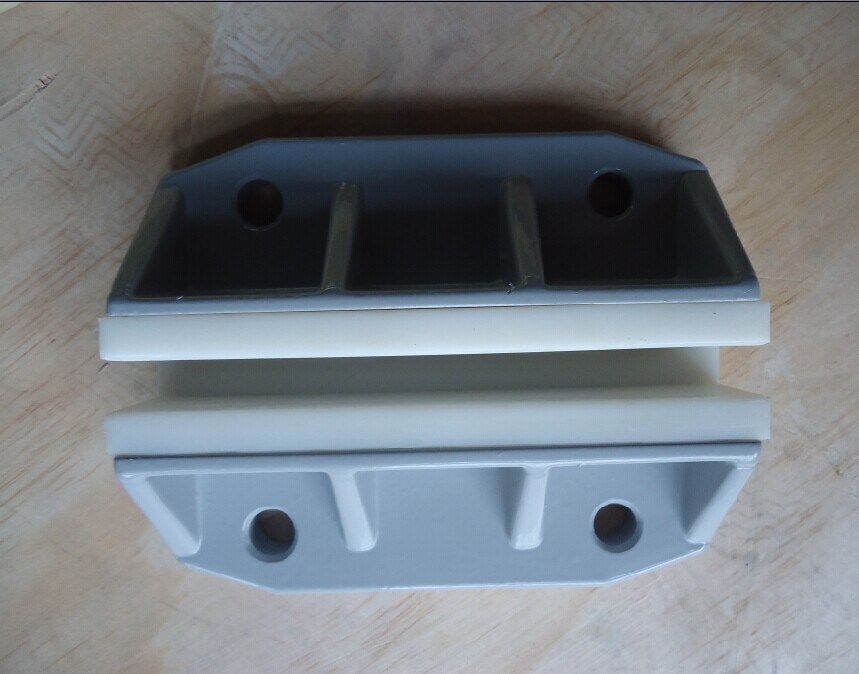

| Nova Code | Application | Rated Speed(m/s) | Width of guide rail(mm) |
| NV25S-M001 | For Cabin | ≤1.75 | 9.10.16 |
| NV25S-M002 | For Cabin | ≤2.5 | 10.16 |
| NV25S-S001 | For Cabin | ≤2.0 | 10.16 |
| NV25S-S002 | For Cabin | ≤2.0 | 9.10.16 |
| NV25S-S003 | For Cabin | ≤1.0 | 10.16 |
| NV25S-H002 | For Cabin | ≤1.75 | 10.16 |
| NV25S-D001 | For Cabin | ≤2.0 | 10.16 |
| NV25S-D004 | For Cabin | ≤1.75 | 10.16 |
| NV25S-D005 | For Cabin | ≤1.75 | 10 |
| NV25S-A001 | For Cabin | ≤1.75 | 10.16 |
| NV25S-A002 | For Cabin | ≤1.75 | 10 |
| NV25S-M003 | For Counterweight | ≤1.75 | 10,16.4 |
| NV25S-M004 | For Counterweight | ≤1.75 | 10,16.4 |
| NV25S-M005 | For Counterweight | ≤1.75 | 10,16.4 |
| NV25S-S004 | For Counterweight | ≤1.75 | 5,10,16.4 |
| NV25S-S005 | For Counterweight | ≤1.75 | 5 |
| NV25S-H001 | For Counterweight | ≤1.75 | 10,16.4 |
| NV25S-H003 | For Counterweight | ≤1.75 | 10,16.4 |
| NV25S-0001 | For Counterweight | ≤1.75 | 16 |
| NV25S-0002 | For Counterweight | ≤1.75 | 16 |
| NV25S-D001 | For Counterweight | ≤1.75 | 5 |

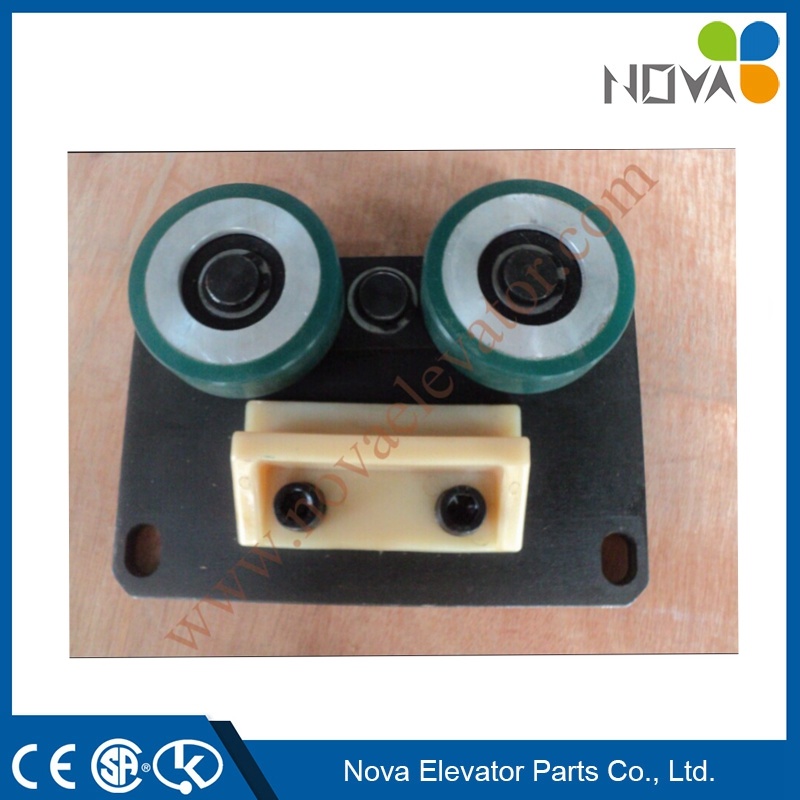

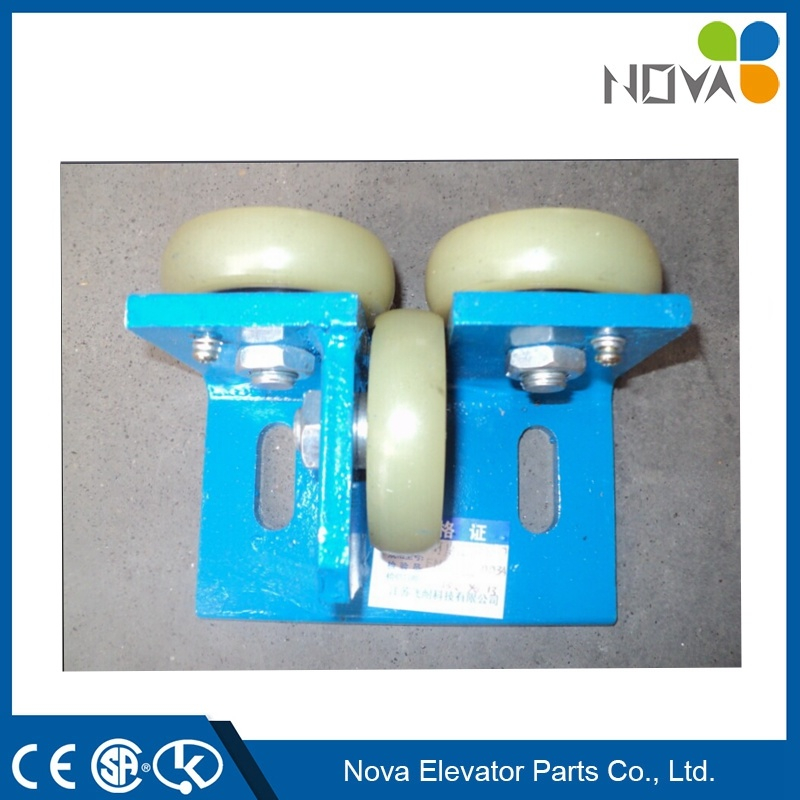

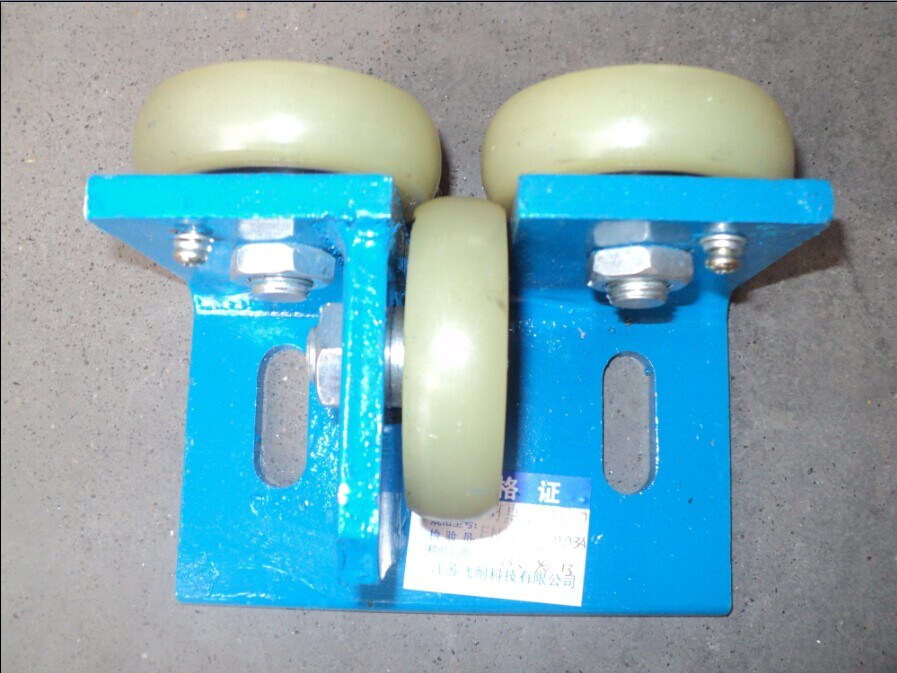

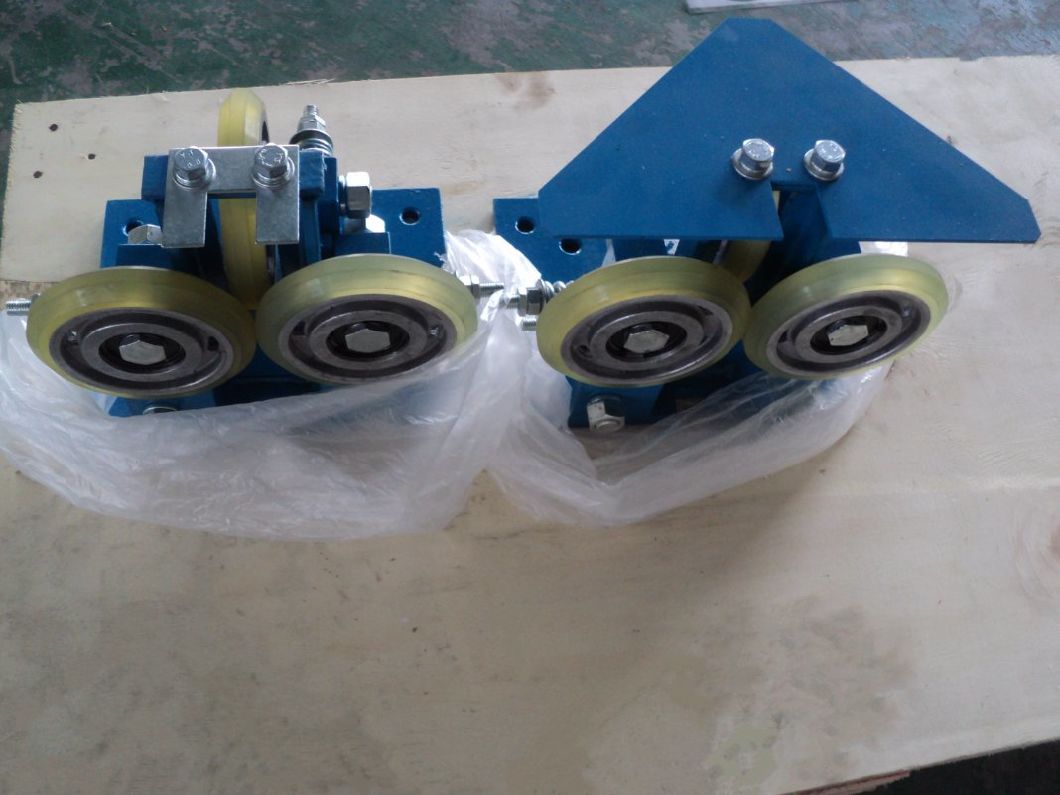

| Nova code | Application | Roller dia(mm) | Rated Speed(m/s) | Load | Guide rail width(mm) | Remarks |
| NV25R-001A | For Cabin | Φ125 | ≤2.5 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
| NV25R-001B | For Cabin | Φ125 | ≤2.5 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
| NV25R-001C | For Cabin | Φ125 | ≤2.5 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
| NV25R-002A | For Cabin | Φ160 | ≤3 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
| NV25R-002B | For Cabin | Φ160 | ≤3 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
| NV25R-003A | For Counterweight | Φ76 | ≤3.5 | ≤3000 | 10.16 | Guide rail width can not be re-adjusted |
| NV25R-003B | For Counterweight | Φ76 | ≤3.5 | ≤3000 | 10.16 | Guide rail width can not be re-adjusted |
| NV25R-004 | For Cabin | Φ150 | ≤3.5 | ≤2700 | 10.16 | Guide rail width can be re-adjusted |
| NV25R-005 | For Cabin | Φ82.3 | ≤2 | ≤2500 | 10.16 | Guide rail width can be re-adjusted |
| NV25R-006 | For Villa Elevator | Φ70 | ≤0.4 | ≤320 | 10.16 | Guide rail width can not be re-adjusted |
| NV25R-007 | For Counterweight | Φ80 | ≤3.5 | ≤2700 | 10.16 | Guide rail width can be re-adjusted |
| NV25R-008 | For Cabin | Φ200 | ≤4.0 | ≤2700 | 16 | Guide rail width can not be re-adjusted |
