Safety System
Elevator
500-1000kgs
6-10
<1.0m/s
AC

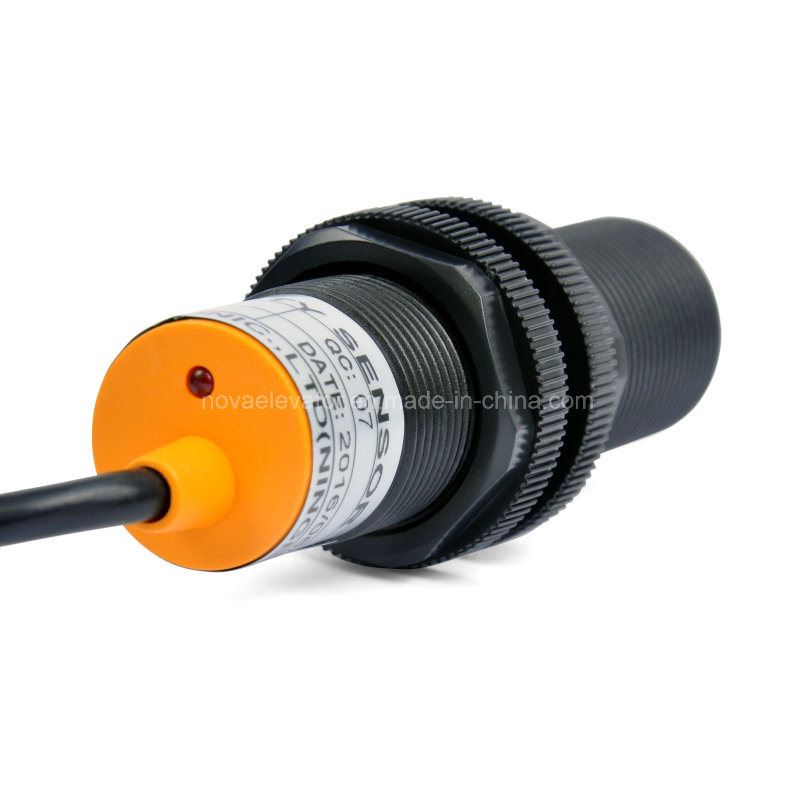

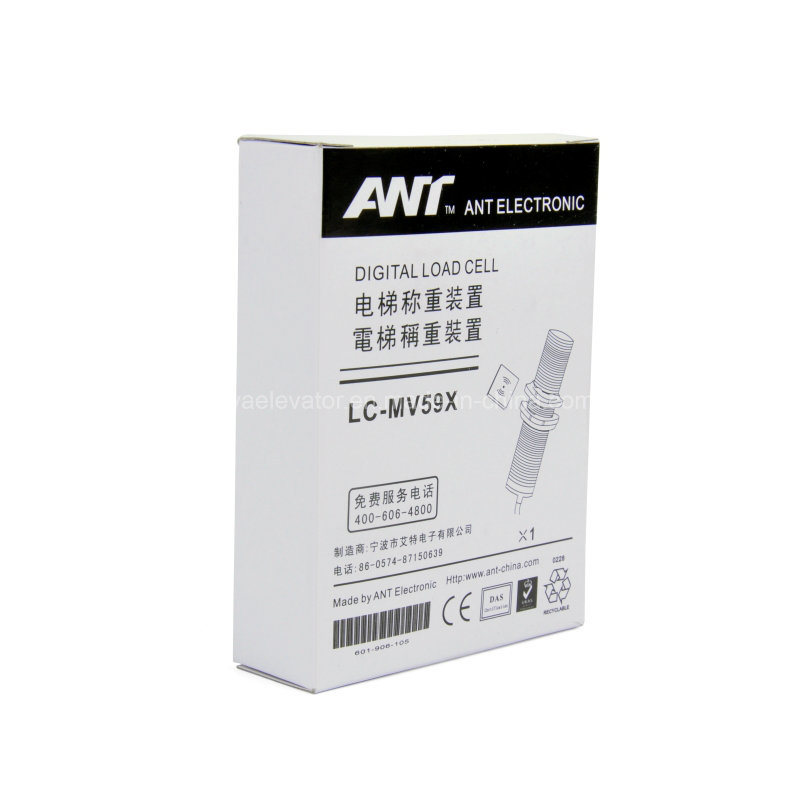

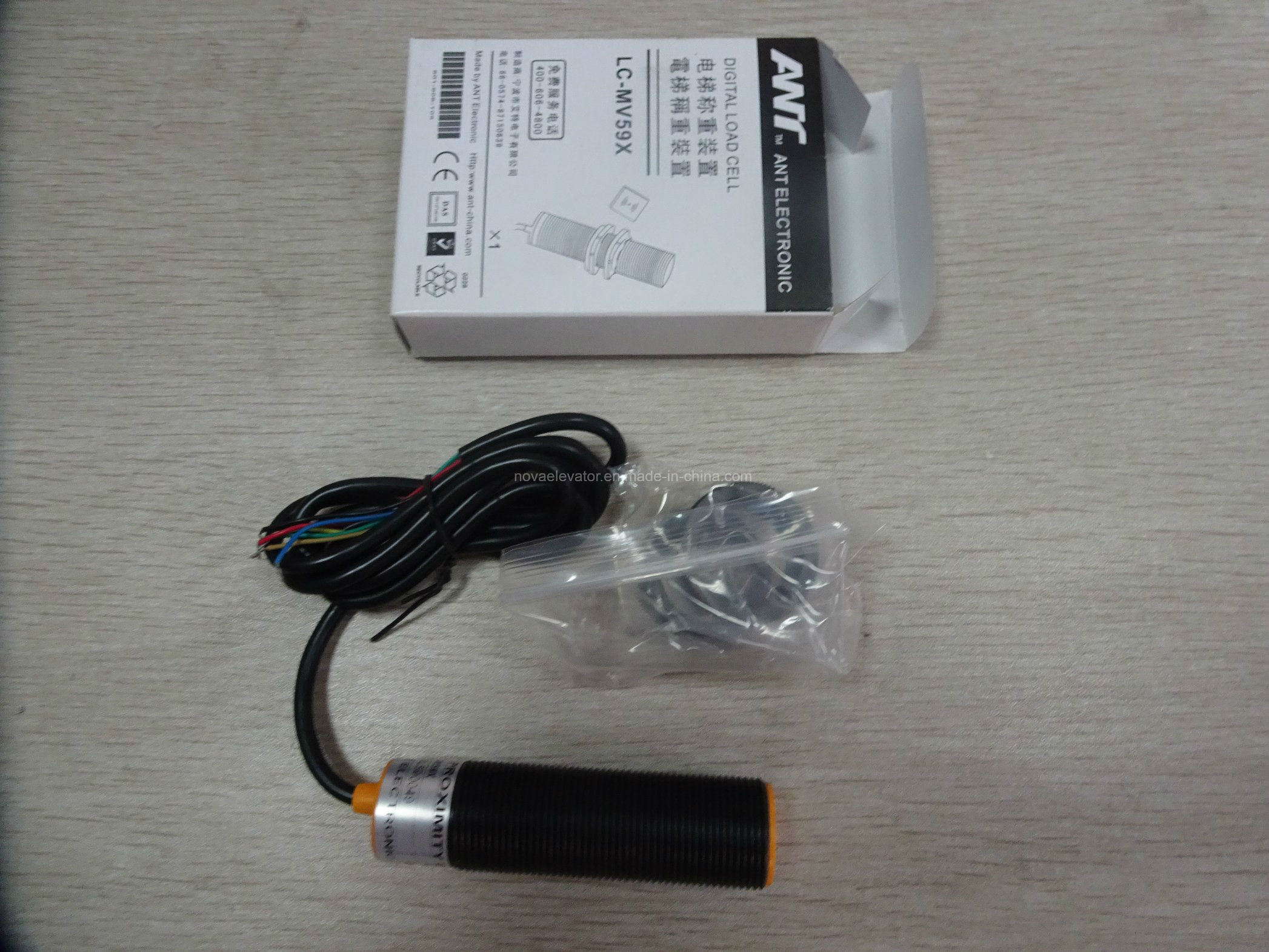

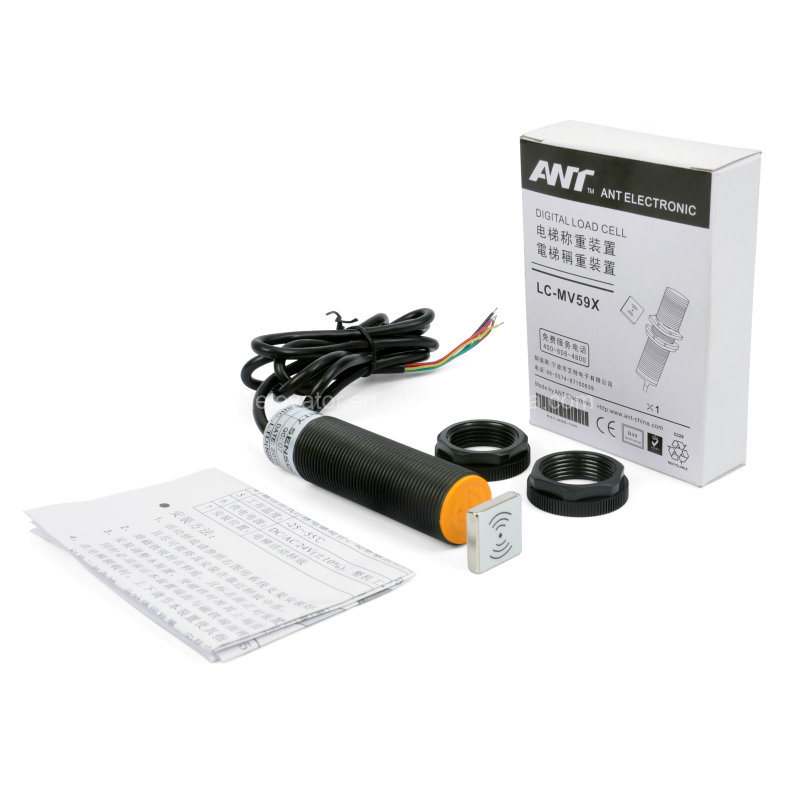

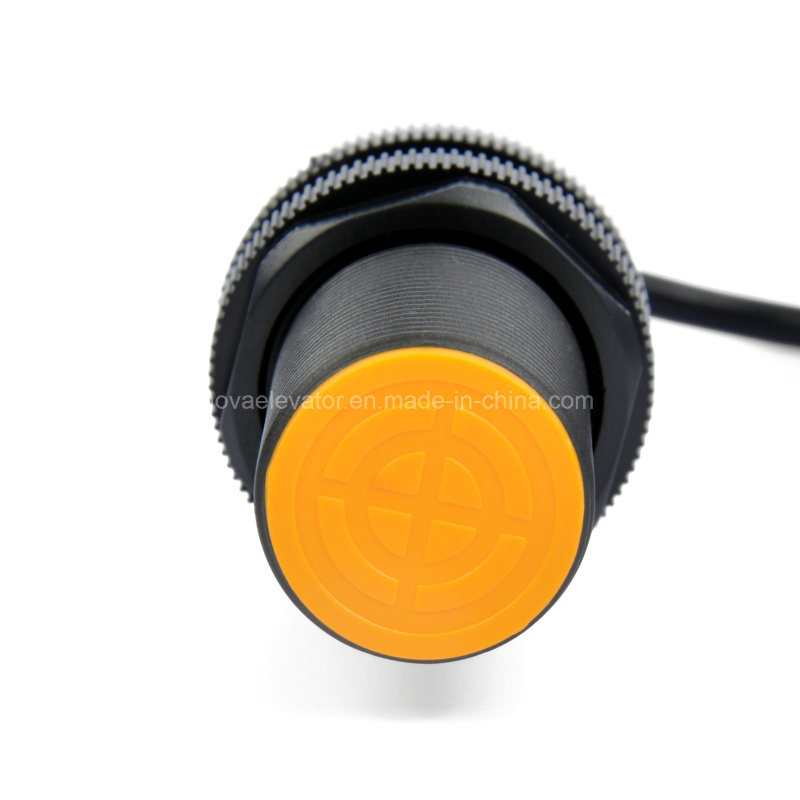

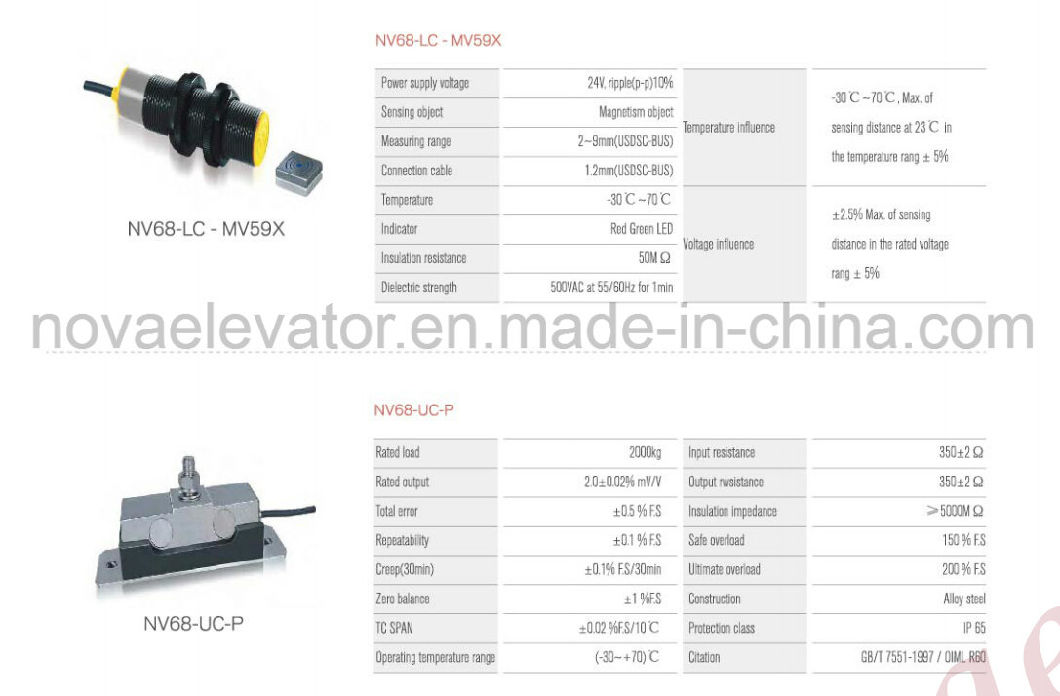

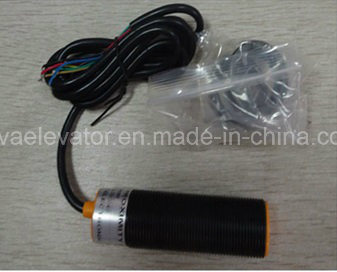

WEIGHING MEASURING DEVICE NV68-LC-MV59X
| Technical parameter | |||
| Rated load | 5000kg | Input resistance | 760±10 Ω |
| Rated output | 2.0±0.02% mV/V | Output resistance | 700±2Ω |
| Total error | ±0.5 %F.S | Insulation impedance | ≥5000MΩ |
| Repeatability | ±0.1 %F.S | Safe overload | 150% F.S |
| Creep(30min) | ±0.05% F.S/30min | Ultimate overload | 200%F.S |
| Zero balance | ±1 %F.S | Construction | Alloy steel |
| TC SPAN | ±0.02 %F.S/10ºC | Protection class | IP67/IP68 |
| Operating temperature range | (-30+70) 0ºC | Citation | G B/T7551-1997 / OI M L R60 |
WEIGHING MEASURING DEVICE NV68-LC-MV59X
| Technical parameter | |||
| Rated load | 5000kg | Input resistance | 760±10 Ω |
| Rated output | 2.0±0.02% mV/V | Output resistance | 700±2Ω |
| Total error | ±0.5 %F.S | Insulation impedance | ≥5000MΩ |
| Repeatability | ±0.1 %F.S | Safe overload | 150% F.S |
| Creep(30min) | ±0.05% F.S/30min | Ultimate overload | 200%F.S |
| Zero balance | ±1 %F.S | Construction | Alloy steel |
| TC SPAN | ±0.02 %F.S/10ºC | Protection class | IP67/IP68 |
| Operating temperature range | (-30+70) 0ºC | Citation | G B/T7551-1997 / OI M L R60 |
