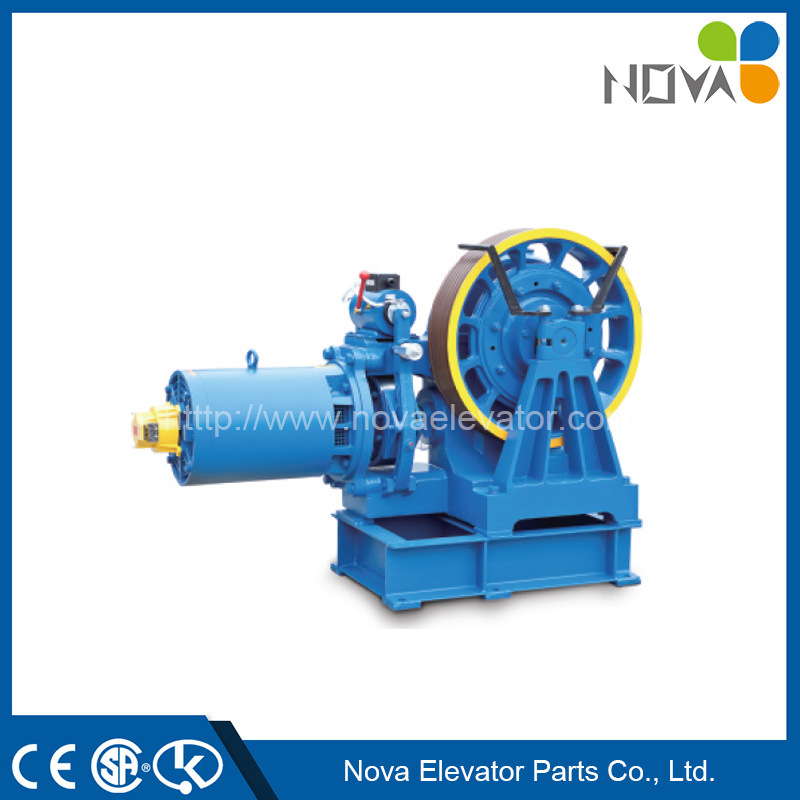

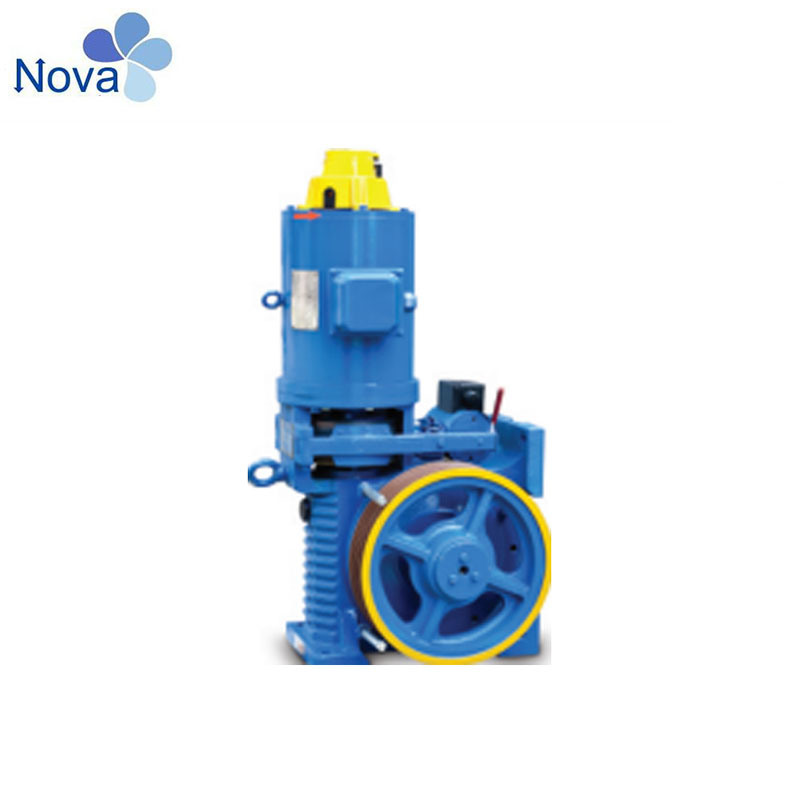

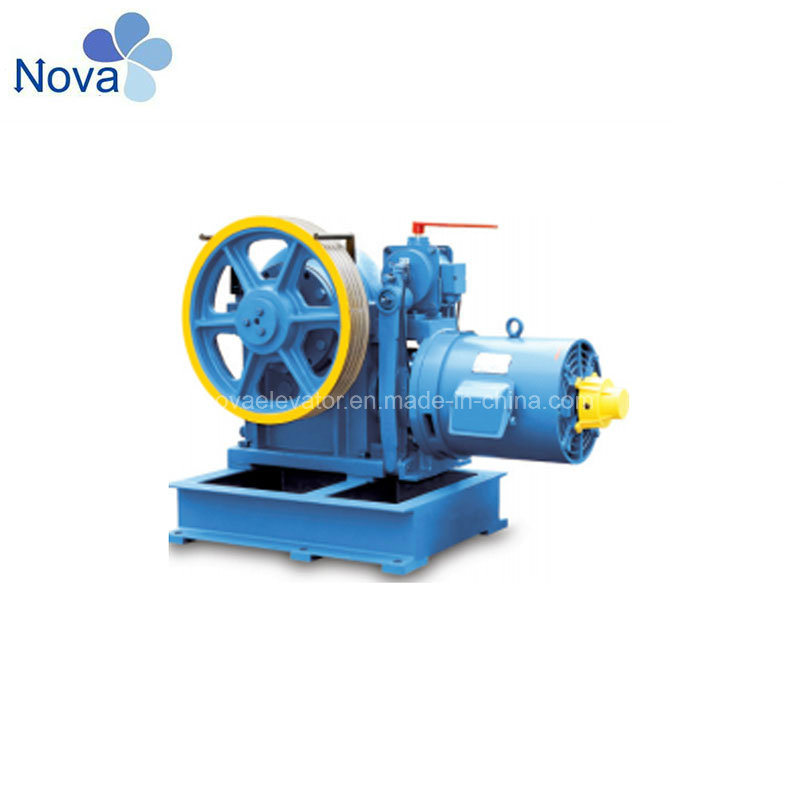

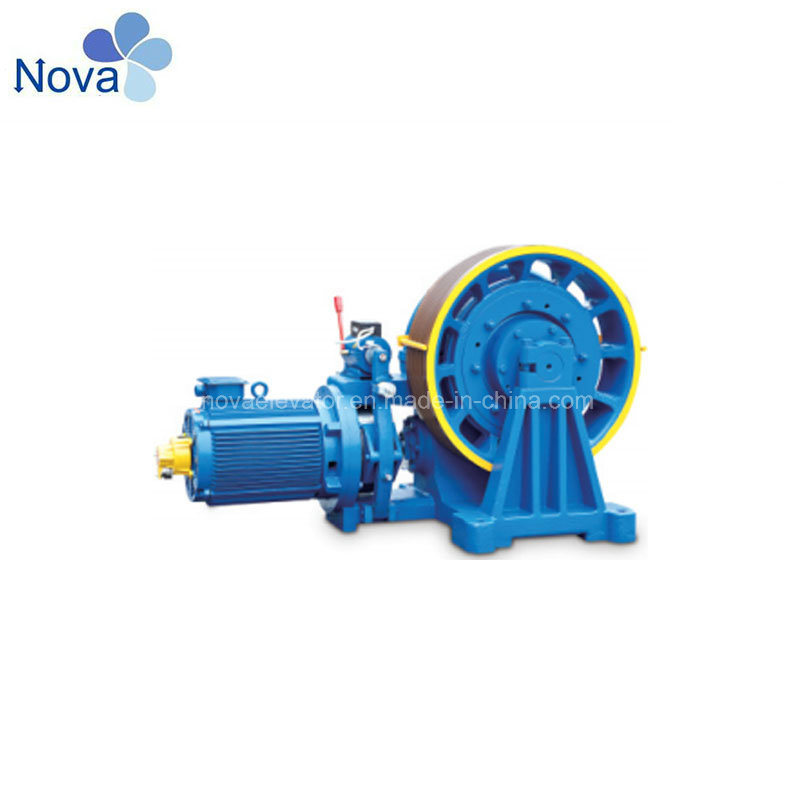

Elevator Lift Vvvf Geared Traction Machine Motor

Availability:
Quantity:
Inquire Add to Basket

  • Online Technical Support

  • 1 Year

  • AC Elevator

  • 320-1600kg

  • 4-21 Persons

  • 0.5-4.0m/S

VVVF Geared Traction Machine

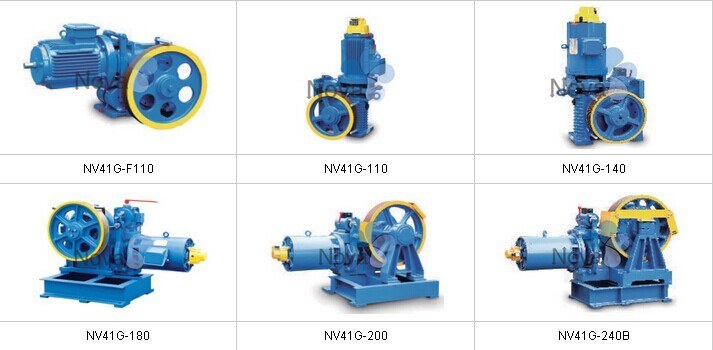

Nova Code Capacity(KGS) Speed(m/s) Power(KW) Traction Sheave(mm) Roping Voltage(V)
NV41G-110 320 0.5 2.2 Φ320*4*Φ8*12 1:1 AC380V(Stanard)
AC220V(Optional)
1 3.5 Φ320*4*Φ8*12
NV41G-125 400 0.65 3 Φ520*3*Φ13*20
1 4 Φ520*3*Φ13*20
NV41G-140 400 0.5 3.5 Φ340*5*Φ8*12
0.63 3.5 Φ425*4*Φ10*16
1 4.5 Φ340*5*Φ8*12
500 0.5 3.5 Φ340*6*Φ8*12
0.63 4.5 Φ425*4*Φ10*16
1 5.5 Φ340*6*Φ8*12
1.5 7.5 Φ425*4*Φ10*16
NV41G-180 630 0.75 5.5 Φ480*4*Φ12*18
1 6.4 Φ480*4*Φ12*18
1.5 9 Φ480*4*Φ12*18
NV41G-200 800 1 7.5/9 Φ530*5*Φ13*20
1.5 11 Φ530*5*Φ13*20
1.75 15 Φ530*5*Φ13*20
NV41G-200A 630 0.5 3.5 Φ530*4*Φ13*20
1 5.5 Φ530*4*Φ13*20
1.75 8.5 Φ530*4*Φ13*20
2 11 Φ530*4*Φ13*20
800 0.5 5.5 Φ530*5*Φ13*20
1 8.5 Φ530*5*Φ13*20
1.75 11 Φ530*5*Φ13*20
2 11 Φ530*5*Φ13*20
1000 0.5 5.5 Φ530*5*Φ13*20
1 8.5 Φ530*5*Φ13*20
1.75 15 Φ530*5*Φ13*20
2 15 Φ530*6*Φ13*20
NV41G-240B 800 1.6 12.5 Φ620*5*Φ13*20
1.75 15 Φ620*5*Φ13*20
2 18.5 Φ620*6*Φ13*20
1000 1 11 Φ620*5*Φ13*20
1.6 18.5 Φ620*6*Φ13*20
1.75 18.5 Φ620*6*Φ13*20
2 18.5 Φ620*6*Φ13*20
1150 1 15 Φ620*6*Φ13*20
1.6 18.5 Φ620*6*Φ13*20
1.75 18.5 Φ620*6*Φ13*20
2 22 Φ620*6*Φ13*20
NV41G-275A 1150 0.5 7.5 Φ650*6*Φ13*20
1 11 Φ650*6*Φ13*20
1.25 15 Φ650*6*Φ13*20
1.6 18.5 Φ650*8*Φ13*20
1.75 18.5 Φ650*8*Φ13*20
2 22 Φ650*8*Φ13*20
1250 0.5 7.5 Φ650*6*Φ13*20
1 15 Φ650*6*Φ13*20
1.6 22 Φ650*8*Φ13*20
1.75 22 Φ650*8*Φ13*20
2 26 Φ650*8*Φ13*20
1350 0.5 7.5 Φ650*6*Φ13*20
1 15 Φ650*6*Φ13*20
1.6 22 Φ650*8*Φ13*20
1.75 22 Φ650*8*Φ13*20
2 26 Φ650*8*Φ13*20
1600 0.5 11 Φ650*8*Φ13*20
1 18.5 Φ650*8*Φ13*20
1.6 26 Φ650*8*Φ13*20
1.75 26 Φ650*8*Φ13*20
2 30 Φ650*8*Φ13*20
NV41G-320A 2000 0.5 11 Φ700*8*Φ16*25
1 18.5 Φ700*8*Φ16*25
1.5 26 Φ700*8*Φ16*25
1.75 30 Φ700*8*Φ16*25
2 37 Φ700*8*Φ16*25
2500 0.5 15 Φ700*8*Φ16*25
1 22 Φ700*8*Φ16*25
1.5 30 Φ700*8*Φ16*25
1.75 37 Φ700*8*Φ16*25
2 45 Φ700*8*Φ16*25
Re:
1) Left or right sheave is optional
2) Painted color(grey or blue) is optional
3) With or without encoder is optional
4) Motor base is optional
5) Horizontal or vertical type is optional

Elevator Traction Machine, Lift Tractor, Geared Elevator Motor Traction Machine,AC1,AC2,VVVF Lift Machine, Gearless Traction Machine for Elevator,VVVF Traction Machine,Gearless Traction Machine for Elevator,
Gearless Traction Motor
Type Geared Gearless
Brand Torin,Canon,KDS Torin,KDS,Montanari
Load Capacity 100-2000KGS 320-2000KGS
Speed 0.4M/S-2.0M/S 0.5M/S-2.5M/S
Voltage As customer's requirement

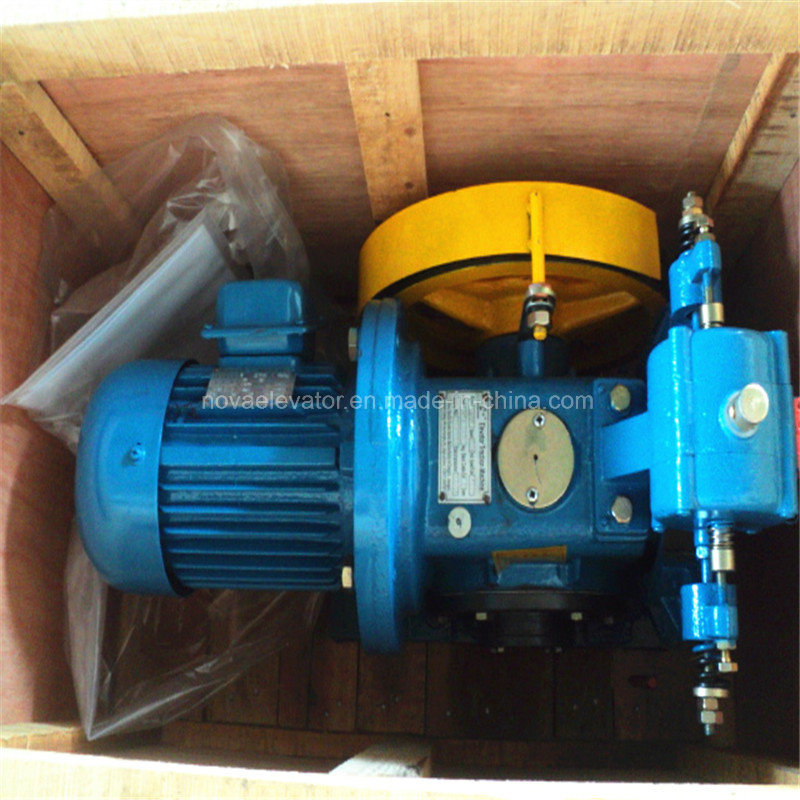

Package Wooden Case
Delivery Time 3 weeks upon order approved

Nova welcomes you to visit our website or email us to get traction machine preliminary inquiry sheet for your selection to meet your specific requirements.
