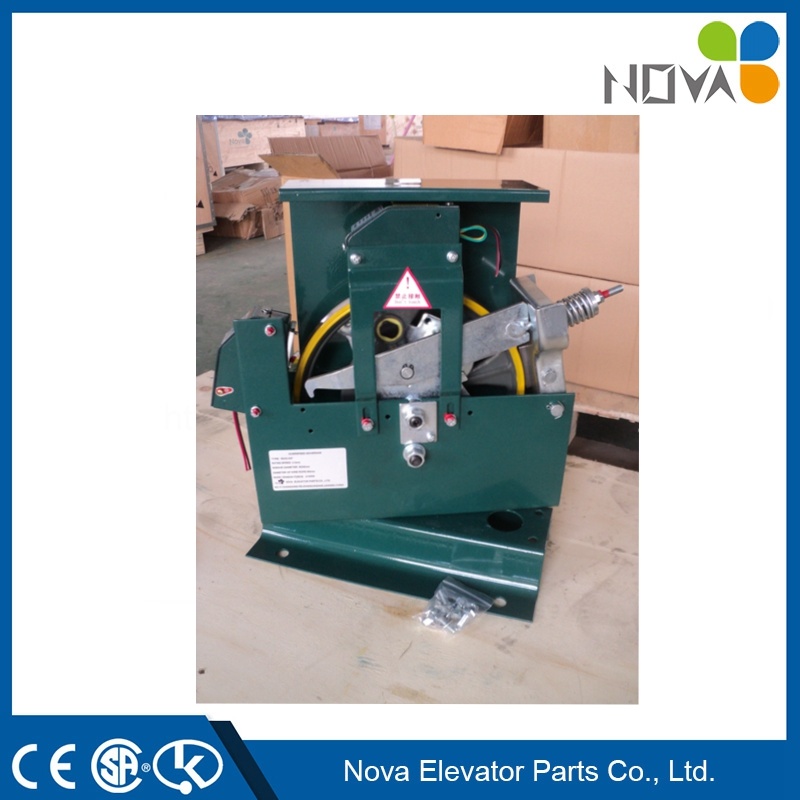

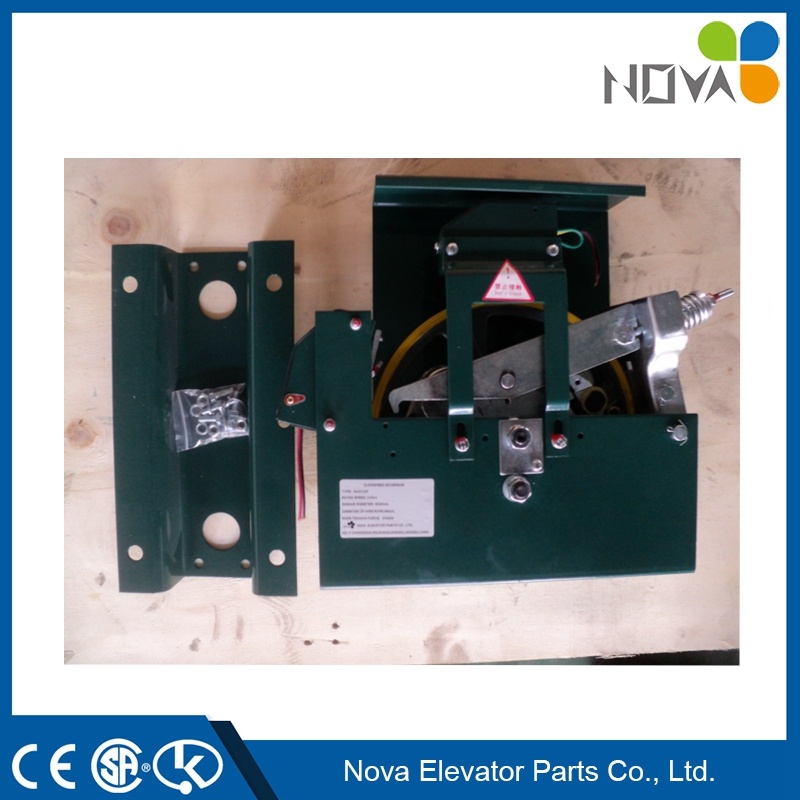

Elevator Lift Speed Limit Over Speed Governor

Share to:

Elevator Lift Speed Limit Over Speed Governor

Availability:

Quantity:



Inquire Add to Basket

Type:
Safety System
Load Capacity:
1000kg
Persons:
>20
Speed:
1.00-2.00m/s
Drive Mode:
AC
Control Type:
Relay Control

Product Description

Nova Elevator Parts Co., Ltd.,which was founded in 2002 with its headquarters located in Shanghai, is a leading company in design, manufacture and supply of several kinds of elevator parts in China, with two manufacturing companies and one trading department as its subsidiaries.
As a verified and qualified manufacturer by Alibaba Co., long-term elevator industry experience and development of technology coupled with strict quality control program for manufacturing make Nova Elevator Parts extend largely its overseas market by giving more content to our customer with quality elevator components and superior services.

Features:

NV52-240F	Bi-directional for Room Lift	Rated speed	≤2.5m/s
		Wire rope diameter	Φ6,Φ6.3,Φ8
		Sheave diameter	Φ240
		Tension force	≥1000N
		Super switch voltage grade	AC220V

Note: Using with the magnetic rope gripper of NV-250M (mechanical)

Nova has mainly supplying high quality many kinds of elevator speed governor according to customers' request as follows:

NV52-240	Unidirectional for Room Lift	Rated speed	≤2.5m/s
		Wire rope diameter	Φ6,Φ6.3,Φ8
		Sheave diameter	Φ240
		Tension force	≥1000N
		Super switch voltage grade	AC220V
NV52-240B	Bi-directional for Room Lift	Rated speed	≤2.5m/s
		Wire rope diameter	Φ6,Φ6.3,Φ8
		Sheave diameter	Φ240
		Tension force	≥1000N
		Super switch voltage grade	AC220V
		Using with the mechanical rope gripper of NV-250
NV52-240F		Rated speed	≤2.5m/s
		Wire rope diameter	Φ6,Φ6.3,Φ8
		Sheave diameter	Φ240
		Tension force	≥1000N
		Super switch voltage grade	AC220V
		Using with the magnetic rope gripper of NV-250
NV52-240A	Unidirectional for MRL	Rated speed	≤1.75m/s
		Wire rope diameter	Φ6,Φ6.3,Φ8
		Sheave diameter	Φ240
		Tension force	≥1000N
		Super switch voltage grade	AC220V/DC24V
		Switch voltage grade	AC220V/DC24V
		Action magnet voltage grade	AC220V/DC24V
NV52-208		Rated speed	≤1.75m/s
		Wire rope diameter	Φ6
		Sheave diameter	Φ200
		Tension force	≥500N
		Super switch voltage grade	AC220V
NV52-240E	Bi-directional for MRL	Rated speed	≤0.63m/s
		Wire rope diameter	Φ6,Φ6.3,Φ8
		Sheave diameter	Φ240
		Tension force	≥1000N
		Super switch voltage grade	AC220V/DC24V
		Switch voltage grade	AC220V/DC24V
		Action magnet voltage grade	AC220V/DC24V
		Using with the magnetic rope gripper of NV-250
NV52-187		Rated speed	≤1.0m/s	≤1.75m/s
		Wire rope diameter	Φ6,Φ6.3	Φ6,Φ6.3,Φ8
		Sheave diameter	Φ200	Φ240
		Tension force	≥500N	≥500N
		Super switch voltage grade	AC220V/DC24V
		Switch voltage grade	AC220V/DC24V
		Action magnet voltage grade	AC220V/DC24V

NV52-001	For cargo elevator	Rated speed	≤0.63m/s
		Wire rope diameter	Φ8
		Sheave diameter	Φ280
		Tension force	≥500N
		Super switch voltage grade	AC220V
NV52-208(A)	Underlying	Rated speed	≤1.75m/s
		Wire rope diameter	Φ6
		Sheave diameter	Φ200
		Tension force	≥500N
		Super switch voltage grade	AC220V

My friend, please feel free to contact us if you have any new inquiry.

Elevator Parts Elevator Speed Limiter Elevator Lift Speed Limit Over Speed Governor
