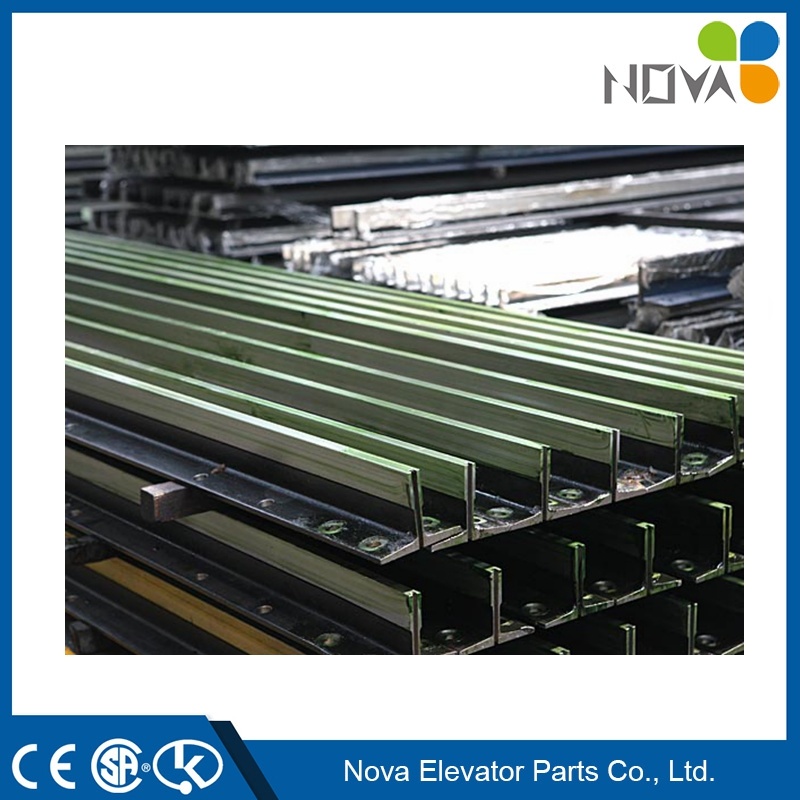

Elevator Guide Rail (Elevator Shaft Component) 1. With more than 20 years experience in manufacturing elevator guide rails, Nova has been supplying
and exporting elevator guide rails in big volume every year.
2. Our Guide Rail are strict follow ISO7465/2007, GB-T22562/2008
3. We are SJEC,FUJI, IFE, TOSHIBA Supplier
4. We make OEM for MARAZZI, MONTEFERRO, SAVERA

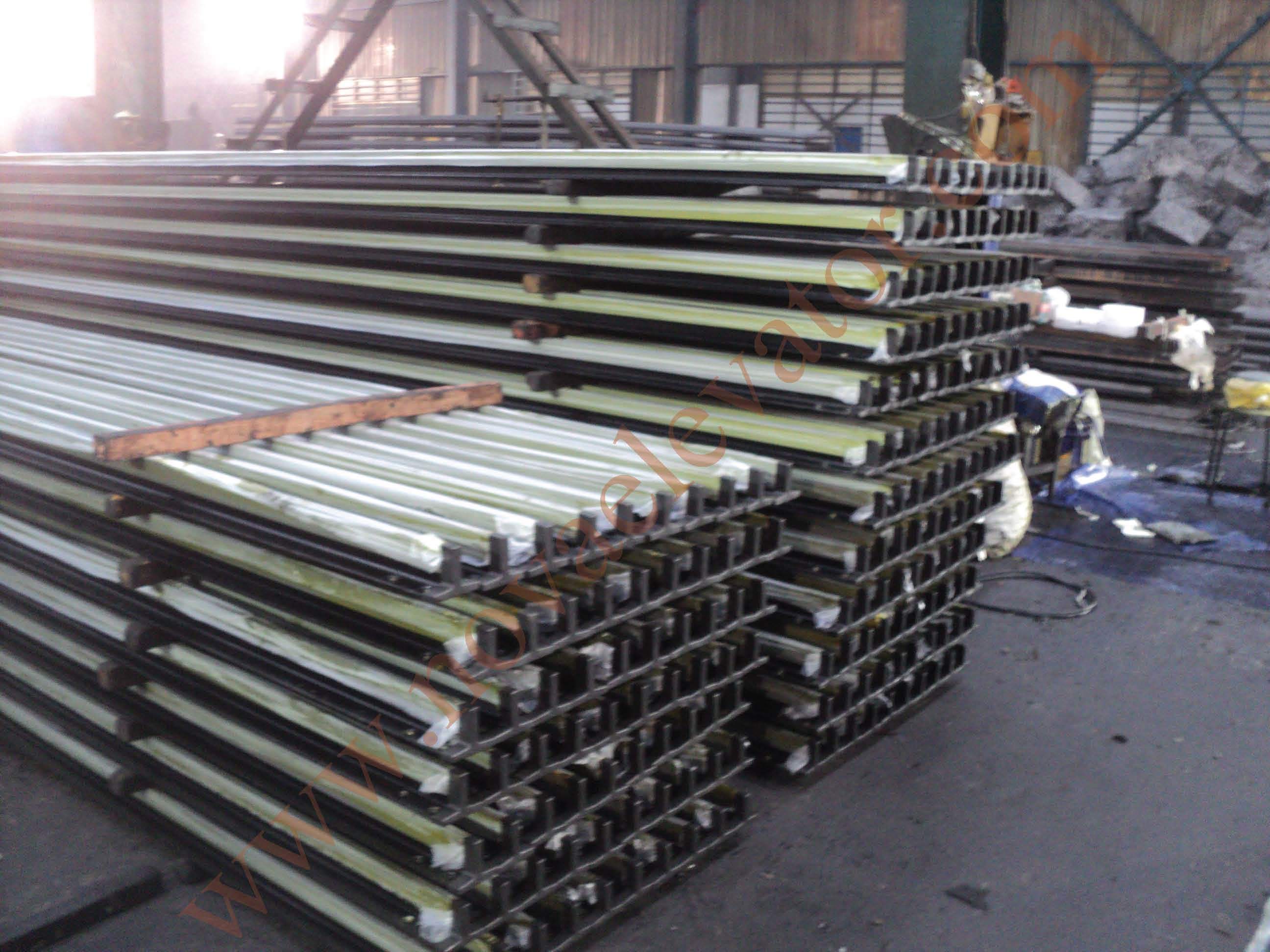

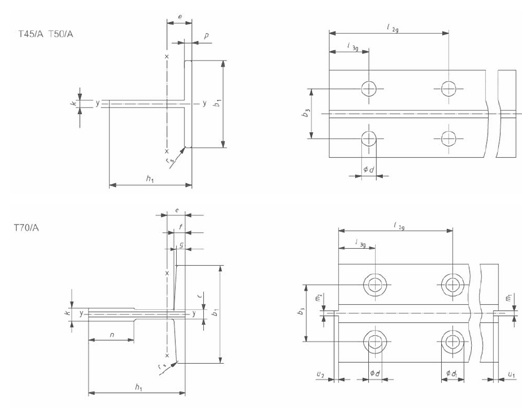

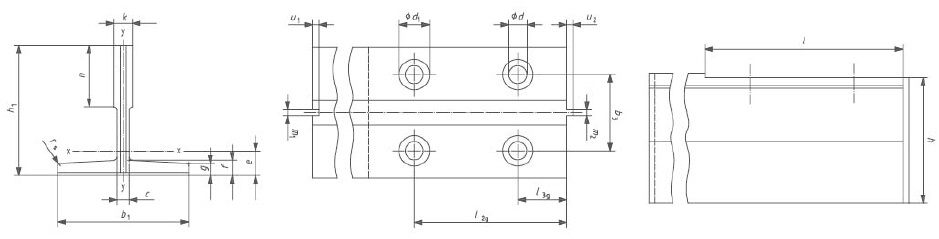

1. Cold Drawn Guide Rail
| Type | b1 | h1 | k | p | rs | l2 | l3 | d | b3 | n | c | f | g | m1 | m2 | u1 | u2 | d | d1 |
| T45/A | 45 | 45 | 5 | 5 | 1 | 65 | 15 | 9 | 25 | - | - | - | - | - | - | - | - | - | - |
| T50/A | 50 | 50 | 5 | 5 | 1 | 75 | 25 | 9 | 30 | - | - | - | - | - | - | - | - | - | - |
| Tolerances | ±1 | ±0.2 | ±0.15 | ±0.5 | - | ±0.2 | ±0.2 | - | ±0.2 | - | - | - | - | - | - | - | - | - | - |
| T70/A | 70 | 65 | 9 | - | 15 | 105 | 25 | 9 | 42 | 34 | 6 | 6 | 8 | 3 | 2.97 | 3.5 | 3 | 13 | 26 |
| Tolerances | ±1 | ±0.1 | +0.1/0 | - | - | ±0.2 | ±0.2 | - | ±0.2 | +3/0 | - | ±0.75 | ±0.75 | - | +0.06/0 | 0/-0.06 | ±0.10 | - | - |

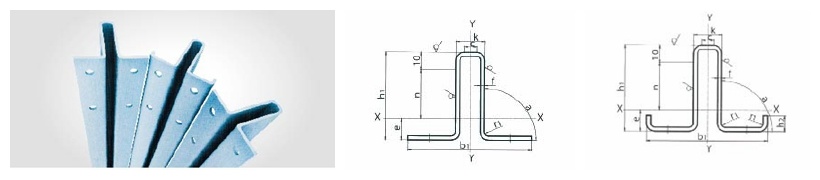

2. Machined Guide Rail
| Type | b1 | h1 | h | k | n | c | f | g | rs | m1 | m2 | u1 | u2 | d | d1 | b3 | i2 | i3 | l |
| Tolerances (standard) | ±1.5 | ±0.75 | ±0.1 | +0.1/0 | +3/0 | - | ±0.75 | ±0.75 | - | +0.06/0 | 0/-0.06 | ±0.10 | ±0.10 | - | - | ±0.2 | ±0.2 | ±0.2 | +3/0 |
| T70/B | 70 | 65 | 64 | 9 | 34 | 6 | 8 | 6 | 1.5 | 3 | 2.97 | 3.5 | 3 | 13 | 26 | 42 | 105 | 25 | 128 |
| T75/B | 75 | 62 | 61 | 10 | 30 | 8 | 9 | 7 | 3 | 3 | 2.97 | 3.5 | 3 | 13 | 26 | 42 | 105 | 30 | 123 |
| T78/B | 78 | 56 | 55 | 10 | 26 | 7 | 8.5 | 6 | 2.5 | 3 | 2.97 | 3.5 | 3 | 13 | 26 | 42 | 105 | 38 | 138 |
| T82/B | 82 | 68.25 | 66.6 | 9 | 26 | 7.5 | 8.25 | 6 | 3 | 3 | 2.97 | 3.5 | 3 | 13 | 26 | 50.8 | 81 | 27 | 111 |
| T89/B | 89 | 62 | 61 | 16 | 34 | 10 | 11.1 | 7.9 | 3 | 6.4 | 6.37 | 7.14 | 6.35 | 13 | 26 | 57.2 | 114.3 | 38.1 | 156 |
| T90/B | 90 | 75 | 74 | 16 | 42 | 10 | 10 | 8 | 4 | 6.4 | 6.37 | 7.14 | 6.35 | 13 | 26 | 57.2 | 114.3 | 38.1 | 156 |
| T114/B | 114 | 89 | 88 | 16 | 38 | 9.5 | 11 | 8 | 4 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | 70 | 114.3 | 38.1 | 156 |
| T127-1/B | 127 | 89 | 88 | 16 | 45 | 10 | 11 | 8 | 4 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | 79.4 | 114.3 | 38.1 | 156 |
| T127-2/B | 127 | 89 | 88 | 16 | 51 | 10 | 15.9 | 12.7 | 5 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | 79.4 | 114.3 | 38.1 | 156 |
| T140-1/B | 140 | 108 | 107 | 19 | 51 | 12.7 | 15.9 | 12.7 | 5 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 |
| T140-2/B | 140 | 102 | 101 | 28.6 | 51 | 17.5 | 17.5 | 14.5 | 5 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 |
| T140-3/B | 140 | 127 | 126 | 31.75 | 57 | 19 | 25.4 | 17.5 | 5 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 |

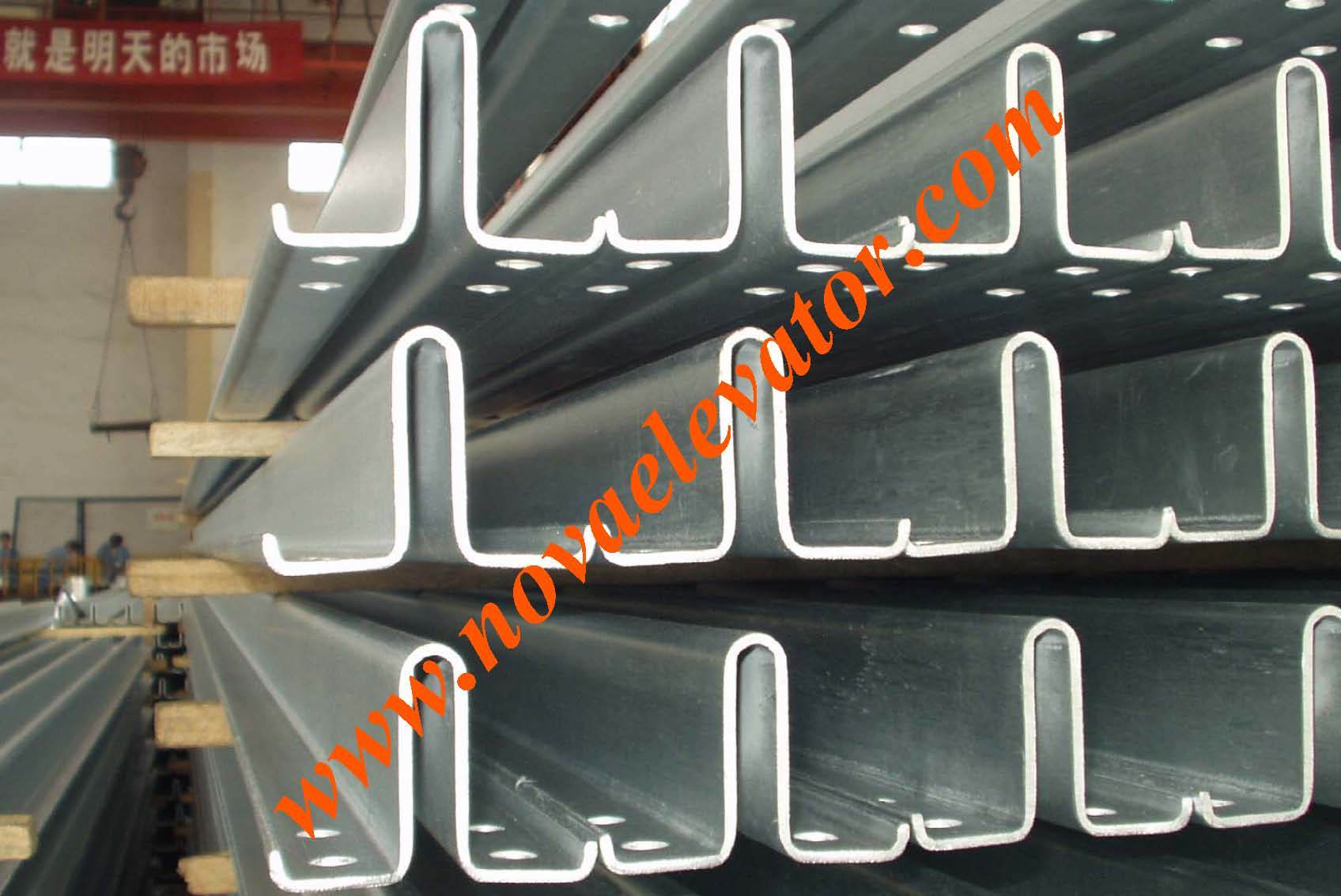

3. Hollow Guide Rail
| Type | b1 | c | f | h1 | h2 | k | m | r1 | a |
| ±1.00 | - | +0.20/ -0.15 | +0/ -0.5 | - | ±0.4 | - | - | +60/ +20" |
| Tk3 | 75 | 1.8 | 2.2 | 55±0.2 | - | 10±2 | 25 | 5 | 90° |
| Tk5 | 87 | 1.8 | 3 | 60 | - | 16.4 | 25 | 3 |
| Tolerance | 0/0.7 | - | +0.2/ -0.15 | 0/-0.5 | ±1 | ±0.4 | - | - | +60/+20 |
| Tk3A | 78 | 1.8 | 2.2 | 60 | 10 | 16.4 | 25 | 3 | 90° |
| TK5A | 78 | 1.8 | 3.2 | 60 |
4. Guide Rail Accessories -- Fishplate
-- Rail Clip
-- Anchor Bolt & Fasteners
-- Rail Bracket

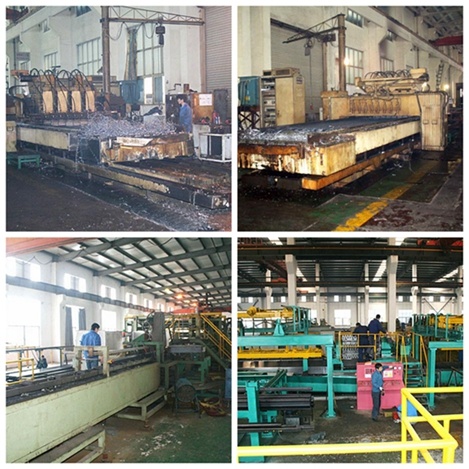

5. Manufacturing

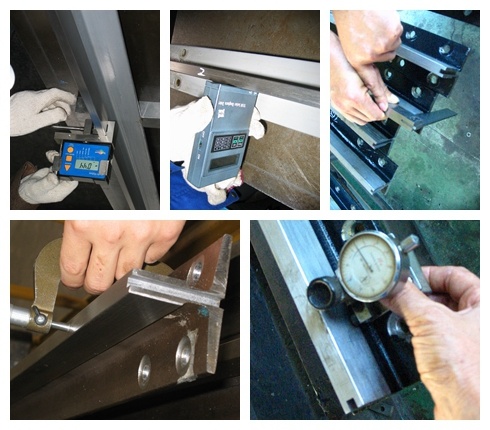

6. Inspection

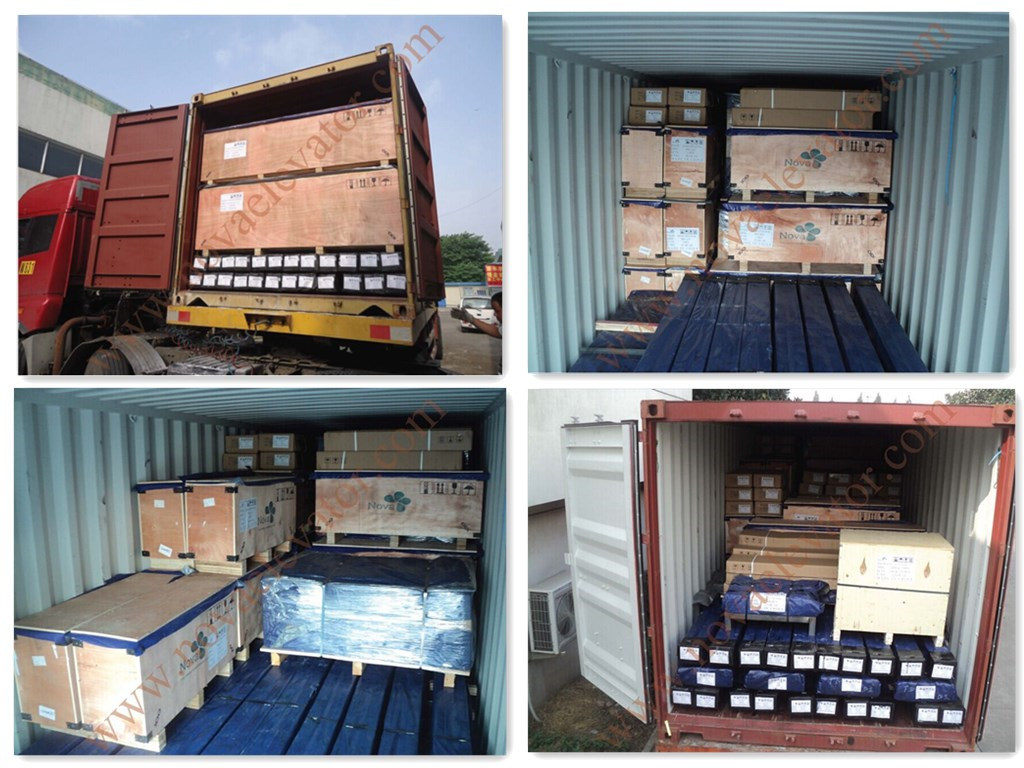

7. Package
