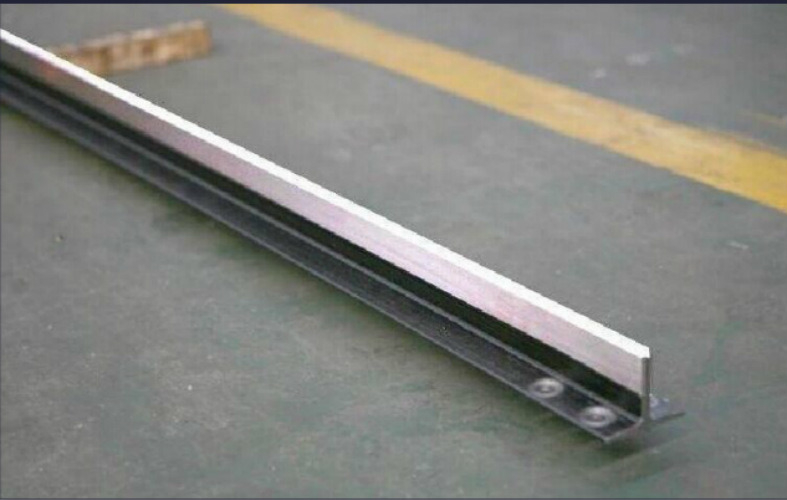

Elevator Hollow Cold Drawn Machined Guide Rail, Observation Elevator

Availability:
Quantity:
Inquire Add to Basket

  • Passenger Elevator

  • Steel

  • T Type Elevator Guide Rail

  • Instal in Passenger Elevator

  • Elevator Shaft Parts

  • 100kgs-5000kgs

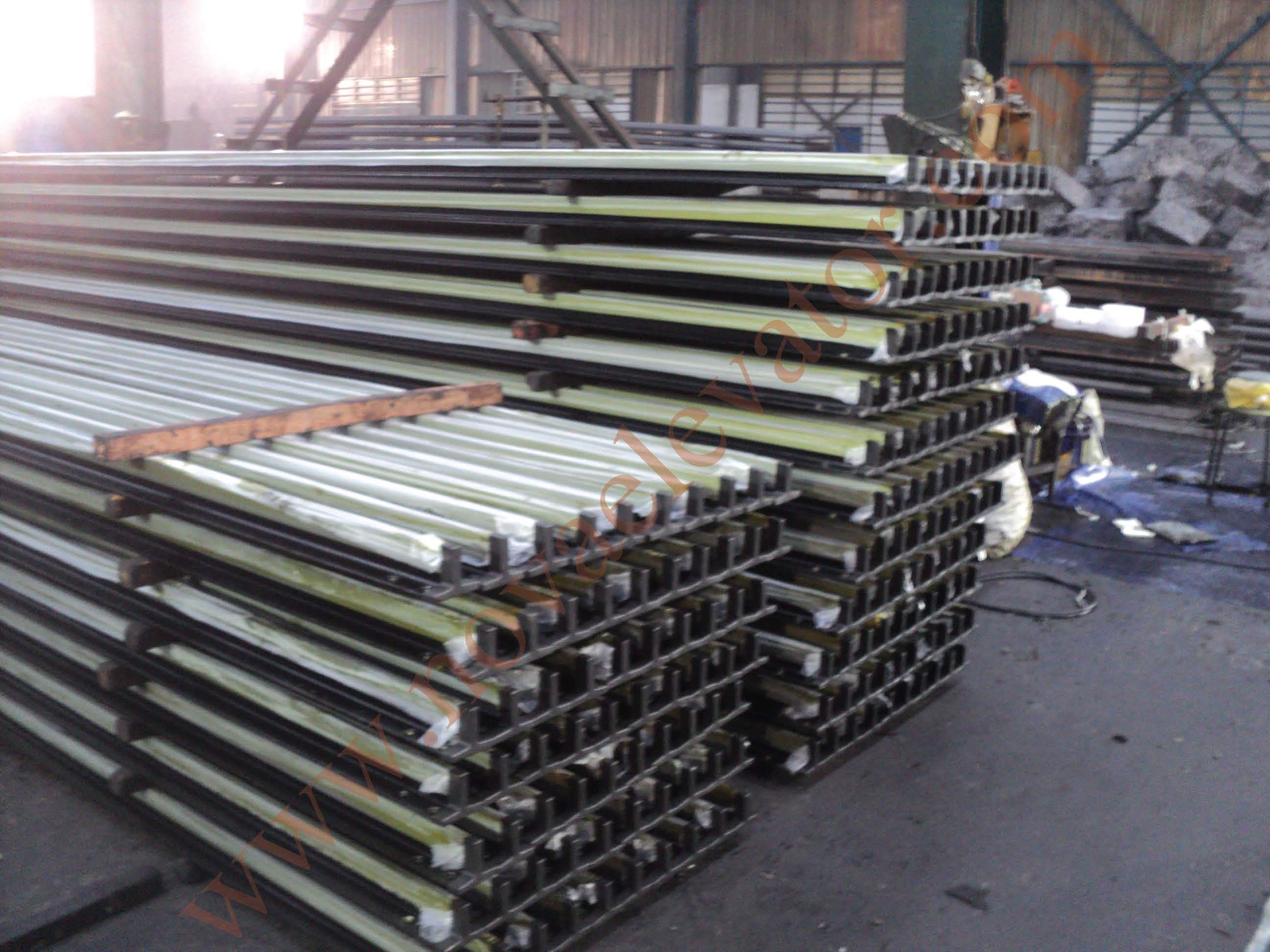

Elevator Guide Rail (Elevator Shaft Component)

1. With more than 20 years experience in manufacturing elevator guide rails, Nova has been supplying and exporting elevator guide rails in big volume every year.
2. Our Guide Rail are strict follow ISO7465/2007, GB-T22562/2008
3. We are SJEC,FUJI, IFE, TOSHIBA Supplier
4. We make OEM for MARAZZI, MONTEFERRO, SAVERA

1. Cold Drawn Guide Rail

Type
b1
h1
k
p
rs
l2
l3
d
b3
n
c
f
g
m1
m2
u1
u2
d
d1

T45/A
45
45
5
5
1
65
15
9
25
-
-
-
-
-
-
-
-
-
-

T50/A
50
50
5
5
1
75
25
9
30
-
-
-
-
-
-
-
-
-
-

Tolerances
±1
±0.2
±0.15
±0.5
-
±0.2
±0.2
-
±0.2
-
-
-
-
-
-
-
-
-
-

T70/A
70
65
9
-
15
105
25
9
42
34
6
6
8
3
2.97
3.5
3
13
26

Tolerances
±1
±0.1
+0.1/0
-
-
±0.2
±0.2
-
±0.2
+3/0
-
±0.75
±0.75
-
+0.06/0
0/-0.06
±0.10
-
-


2. Machined Guide Rail

Type
b1
h1
h
k
n
c
f
g
rs
m1
m2
u1
u2
d
d1
b3
i2
i3
l

Tolerances (standard)
±1.5
±0.75
±0.1
+0.1/0
+3/0
-
±0.75
±0.75
-
+0.06/0
0/-0.06
±0.10
±0.10
-
-
±0.2
±0.2
±0.2
+3/0

T70/B
70
65
64
9
34
6
8
6
1.5
3
2.97
3.5
3
13
26
42
105
25
128

T75/B
75
62
61
10
30
8
9
7
3
3
2.97
3.5
3
13
26
42
105
30
123

T78/B
78
56
55
10
26
7
8.5
6
2.5
3
2.97
3.5
3
13
26
42
105
38
138

T82/B
82
68.25
66.6
9
26
7.5
8.25
6
3
3
2.97
3.5
3
13
26
50.8
81
27
111

T89/B
89
62
61
16
34
10
11.1
7.9
3
6.4
6.37
7.14
6.35
13
26
57.2
114.3
38.1
156

T90/B
90
75
74
16
42
10
10
8
4
6.4
6.37
7.14
6.35
13
26
57.2
114.3
38.1
156

T114/B
114
89
88
16
38
9.5
11
8
4
6.4
6.37
7.14
6.35
17
33
70
114.3
38.1
156

T127-1/B
127
89
88
16
45
10
11
8
4
6.4
6.37
7.14
6.35
17
33
79.4
114.3
38.1
156

T127-2/B
127
89
88
16
51
10
15.9
12.7
5
6.4
6.37
7.14
6.35
17
33
79.4
114.3
38.1
156

T140-1/B
140
108
107
19
51
12.7
15.9
12.7
5
6.4
6.37
7.14
6.35
21
40
92.1
152.4
31.8
193

T140-2/B
140
102
101
28.6
51
17.5
17.5
14.5
5
6.4
6.37
7.14
6.35
21
40
92.1
152.4
31.8
193

T140-3/B
140
127
126
31.75
57
19
25.4
17.5
5
6.4
6.37
7.14
6.35
21
40
92.1
152.4
31.8
193

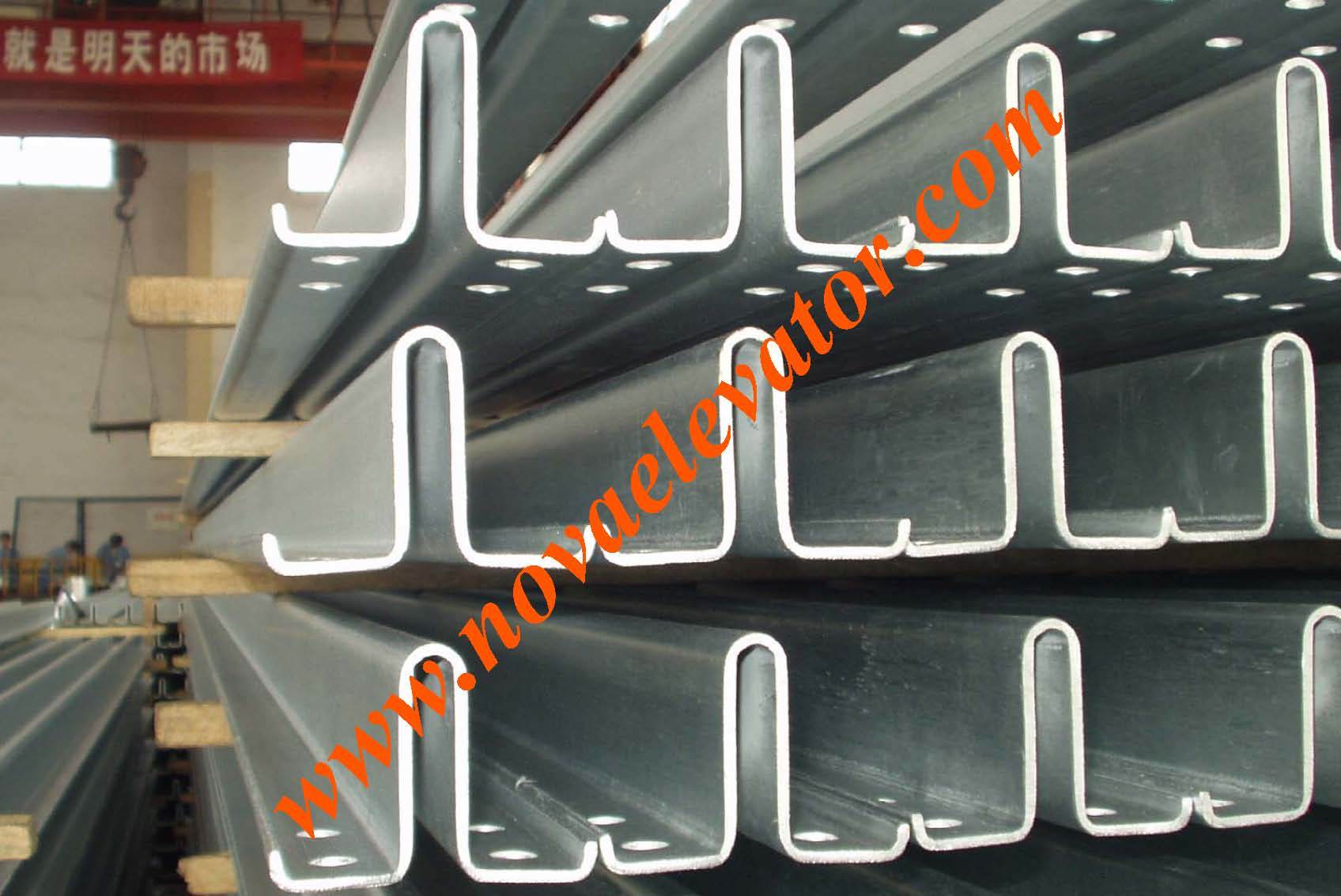

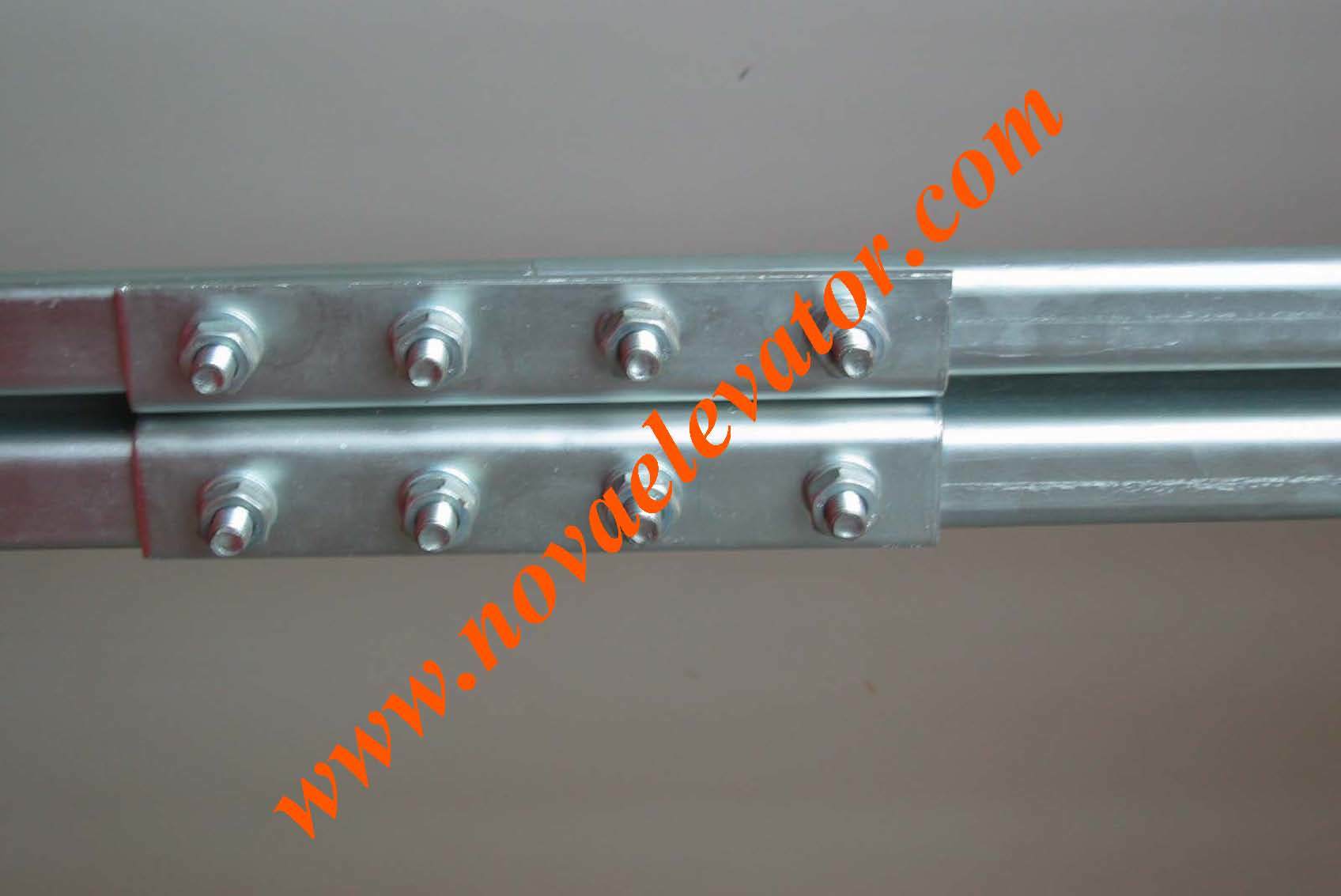

3. Hollow Guide Rail

Type
b1
c
f
h1
h2
k
m
r1
a

±1.00
-
+0.20/ -0.15
+0/ -0.5
-
±0.4
-
-
+60/ +20"

Tk3
75
1.8
2.2
55±0.2
-
10±2
25
5
90°

Tk5
87
1.8
3
60
-
16.4
25
3

Tolerance
0/0.7
-
+0.2/ -0.15
0/-0.5
±1
±0.4
-
-
+60/+20

Tk3A
78
1.8
2.2
60
10
16.4
25
3
90°

TK5A
78
1.8
3.2
60



If you are interested in our guide rail, welcome to contact us as below.
