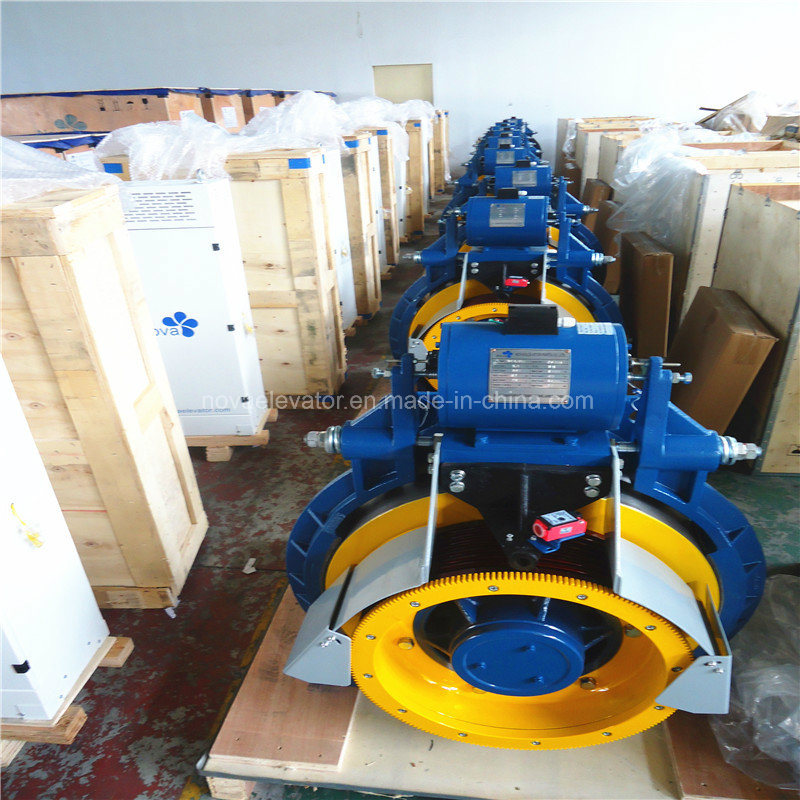

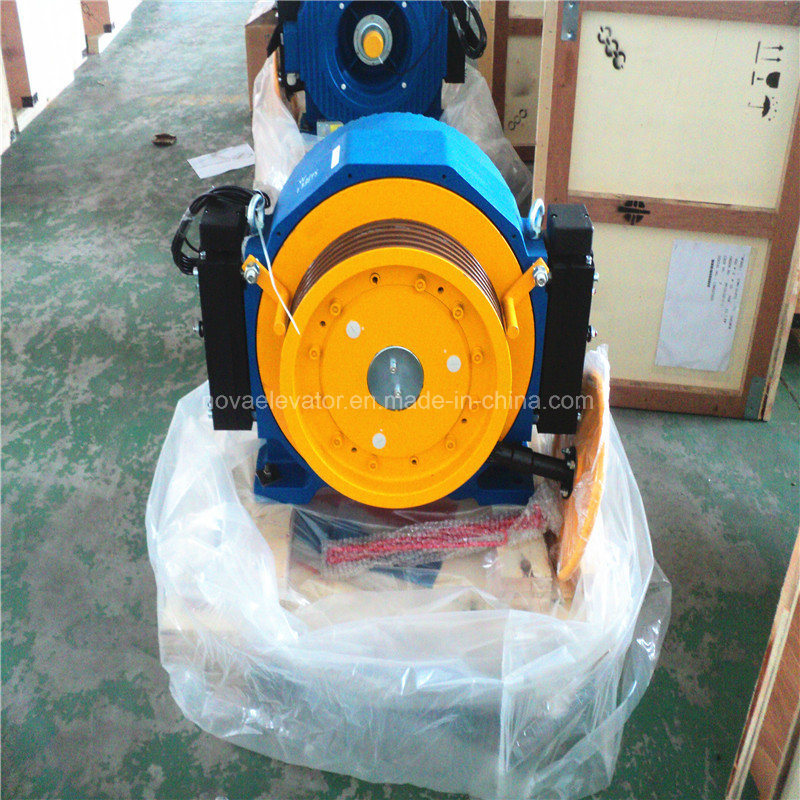

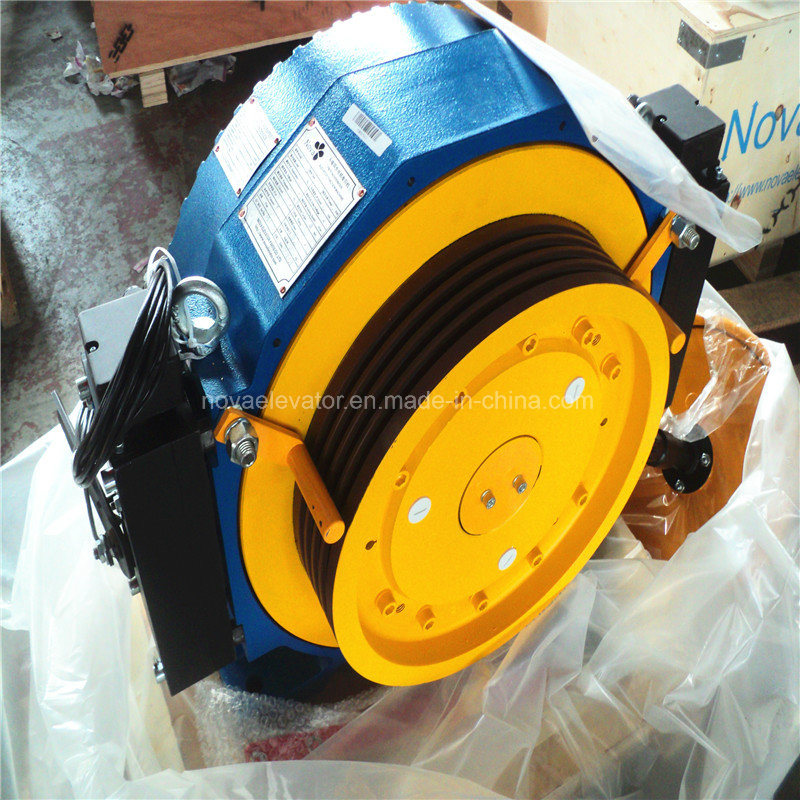

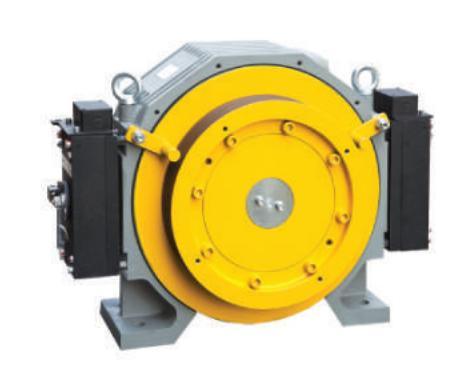

Elevator Gearless Traction Machine Motor with Roping 2: 1

Share to:

Elevator Gearless Traction Machine Motor with Roping 2: 1

Availability:

Quantity:



Inquire Add to Basket

After-sales Service:
Online Technical Support
Warranty:
1 Year
Driving Type:
AC Elevator
Capacity:
320-1600kg
Persons:
4-21 Persons
Speed:
0.5-4.0m/S

Product Description

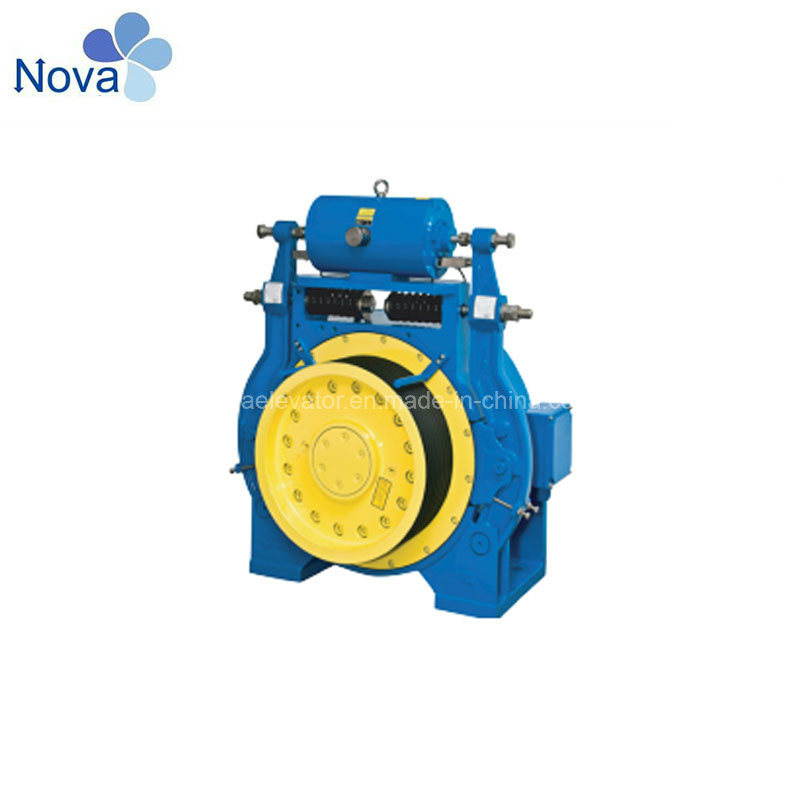

Gearless Traction Machine

NV41T-WTY Series(Roping=2:1)

Nova Code	Capacity(KGS)	Speed(m/s)	Power(KW)	Traction Sheave(mm)	Roping	Voltage(V)	Travel Height
NV41T-WTY1	1250	0.63	5.4	Φ4006Φ10*16	2:1	AC380V(Stanard) AC220V(Optional)	<=80M
		1	8.5	Φ4006Φ10*16
		1.5	12.7	Φ4006Φ10*16
		1.6	13.5	Φ4006Φ10*16
		1.75	14.8	Φ4006Φ10*16
		2	17	Φ4006Φ10*16
		2.5	22	Φ4006Φ10*16
	1350	1	9.3	Φ4008Φ10*16
		1.5	14	Φ4008Φ10*16
		1.6	14.9	Φ4008Φ10*16
		1.75	16.3	Φ4008Φ10*16
		2	18.7	Φ4008Φ10*16
		2.5	23.4	Φ4008Φ10*16
	1600	1	11	Φ4008Φ10*16
		1.5	16.4	Φ4008Φ10*16
		1.6	17.5	Φ4008Φ10*16
		1.75	19	Φ4008Φ10*16
		2	22	Φ4008Φ10*16
		2.5	27.7	Φ4008Φ10*16
NV41T-WTY2	2000	1	13.5	Φ5206Φ13*20
		1.6	22	Φ5206Φ13*20
		1.75	24	Φ5206Φ13*20
		2	27.5	Φ5206Φ13*20
		2.5	34.5	Φ5206Φ13*20
	2500	1	16.5	Φ5208Φ13*20
		1.6	27	Φ5208Φ13*20
		1.75	29.6	Φ5208Φ13*20
		2	34	Φ5208Φ13*20
		2.5	43	Φ5208Φ13*20
	3000	1	20	Φ5209Φ13*20
		1.6	31	Φ5209Φ13*20
		1.75	34	Φ5209Φ13*20
		2	39	Φ5209Φ13*20
		2.5	49	Φ5209Φ13*20

Nova welcomes you to visit our website or email us to get traction machine preliminary inquiry sheet for your selection to meet your specific requirements.

If you are interested in our traction machine, welcome to contact us as below.
