Elevator Compensation Chain
Elevator
3000kg
6-10
1.00-2.00m/s
AC

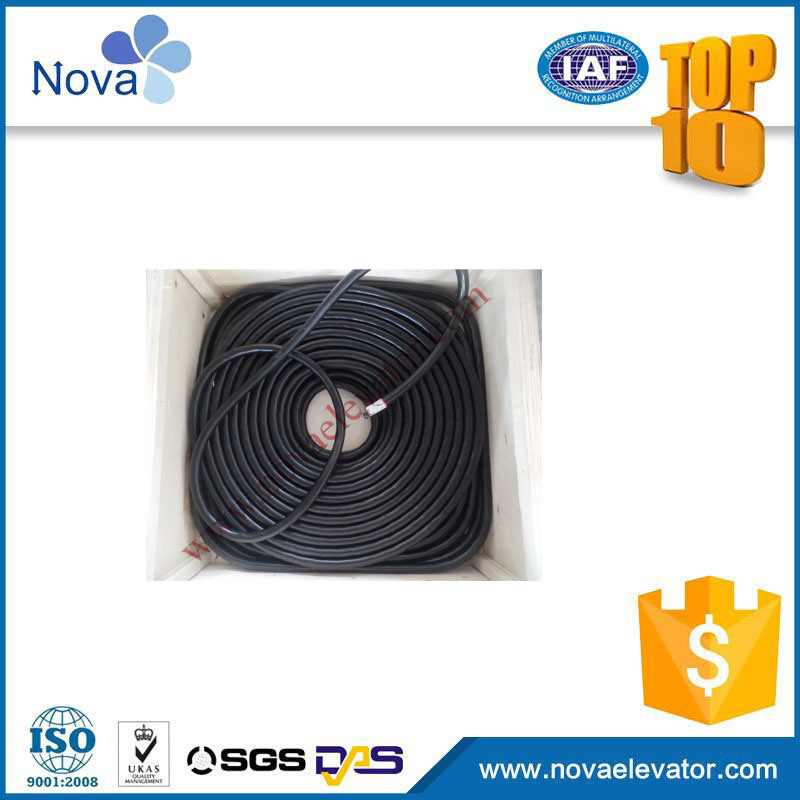

Elevator WFO Plastic Balance Compensation Chain for Elevators and Lifts
Basic parameters:
| Model No. | Unit Weight(kg/m) | External diameter(mm) | Min. bending diameter(mm) | Broken load(≥KN) |
| WFO 075 | 1.12±0.2 | 24±1.5 | 610 | 11.25 |
| WFO 100 | 1.49±0.2 | 29±1.5 | 610 | 13.32 |
| WFO 120 | 1.88±0.2 | 31±1.5 | 610 | 18.0 |
| WFO 150 | 2.23±0.2 | 35±1.5 | 610 | 23.66 |
| WFO 200 | 2.98±0.2 | 38±1.5 | 610 | 29.97 |
| WFO 250 | 3.72±0.2 | 42±1.5 | 610 | 40.82 |
| WFO 300 | 4.46±0.2 | 45±1.5 | 610 | 46.58 |
| WFO 350 | 5.2±0.1 | 49±1.5 | 610 | 53.4 |
| WFO 400 | 5.68±0.1 | 52±1.5 | 610 | 62.6 |
Colour selected: black, red, bule, green and so on
Related Products
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.
Elevator WFO Plastic Balance Compensation Chain for Elevators and Lifts
Basic parameters:
| Model No. | Unit Weight(kg/m) | External diameter(mm) | Min. bending diameter(mm) | Broken load(≥KN) |
| WFO 075 | 1.12±0.2 | 24±1.5 | 610 | 11.25 |
| WFO 100 | 1.49±0.2 | 29±1.5 | 610 | 13.32 |
| WFO 120 | 1.88±0.2 | 31±1.5 | 610 | 18.0 |
| WFO 150 | 2.23±0.2 | 35±1.5 | 610 | 23.66 |
| WFO 200 | 2.98±0.2 | 38±1.5 | 610 | 29.97 |
| WFO 250 | 3.72±0.2 | 42±1.5 | 610 | 40.82 |
| WFO 300 | 4.46±0.2 | 45±1.5 | 610 | 46.58 |
| WFO 350 | 5.2±0.1 | 49±1.5 | 610 | 53.4 |
| WFO 400 | 5.68±0.1 | 52±1.5 | 610 | 62.6 |
Colour selected: black, red, bule, green and so on
