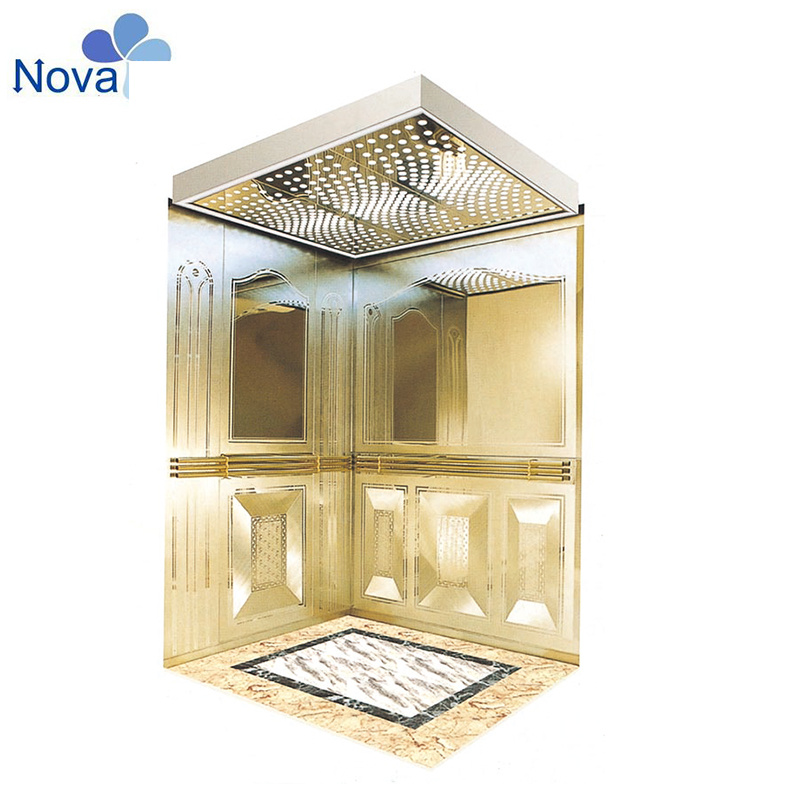

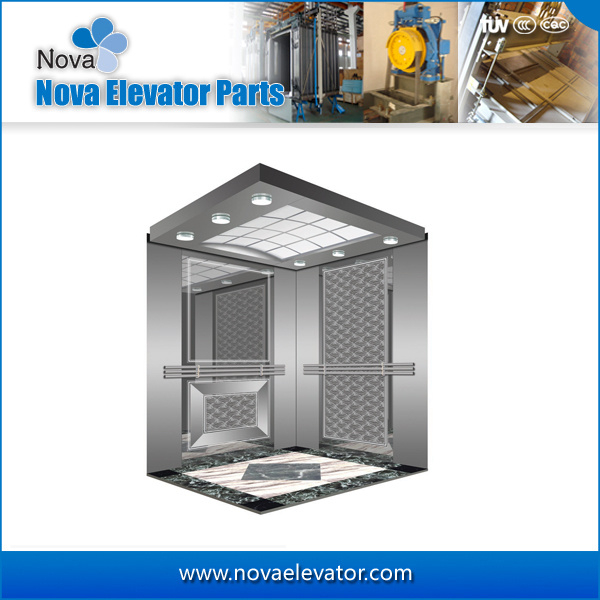

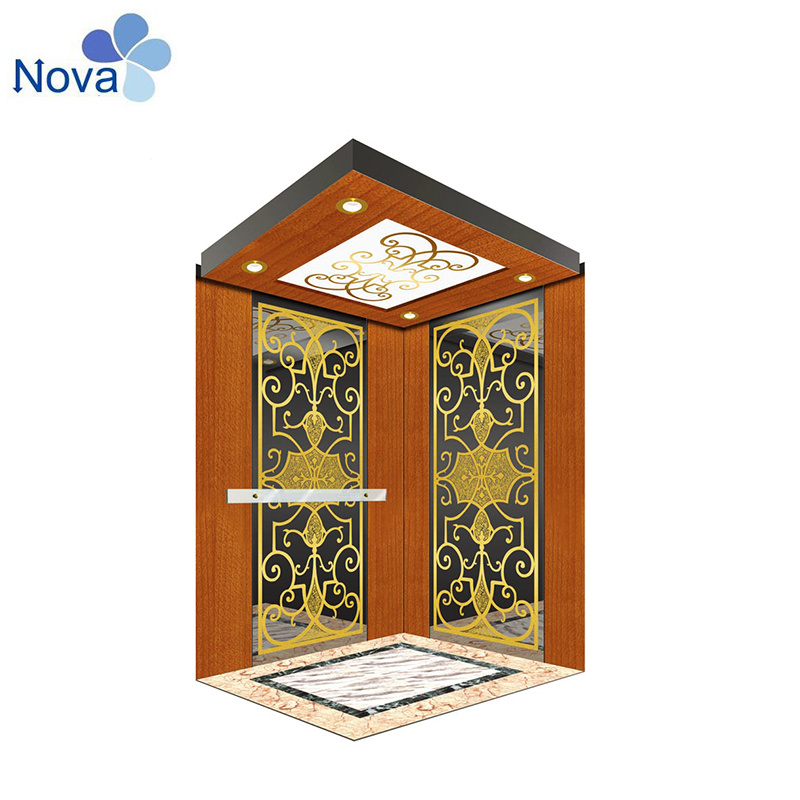

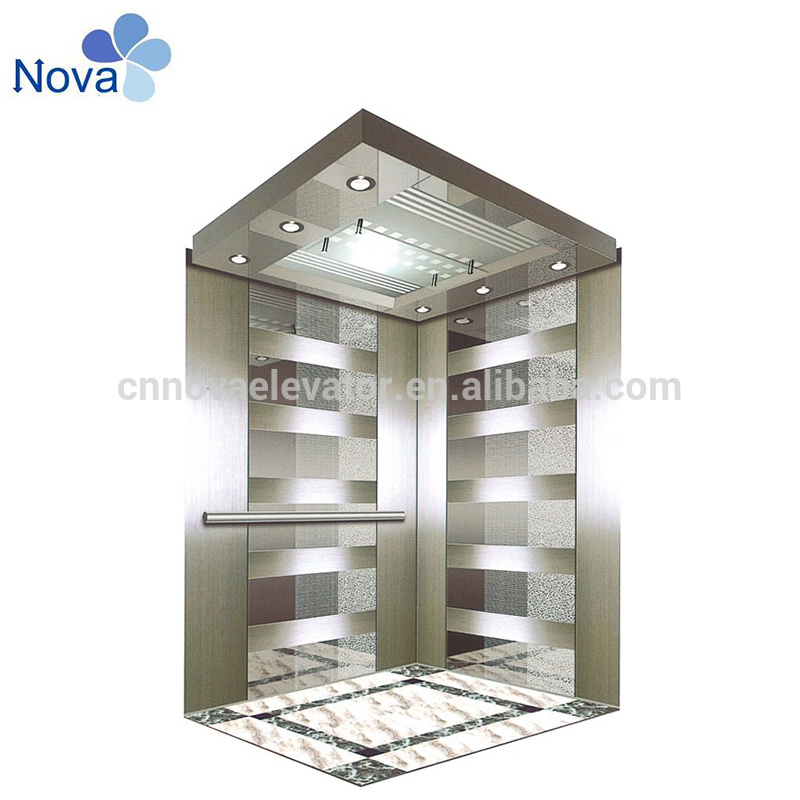

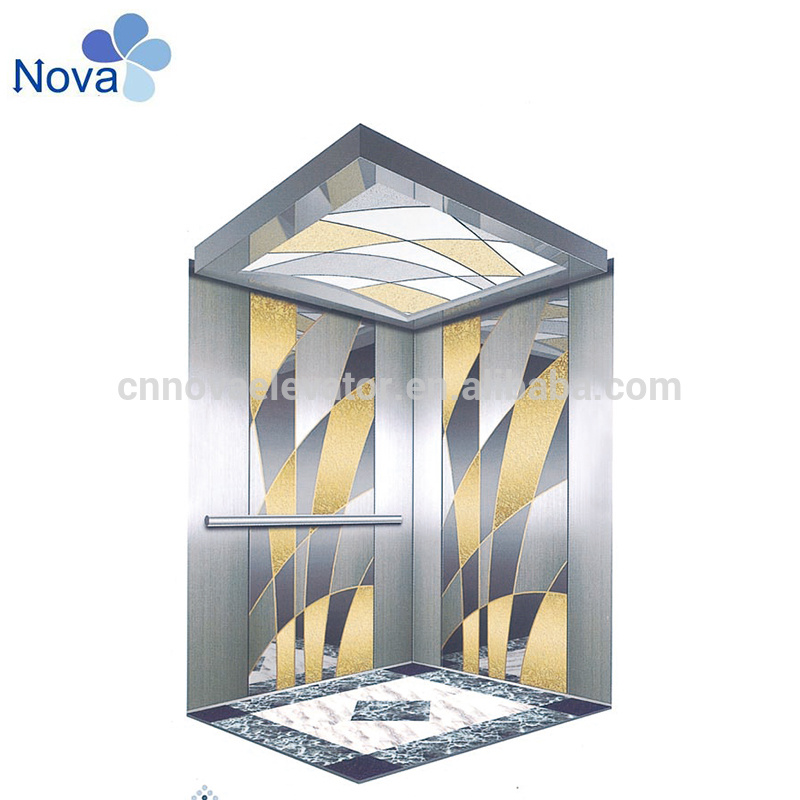

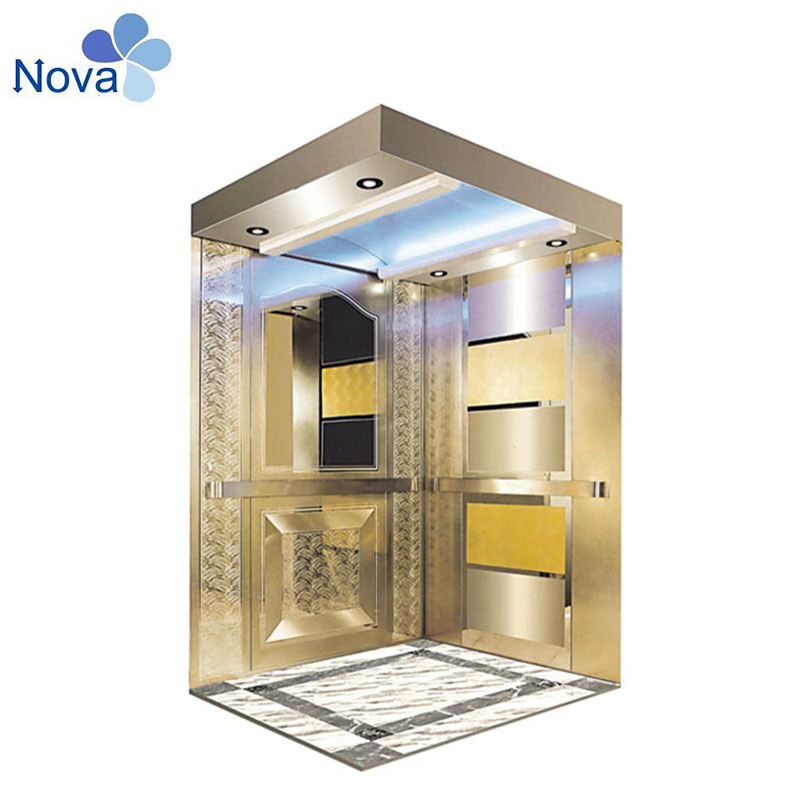

Elevator Cabin for Passenger Lift

Availability:
Quantity:
  • Online Technical Support

  • 1 Year

  • AC Elevator

  • 320-1600kgs

  • 4-21 Persons

  • 0.5-4.0m/S

1. We can supply different types of cabin as below:

Application

Passenger Elevator, Cargo Freight Elevator, Car Elevator, Villa Elevator, Hospital Elevator etc.

Cabin finish

Painted, HSS, Mirror Etching SS, Golden SS, Black Titanium SS

2. Ceiling, handrail and floor can be opitonal.
3. Nova standard cabin includes several assemblies listed as below:
3.1) Car Wall: Back Wall + Left Wall + Side Wall + Front Wall
3.2) Car Celling: LED
3.3) Car Floor: PVC or Marble
3.4) Handrail: Round or Flat
4. Nova standard car frame includes several assemblies listed as below:
4.1) Cross Beam(1 PC), Upright(2 PCS)and Bottom Beam(1 PC)
4.2) Limit Switch Touching Plate (1 PC)
4.3) Car Side Pulling Rod (4 PCS)
4.4) Oil Can (2 PCS)
4.5) Guide Shoes (4 PCS)
4.6) Lifting Pulling Rod For Safety Gear (1 PC or 2 PCS)
4.7) Safety Gear (1 Pair)
4.8) Safety Gear Linkage (1 PC)
4.9) Safety Gear Switch (1 PC)
5. Besides, we also supply extra assemblies as below:
5.1) Suppoting Bracket
5.2) Load Weighing Device
5.3) Buffer Striking End
5.4) Suspension Device(rope suspension or pulley sheave)

If you are interested in our cabin, pls feel free to contact us as below:
