Construction Safety Steel Wire Rope Sheave

Share to:

Construction Safety Steel Wire Rope Sheave

Availability:

Quantity:



Inquire Add to Basket

Type:
Driving System
Suitable for:
Elevator
Load Capacity:
400-1000kg
Persons:
6-10
Speed:
1.00-2.00m/s
Drive Mode:
AC

Product Description

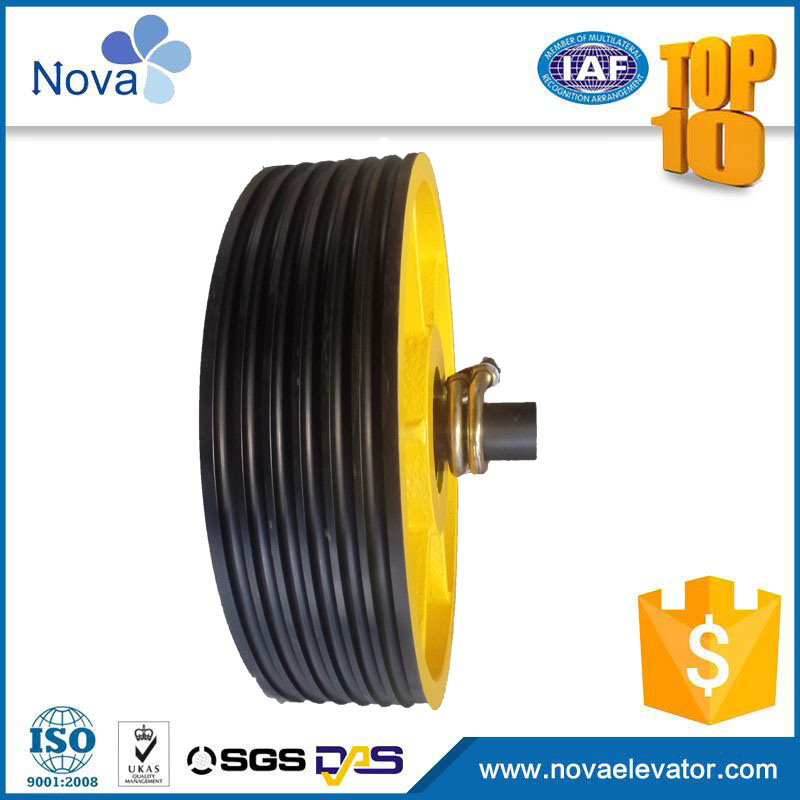

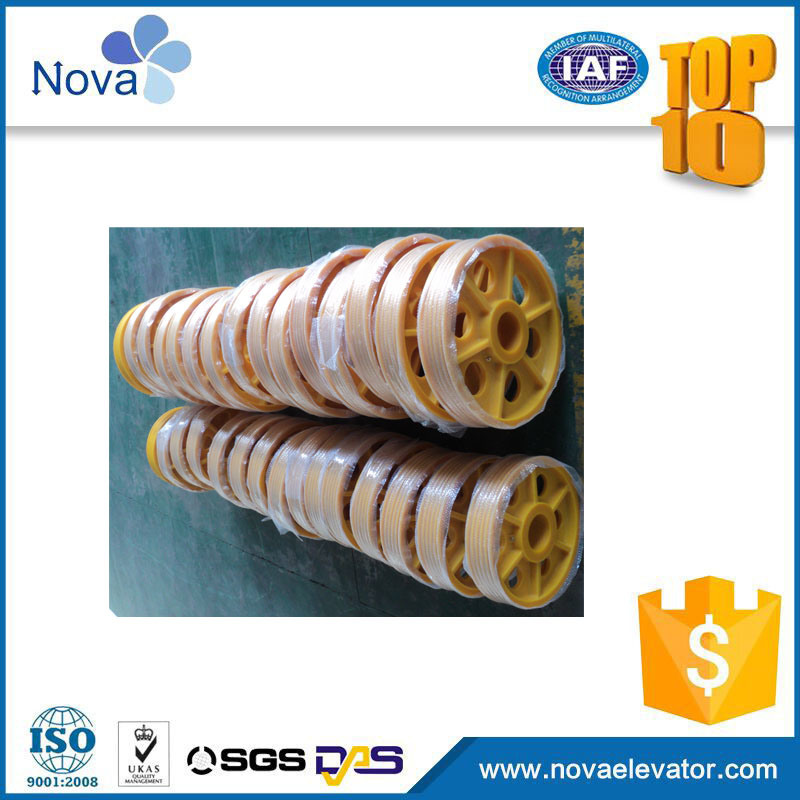

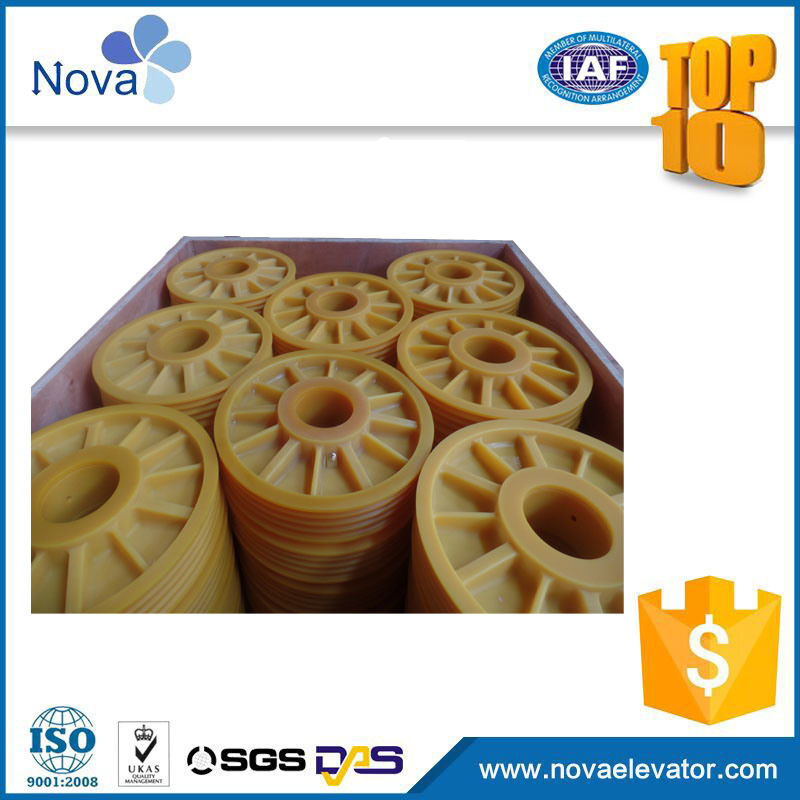

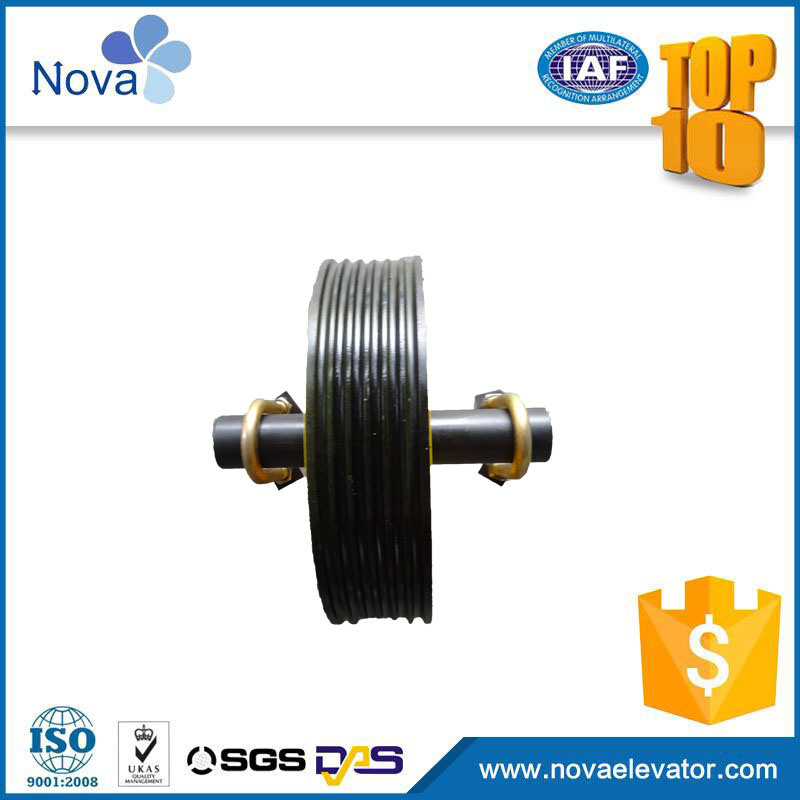

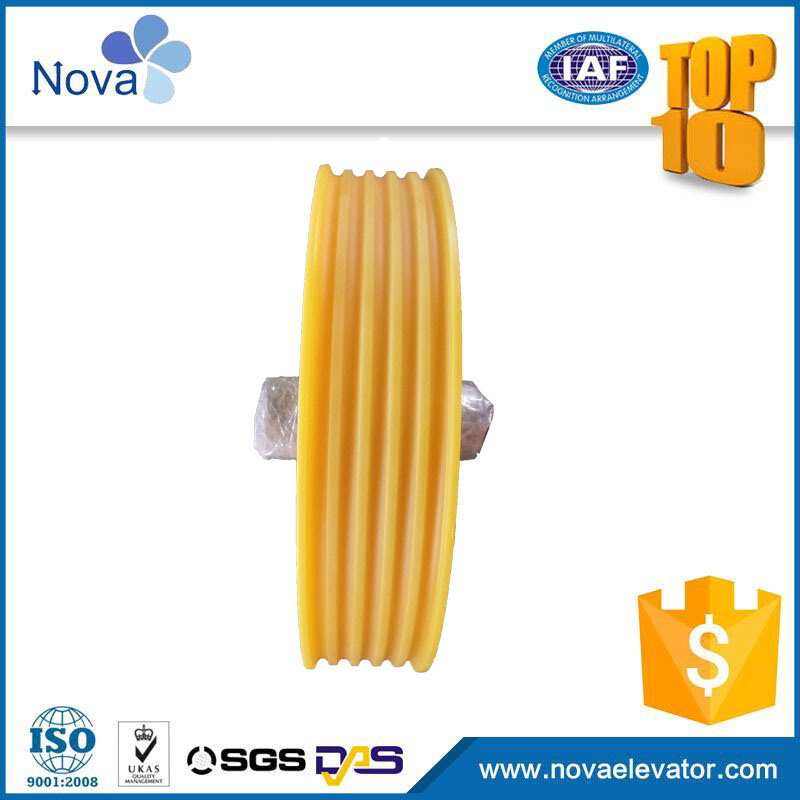

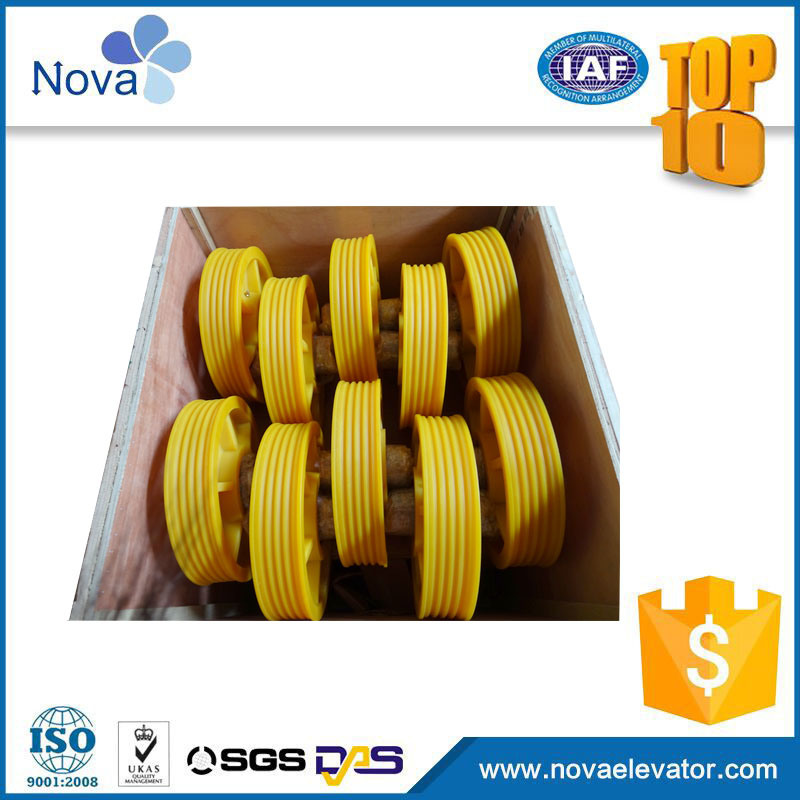

Construction safety steel wire rope sheave

Product Description

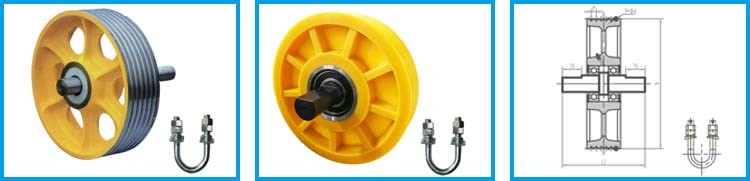

Specification

model	Diameter	Aperture	Number	Rope	Slot Pitch	Thickness	Thickness	Rated	Bearing
model	Diameter	Aperture	of slots	Rope	Slot Pitch	Thickness	Thickness	load	Bearing
	D	E	N	d	P	H	h	Q
NV-240-01	φ240	80	2	6.5	10	42	60	≤450KG	6206
NV-240-02		80	3	6.5	10	42	80	≤800KG	6208
NV-240-03		90	4	6.5	10	52	80	≤800KG	6210
NV-240-04		110	5	6.5	10	65	80	≤1000KG	6212
NV-320-01	φ320	110	3	8	12	52	80	≤630KG	6212
NV-320-02			3	8	13	52	80	≤630KG
NV-320-03			4	8	12	65	80	≤800KG
NV-320-04			4	8	13	65	80
NV-320-05			5	8	12	72	80
NV-320-06			5	8	13	72	80
NV-320-07		130	6	8	12	90	95	≤1600KG	6312
NV-320-08		130	6	8	13	90	95	≤1600KG	6312
NV-320-09		140	7	8	12	104	95	≤1600KG	6216
NV-320-10			7	8	13	104	95
NV-320-11			8	8	12	115	120
NV-320-12			8	8	13	115	120
NV-360-01	φ360	110	3	8	12	52	80	≤630KG	6212
NV-360-02			3	9	13	52	80
NV-360-03			4	8	12	65	80
NV-360-04			4	9	13	65	80
NV-360-05			5	8	12	78	95	≤1000KG
NV-360-06			5	9	13	78	95	≤1000KG
NV-360-07		130	6	8	12	90	95	≤1600KG	6312
NV-360-08		130	6	9	13	90	95	≤1600KG	6312
NV-360-09		140	7	8	12	108	95	≤1500KG	6313
NV-360-10		140	7	9	13	108	95		6313
NV-360-11		150	8	8	12	115	115		6314
NV-360-12		150	8	9	13	115	115		6314
NV-400-01	φ400	110	3	8	12	60	80	≤1000KG	6212
NV-400-02			3	8	13
NV-400-03			3	10	15
NV-400-04			3	10	16
NV-400-05			4	8	12
NV-400-06			4	8	13
NV-400-07			4	10	15	70	95
NV-400-08			4	10	16
NV-400-09			5	8	12
NV-400-10			5	8	13
NV-400-11		φ130	5	10	15	90	95	≤1600KG	6312
NV-400-12			5	10	16
NV-400-13			6	8	12
NV-400-14			6	8	13
NV-400-15			6	10	15	105	95
NV-400-16			6	10	16
NV-400-17			7	8	12
NV-400-18			7	8	13
NV-400-19		φ140	7	10	15	124	120	≤2000KG	6313
NV-400-20			7	10	16
NV-400-21			8	8	12
NV-400-22			8	8	13
NV-400-23			8	10	15	140	120
NV-400-24			8	10	16
NV-400-25			9	8	12
NV-400-26			9	8	13
NV-440-01	φ440	φ110	3	10	15	60	80	≤1000KG	6212
NV-440-02			3	10	16
NV-440-03			4	8	12
NV-440-04			4	8	13
NV-440-05		φ130	4	10	15	72	95	≤1600KG	6312
NV-440-06			4	10	16
NV-440-07			5	8	12
NV-440-08			5	8	13
NV-440-09			5	10	15	90	95
NV-440-10			5	10	16
NV-440-11			6	8	12
NV-440-12			6	8	13
NV-440-13		φ140	6	10	15	105	95	≤2000KG	6313
NV-440-14			6	10	16
NV-440-15			7	8	12
NV-440-16			7	8	13
NV-480-01	φ480	φ110	3	10	15	60	80	≤1000KG	6212
NV-480-02			3	10	16
NV-480-03			4	8	12
NV-480-04			4	8	13
NV-480-05		φ130	4	10	15	72	95	≤1600KG	6312
NV-480-06			4	10	16
NV-480-07			5	8	12
NV-480-08			5	8	13
NV-480-09			5	10	15	90	95
NV-480-10			5	10	16
NV-480-11			6	8	12
NV-480-12			6	8	13
NV-480-13		φ140	6	10	15	105	95	≤2000KG	6313
NV-480-14			6	10	16
NV-480-15			7	8	12
NV-480-16			7	8	13
NV-520-01	φ520	φ130	3	13	20	70	95	≤1000KG	6312
NV-520-02			4	10	15
NV-520-03			4	10	16
NV-520-05			4	13	20	90	95
NV-520-06			5	10	15
NV-520-07			5	10	16
NV-520-08			5	13	20	108	95	≤1600KG	6312
NV-520-09			6	10	15
NV-520-10			6	10	16
NV-520-11		φ140	6	13	20	128	120	≤2000KG	6313
NV-520-12			7	10	15
NV-520-13			7	10	16
NV-520-14		φ150	8	13	20	168	148	≤3000KG	6314
NV-520-15			10	10	15
NV-520-16			10	10	16
NV-640-01	φ640	φ160	5	16	25	132	120	≤3000KG	6315
NV-640-02		φ160	6	13	20	132	120	≤3000KG	6315
NV-640-03		φ170	6	16	25	160	140	≤5000KG	6316
NV-640-04		φ170	7	13	20	160	140	≤5000KG	6316

Construction Safety Steel Wire Rope Sheave

·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.

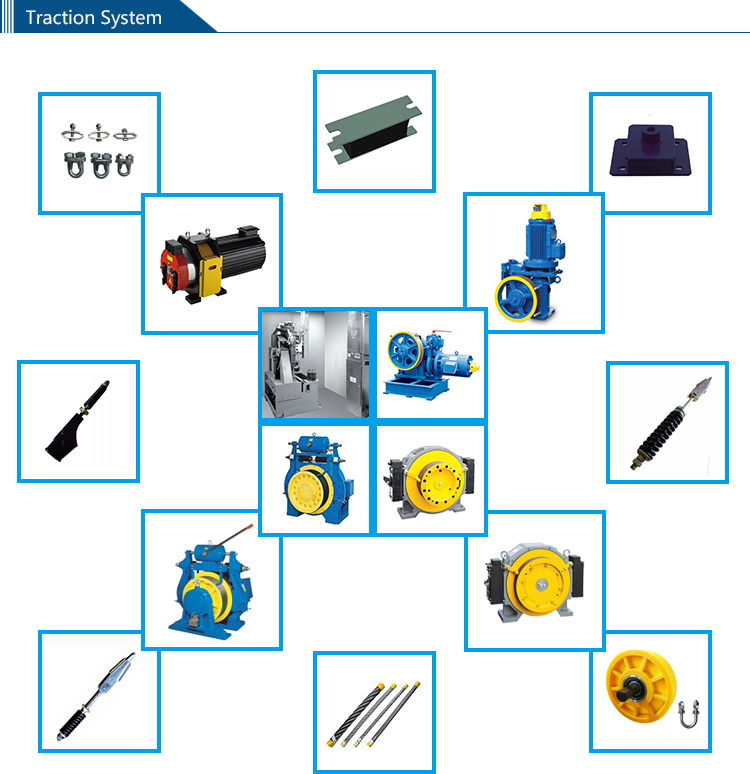

·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.

Construction Safety Steel Wire Rope Sheave

Our Services
1.Help Customers Source in China to Reduce their Cost
To provide customers with whole purchasing plan of elevator parts;
To find out the best conjunction point between quality and price to reduce costs for thrm.

2.How to develop the suppliers for customers
To get customers' need throughing communicating;
To find out three to four customers of thr corresponing parts according to the request of the customers.

3.Customers ask price and get samples from the factories.
To visit the factory(acknowledge the productin ability and quality control process);
Basing on the price,sample and visiting,recommend factory to our customers.

4.How to help customers order from the qualified suppliers.
Follow the process of order;
Send QC to inspect on site before shipping to acknowledge the product quality;
Transfer the response from the customers to suppliers on time, and follow up the improvement.

5.Special package services
Gather sourced parts for dispatch;
Help customers shipping products directly to the working site oversea;
Quick reponse.

FAQ

1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.

2. Payment term
Re: T/T or L/C at sight.

3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.

4. Shipping≺ice term

Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.

Deflector Sheave Vvvf Elevator Construction Safety Steel Wire Rope Sheave
