AC Elevator
450-1600kgs
6-21 Persons
0.5-4.0m/S

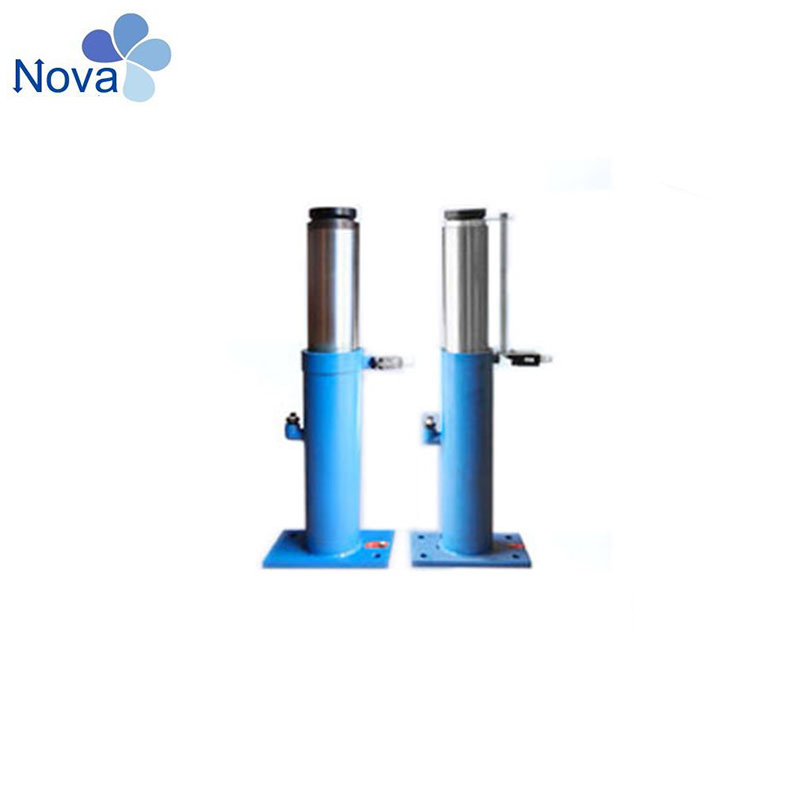

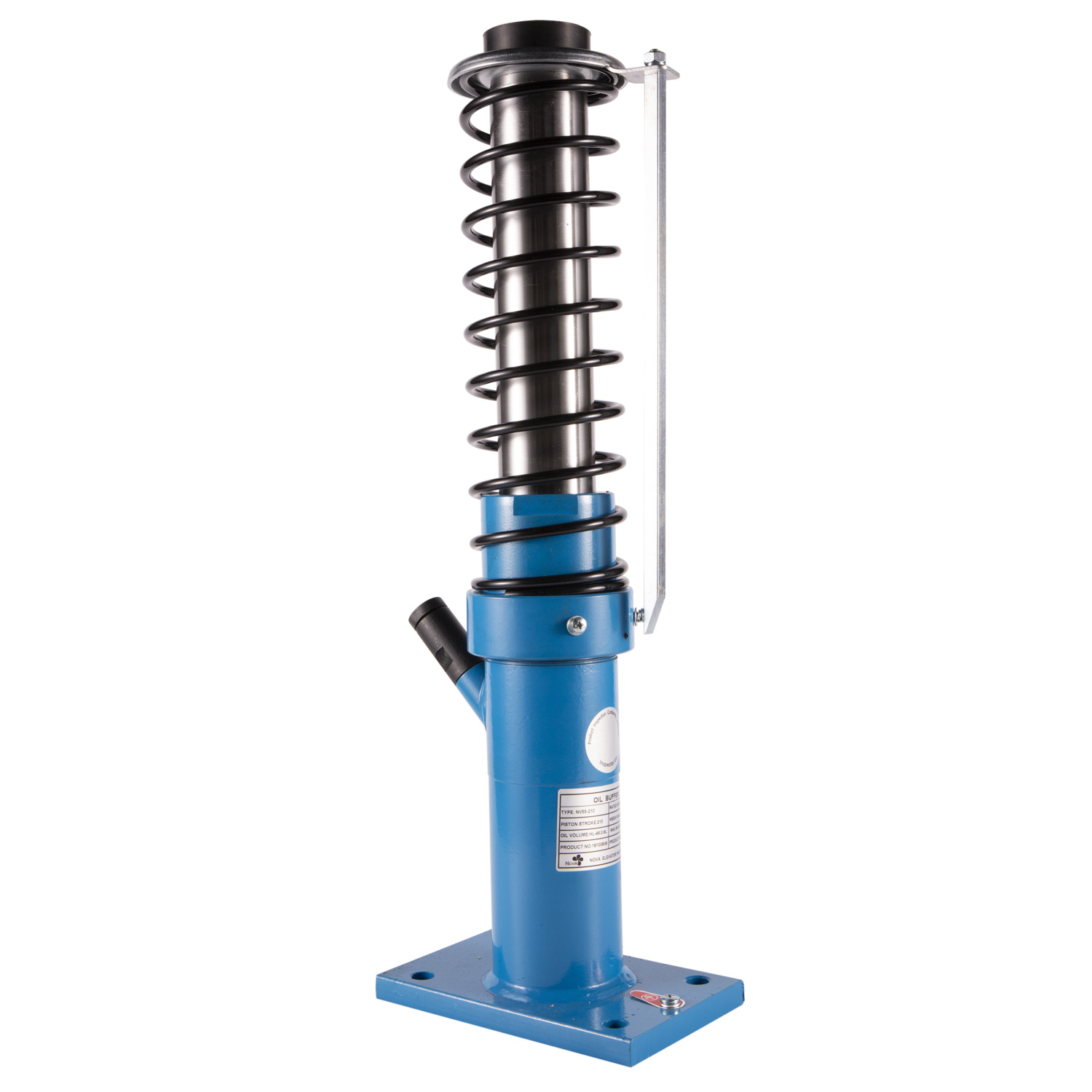

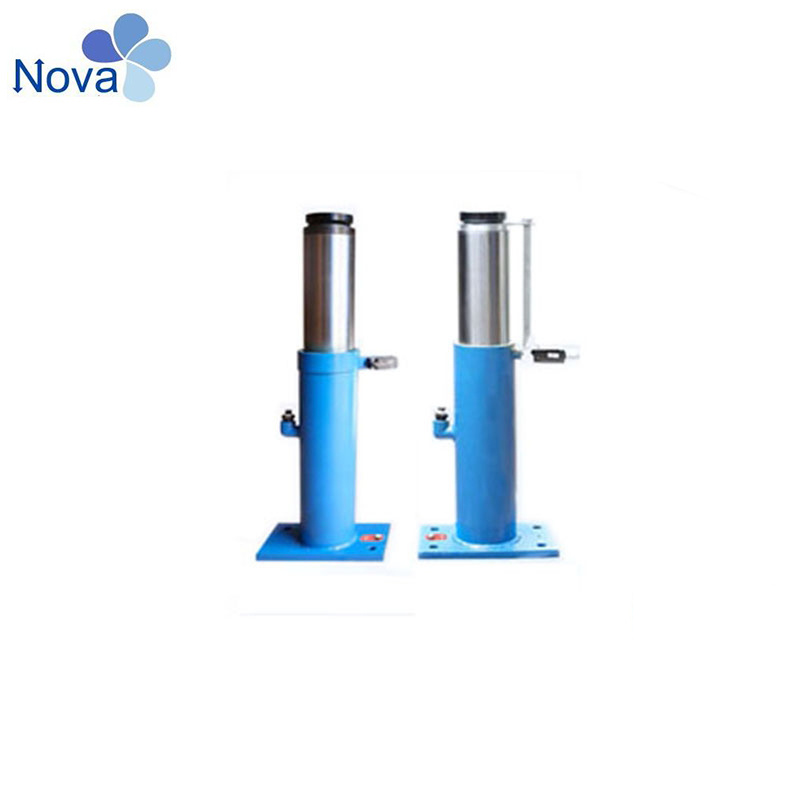

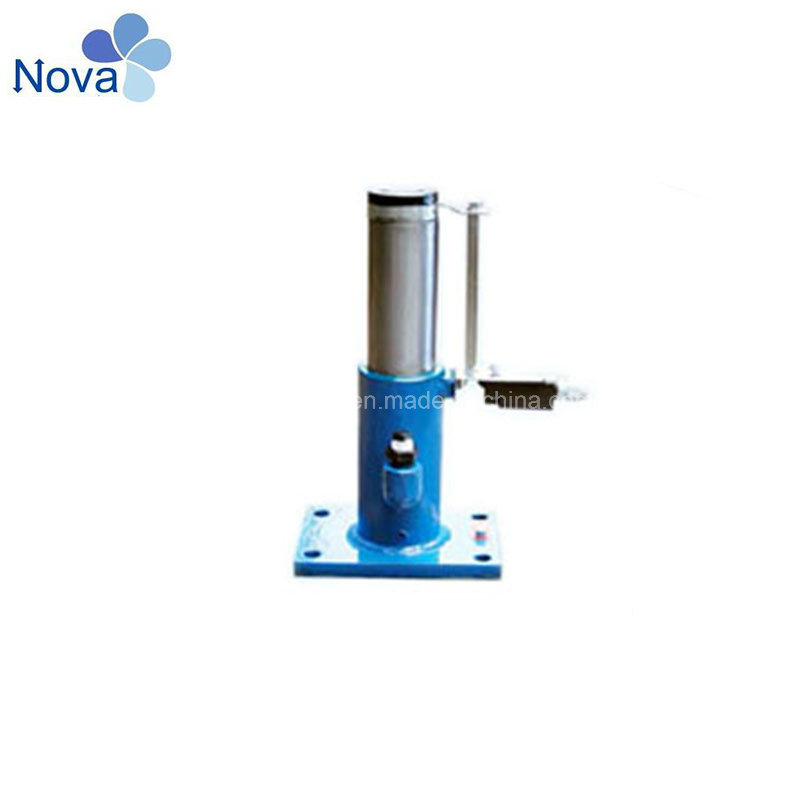

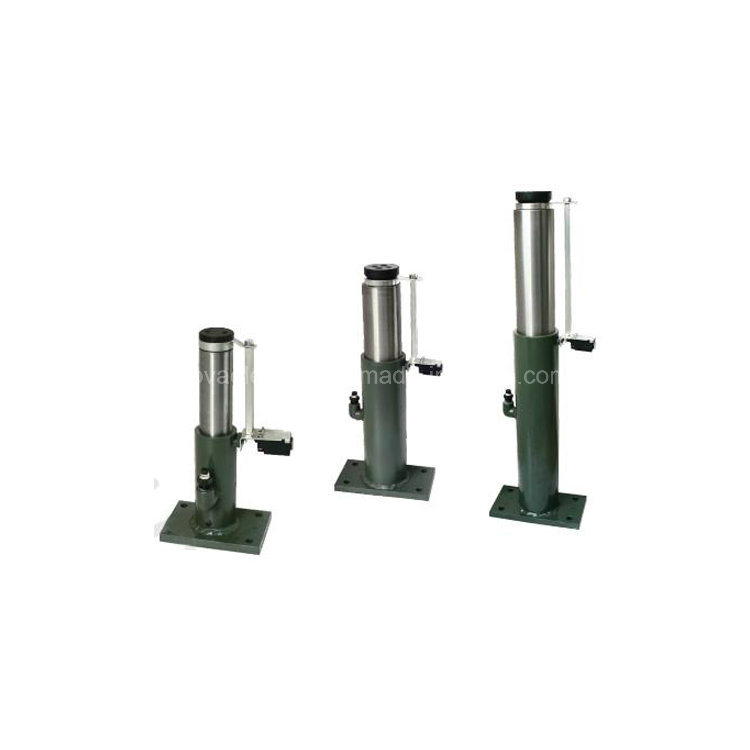

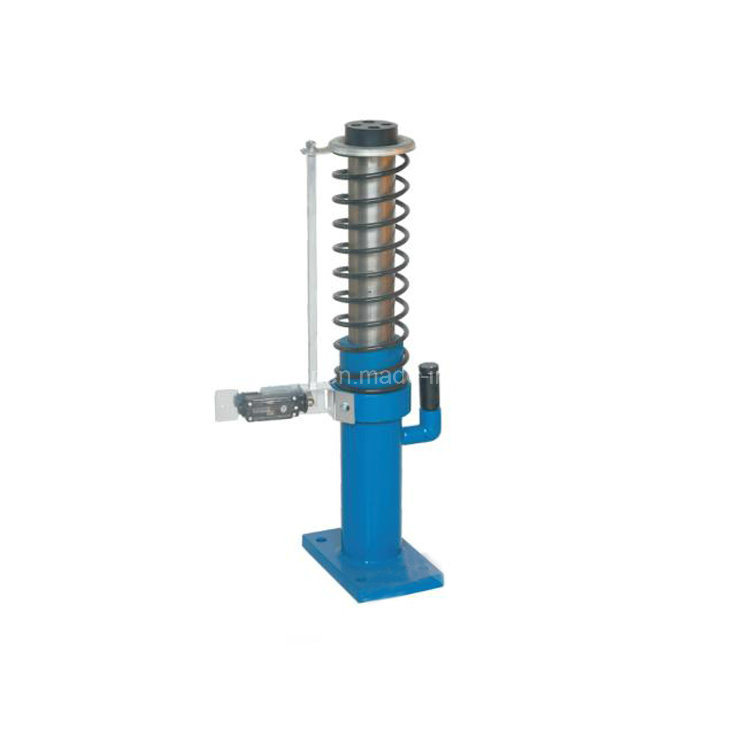

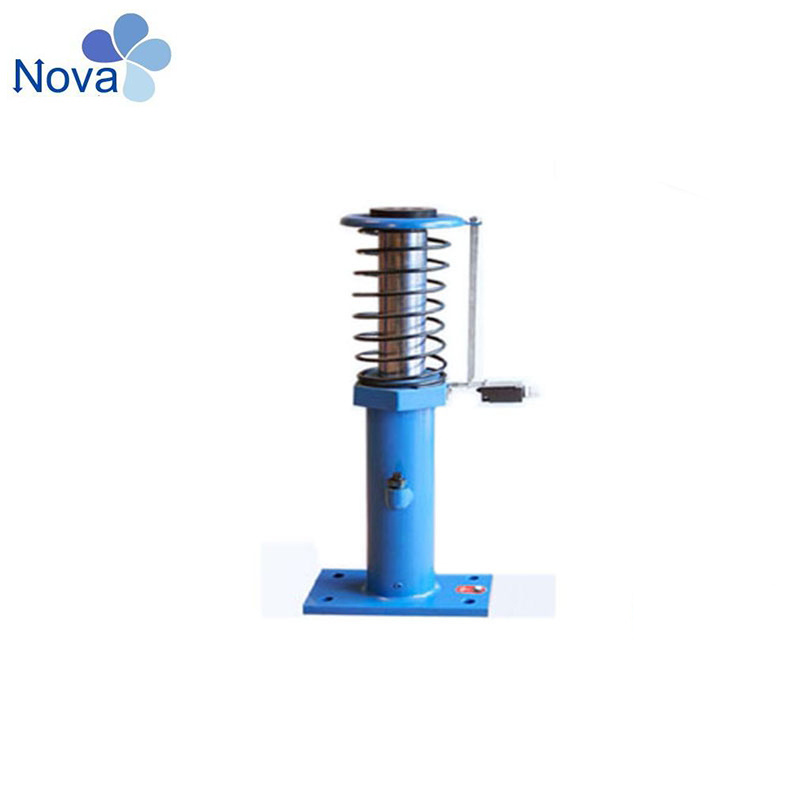

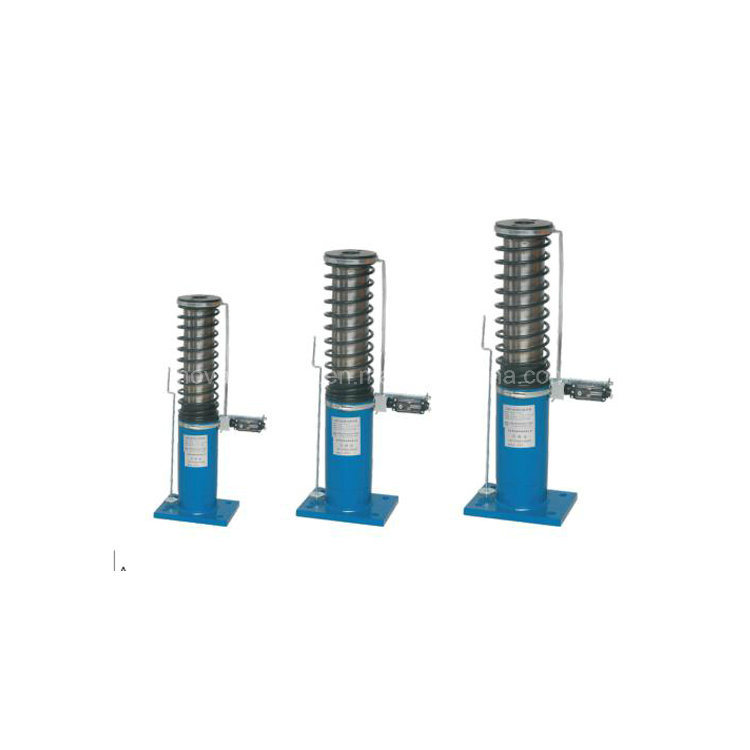

Buffer is device to provide a final elevator safety protection generally installed in the elevator shaft bottom pit, located right under the car and counterweight. When the elevator runs upward or downward, it may overrun terminal floor bottom or top because of accidental ineffective braking. Buffer provides absorption to avoid elevator car or counterweight from hitting bottom or top to protect safety for passengers and devices. | Nova Code | Rated Speed(m/s) | P+Q(KGS) | Compression Travel(mm) | Free State(mm) |
| NV55-65 | <=0.63m/s | 500-4600 | 65 | 350 |
| NV55-70 | <=1m/s | 300-2500 | 70 | 305 |
| NV55-80 | <=1m/s | 600-3000 | 80 | 315 |
| NV55-80A | <=1m/s | 1000-4600 | 80 | 405 |
| NV55-175 | <=1.6m/s | 600-3000 | 175 | 510 |
| NV55-210 | <=1.75m/s | 700-3600 | 210 | 600 |
| NV55-220 | <=1.75m/s | 600-2500 | 220 | 780 |
| NV55-275 | <=2.0m/s | 800-3800 | 275 | 790 |
| NV55-425 | <=2.5m/s | 820-3600 | 425 | 1130 |
| NV55-10 | <=1m/s | 300-2500 | 100 | 390 |
| NV55-16 | <=1.6m/s | 700-5300 | 175 | 625 |
| NV55-20 | <=2m/s | 1000-5300 | 290 | 915 |
| NV55-J11 | <=0.63m/s | 500-1500 | 35-55 | 60 |
| NV55-J21 | <=1m/s | 600-4500 | 80-140 | 145 |
FAQ
1. Price
Re: please send us inquiry from Made in China, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping≺ice term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
