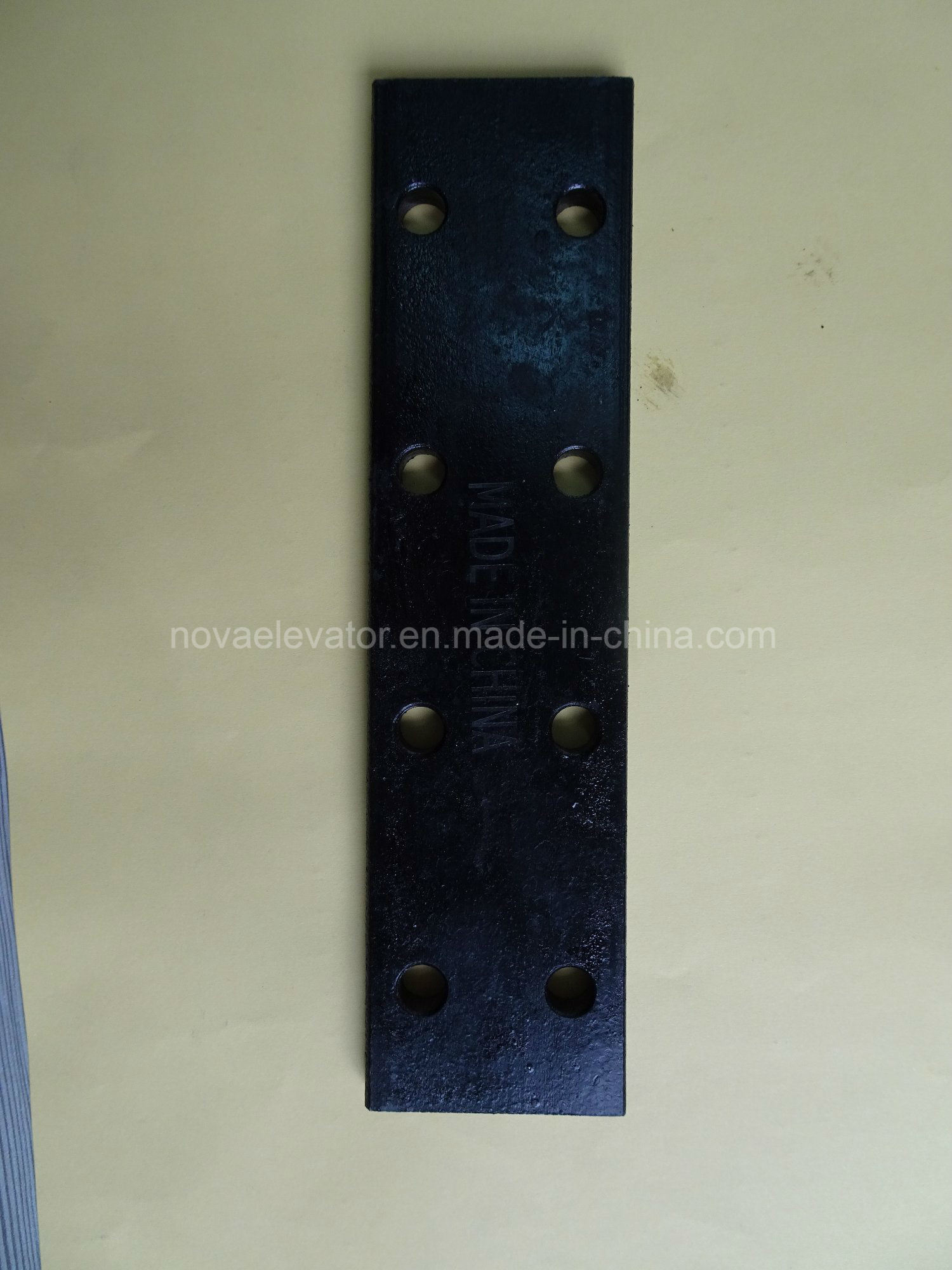

China Supplier Good Quality Elevator Part Fishplate for Guide Rail

Share to:

China Supplier Good Quality Elevator Part Fishplate for Guide Rail

Availability:

Quantity:



Inquire Add to Basket

Type:
Driving System
Suitable for:
Elevator
Load Capacity:
100-5000kgs
Persons:
6-10
Speed:
1.00-2.00m/s
Drive Mode:
Moving

Product Description

1. With more than 20 years experience in manufacturing elevator guide rails, Nova has been supplying and exporting elevator guide rails in big volume every year.
2. Our Guide Rail are strict follow ISO7465/2007, GB-T22562/2008
3. We are SJEC,FUJI, IFE, TOSHIBA Supplier
4. We make OEM for MARAZZI, MONTEFERRO, SAVERA

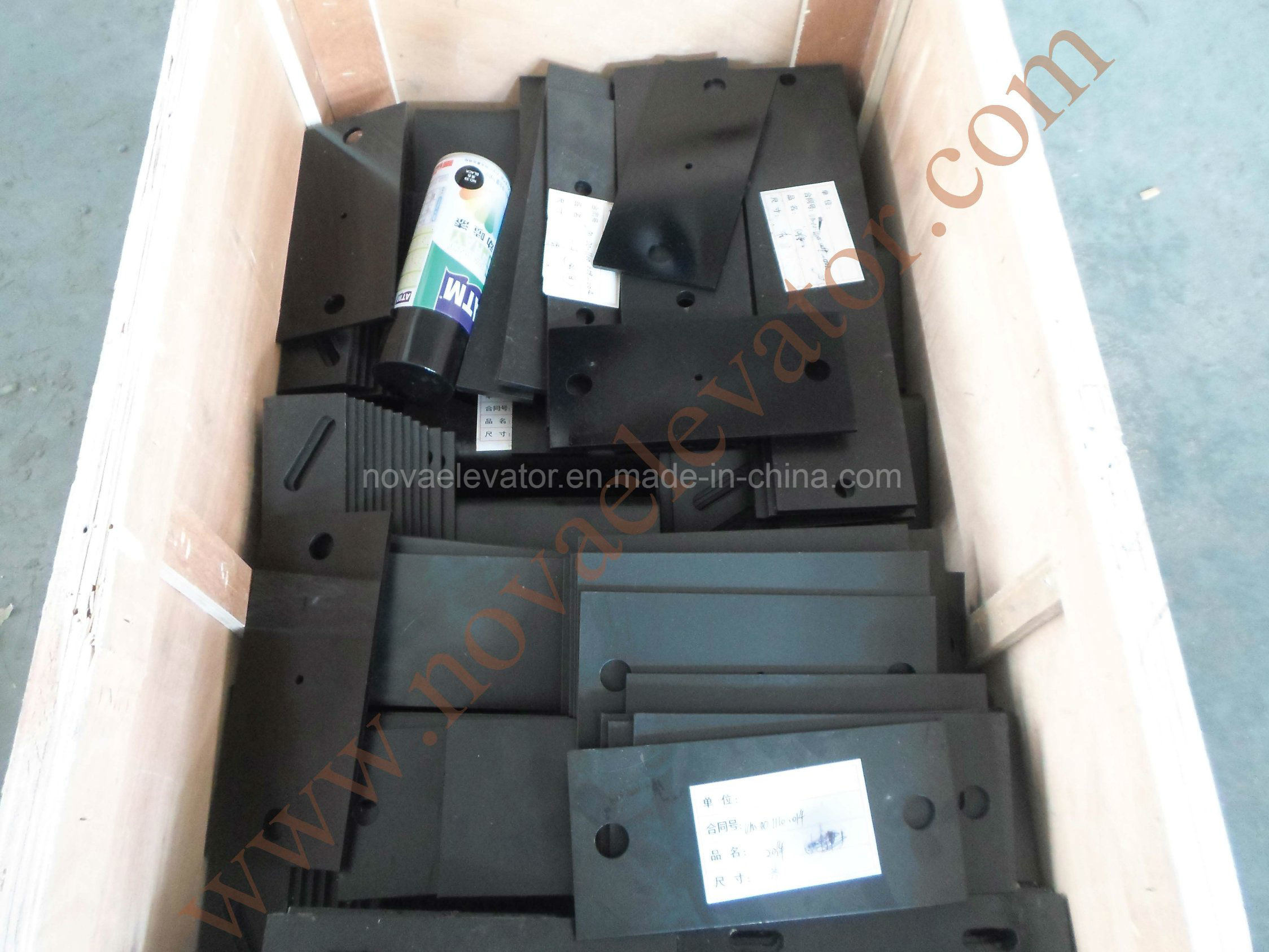

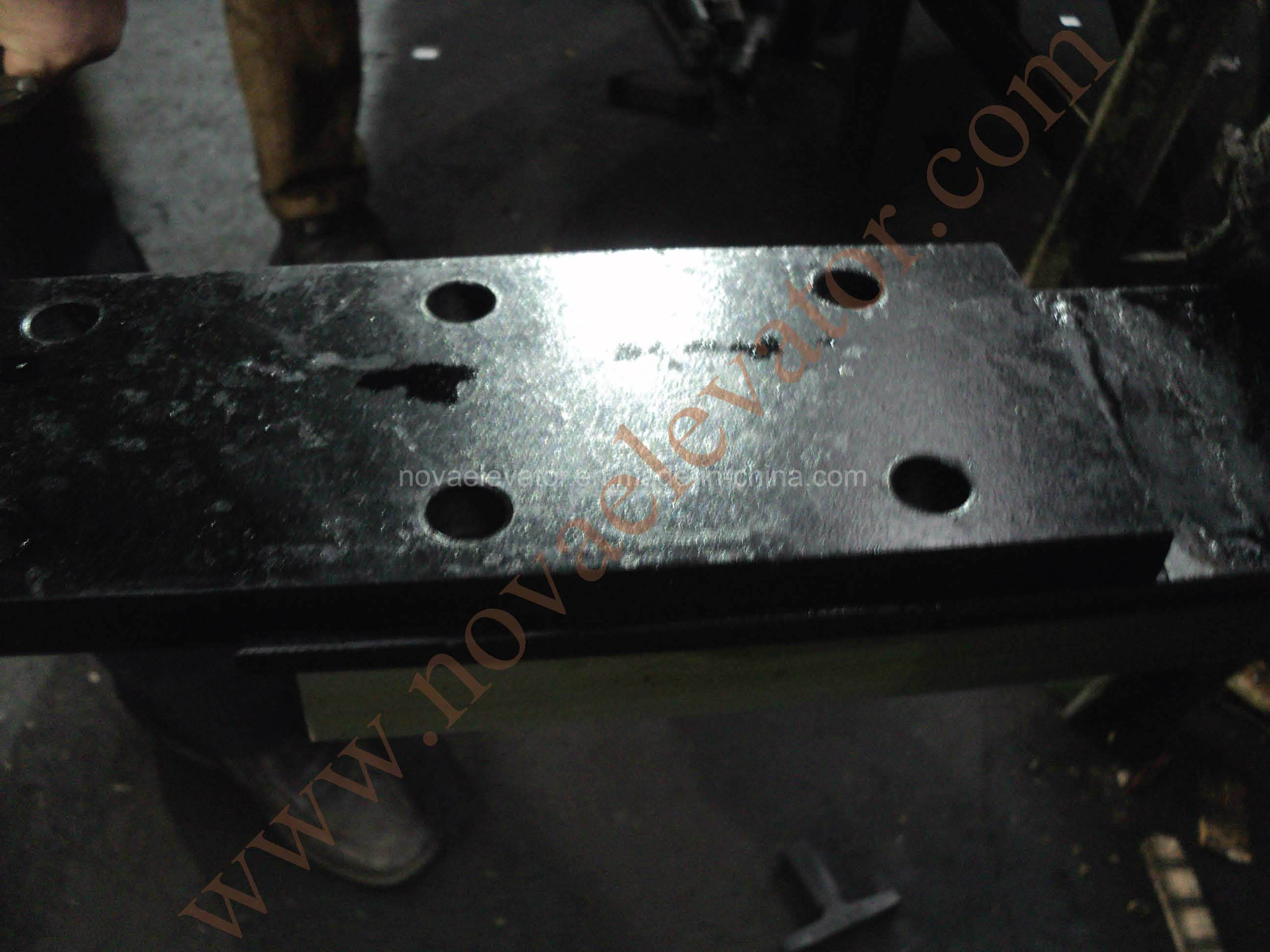

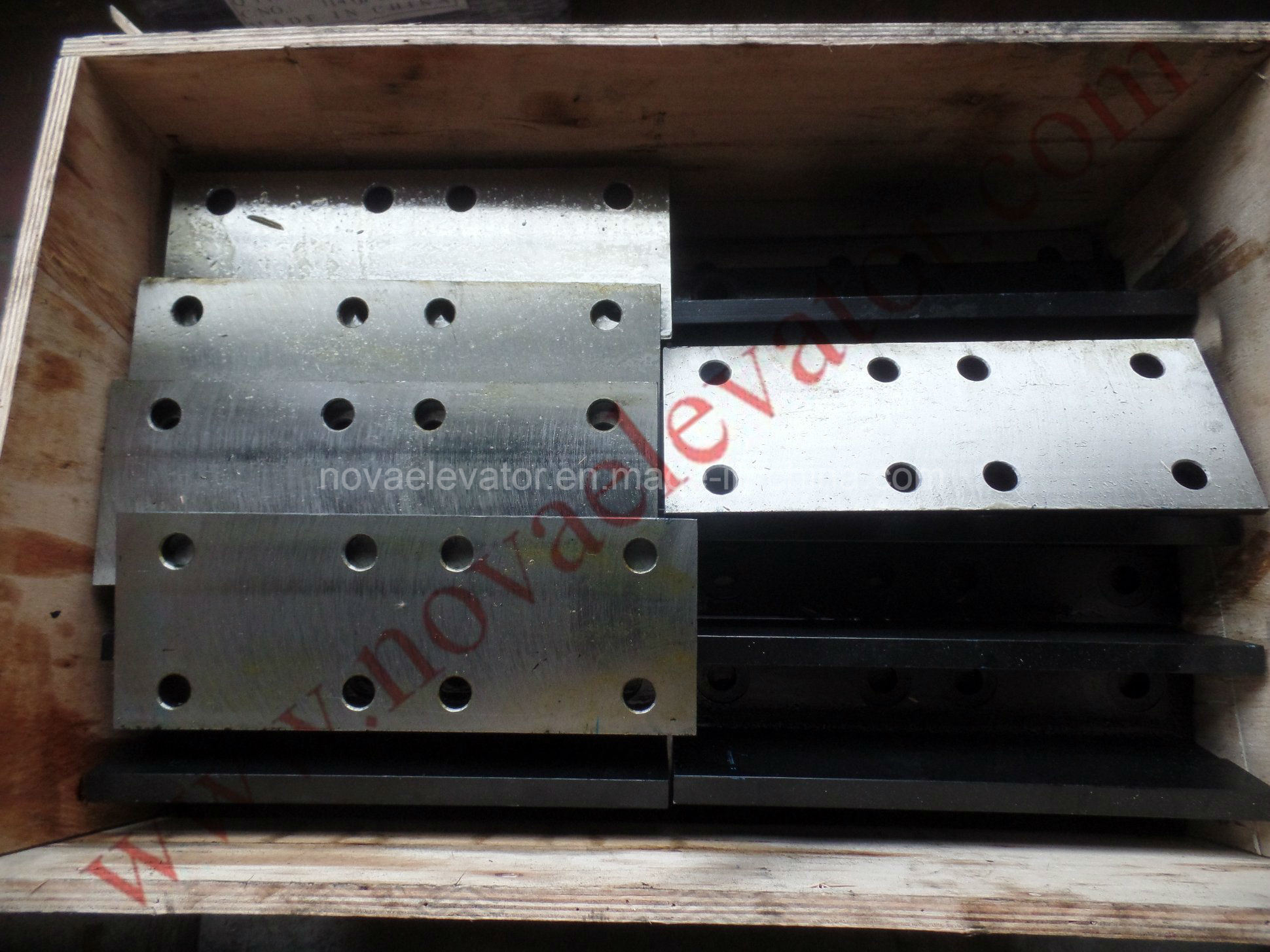

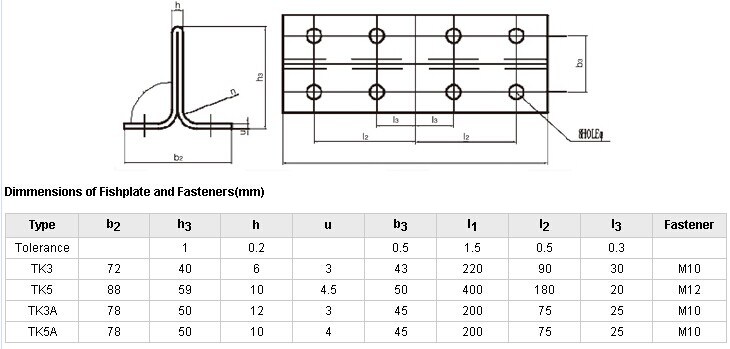

Fishplate Dimensions and Tolerance For NOVA Standard Guide Rails-ISO7465/GB-T22562/2008

China Supplier Good Quality Elevator Part Fishplate for Guide Rail

1. Cold Drawn Guide Rail

Type	b1	h1	k	p	rs	l2	l3	d	b3	n	c	f	g	m1	m2	u1	u2	d	d1
T45/A	45	45	5	5	1	65	15	9	25	-	-	-	-	-	-	-	-	-	-
T50/A	50	50	5	5	1	75	25	9	30	-	-	-	-	-	-	-	-	-	-
Tolerances	±1	±0.2	±0.15	±0.5	-	±0.2	±0.2	-	±0.2	-	-	-	-	-	-	-	-	-	-
T70/A	70	65	9	-	15	105	25	9	42	34	6	6	8	3	2.97	3.5	3	13	26
Tolerances	±1	±0.1	+0.1/0	-	-	±0.2	±0.2	-	±0.2	+3/0	-	±0.75	±0.75	-	+0.06/0	0/-0.06	±0.10	-	-

2. Machined Guide Rail

Type	b1	h1	h	k	n	c	f	g	rs	m1	m2	u1	u2	d	d1	b3	i2	i3	l
Tolerances (standard)	±1.5	±0.75	±0.1	+0.1/0	+3/0	-	±0.75	±0.75	-	+0.06/0	0/-0.06	±0.10	±0.10	-	-	±0.2	±0.2	±0.2	+3/0
T70/B	70	65	64	9	34	6	8	6	1.5	3	2.97	3.5	3	13	26	42	105	25	128
T75/B	75	62	61	10	30	8	9	7	3	3	2.97	3.5	3	13	26	42	105	30	123
T78/B	78	56	55	10	26	7	8.5	6	2.5	3	2.97	3.5	3	13	26	42	105	38	138
T82/B	82	68.25	66.6	9	26	7.5	8.25	6	3	3	2.97	3.5	3	13	26	50.8	81	27	111
T89/B	89	62	61	16	34	10	11.1	7.9	3	6.4	6.37	7.14	6.35	13	26	57.2	114.3	38.1	156
T90/B	90	75	74	16	42	10	10	8	4	6.4	6.37	7.14	6.35	13	26	57.2	114.3	38.1	156
T114/B	114	89	88	16	38	9.5	11	8	4	6.4	6.37	7.14	6.35	17	33	70	114.3	38.1	156
T127-1/B	127	89	88	16	45	10	11	8	4	6.4	6.37	7.14	6.35	17	33	79.4	114.3	38.1	156
T127-2/B	127	89	88	16	51	10	15.9	12.7	5	6.4	6.37	7.14	6.35	17	33	79.4	114.3	38.1	156
T140-1/B	140	108	107	19	51	12.7	15.9	12.7	5	6.4	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193
T140-2/B	140	102	101	28.6	51	17.5	17.5	14.5	5	6.4	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193
T140-3/B	140	127	126	31.75	57	19	25.4	17.5	5	6.4	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193

3. Hollow Guide Rail

Type	b1	c	f	h1	h2	k	m	r1	a
Type	±1.00	-	+0.20/ -0.15	+0/ -0.5	-	±0.4	-	-	+60/ +20"
Tk3	75	1.8	2.2	55±0.2	-	10±2	25	5	90°
Tk5	87	1.8	3	60	-	16.4	25	3	90°
Tolerance	0/0.7	-	+0.2/ -0.15	0/-0.5	±1	±0.4	-	-	+60/+20
Tk3A	78	1.8	2.2	60	10	16.4	25	3	90°
TK5A	78	1.8	3.2	60	10	16.4	25	3	90°
