Cheap Rail Clip for Elevator

Availability:

Quantity:



Inquire Add to Basket

Application:
Elevator
Material:
Steel
Structure:
T Type
Installation:
Elevator Guide Rail
Driven Type:
No
Carrying Capacity:
Weight Level

Product Description

Elevator Guide Rail Clip

Honesty Superior Quality Innovation Win-win Relationship

1. Factory has passed ISO9001:2008

2. Guide Rail Clip products is based on the requirements of ISO7465/2007.

3. The annual working capacity is over 5000tons.

4. We are now exporting to more than 30 countries allaround the world,Such as USA,
CANANADA,TURKEY,IRAN,E GYPT,SPAIN,KOREA,JAPAN,THAILAND,RUSSIA,ETC.

5. We are supplier of HITACHI,OTIS,SANYO.

6. Superior quality builds up the factory fame,Efficient service wins customer`s credit.

Effective production management ensures efficient manufacturing.We always reserve
sufficient stock to ensure short delivery of all customer orders.

We welcome old friends and new friends come to visit us and build up reciprocal business
relationship. we are making all efforts to become the professional elevator parts supplier
anywhere and everywhere allaround you.

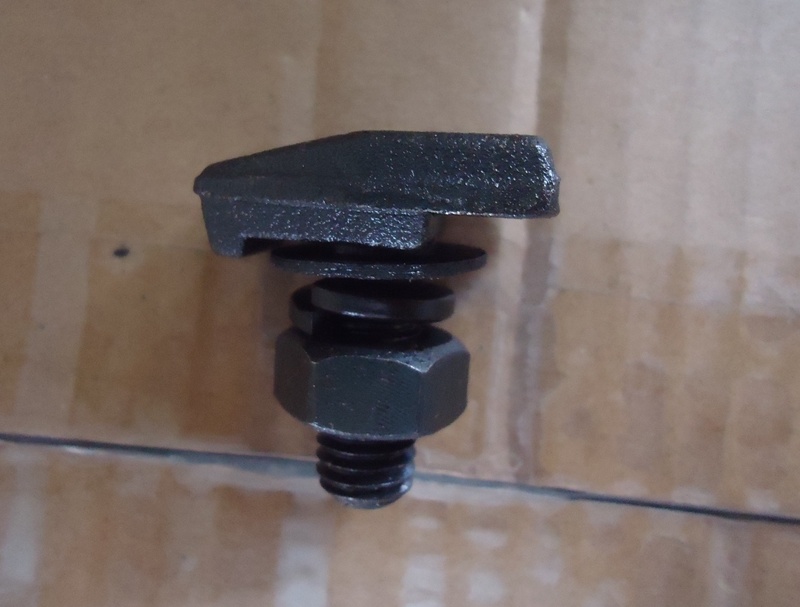

1. T Type Forged Rail Clip:

Model	Applicable	mm
T1	T45/A, T50/A	M10
T2	T70-1/B,T75-3/B,T82/B	M12
T3	T78/B,T89/B,T90/B	M14
T4	T114/B,T127-1/B,T127-2/B	M16
T5	T140-1/B,T140-2/B	M18

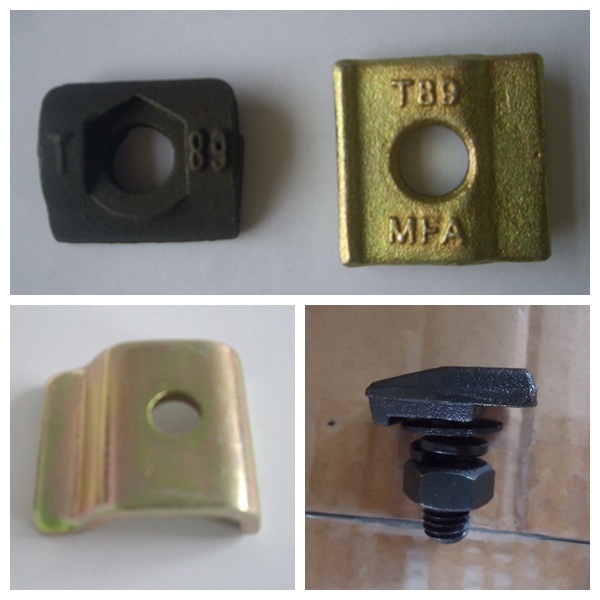

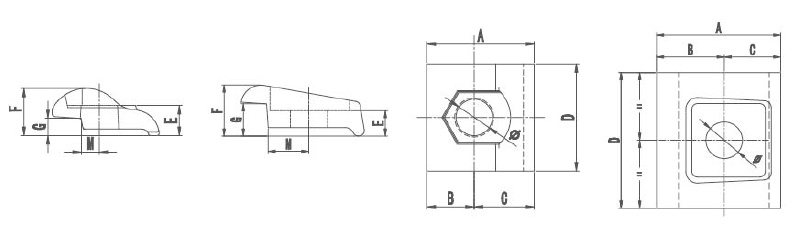

2. Forged( Casting) Rail Clip Cheap Rail Clip for Elevator

code	Designation	Dimensions (mm)
code	Designation	A	B	C	D	E	F	G	M	Φ	BOLT
NV75	T75-3/B	30	15	15	30	10.5	15	4.5	3	9	M8
NV89	T89/B	32	16	16	38	11	16	5	6	13	M12
NV90	T90/B	32	16	16	38	11	16	5	6	13	M12
NV114	T114/B	50	22	28	50	14	22	5	7.5	17	M16
NV1271	T127-1/B	50	22	28	50	14	22	5	7.5	17	M16
NV1272	T127-2/B	50	22	28	50	17	25	8	8	17	M16
NV1410	T140-1/B	50	22	28	50	17	25	8	8	17	M16
NV1402	T140-2/B	70	38	32	65	16	28.5	12.5	24	20.5	M18
NV1403	T140-3/B	70	38	32	76	19	28.5	19	24	20.5	M18

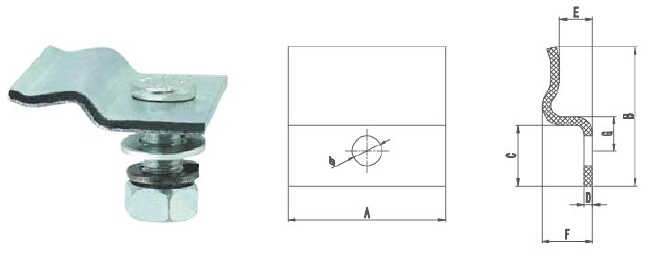

3. Sliding Rail Clip Cheap Rail Clip for Elevator

code	Designation	Dimensions (mm)
code	Designation	A	B	C	D	E	F	G	Φ	BOLT
NV75	T89/B	76	70	31	5	9	14.5	18.5	13	M12
NV75	T90/B	76	70	31	5	9	14.5	18.5	13	M12
NV90	T114/B	76	70	31	5	9	14.5	18.5	17.5	M16
NV90	T127-1/B	76	70	31	5	9	14.5	18.5	17.5	M16
NV1271	T127-2/B	76	70	33	5	14.5	20.5	19	17.5	M16
	T140-1/B	76	70	33	5	14.5	20.5	19	17.5	M16
	T140-2/B	76	70	33	5	14.5	20.5	19	17.5	M16

If you are interested in our rail clip, welcome to contact us as below.
