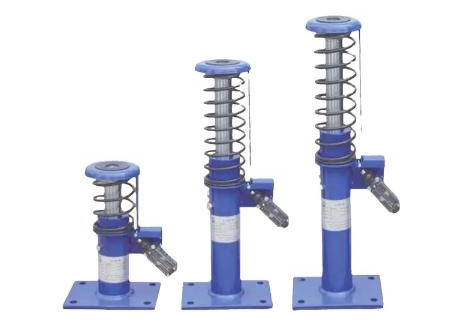

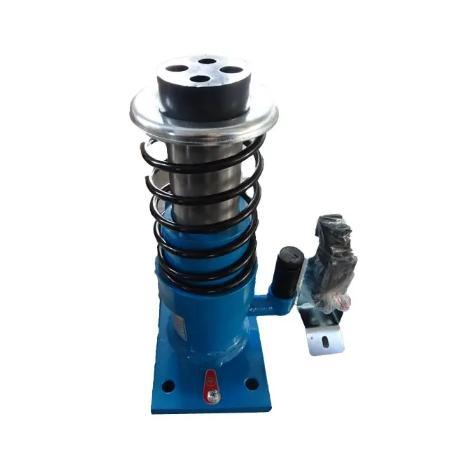

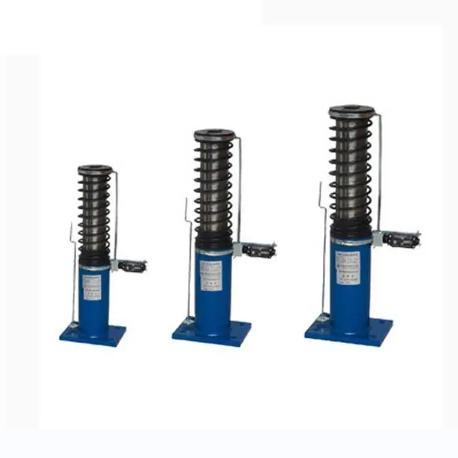

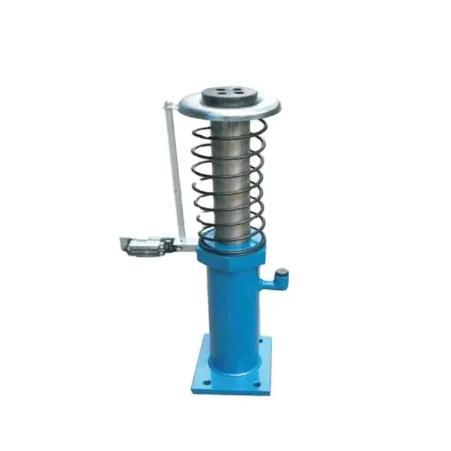

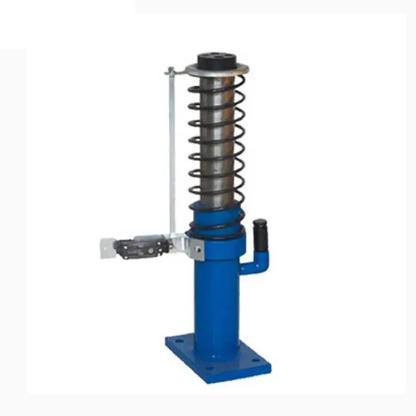

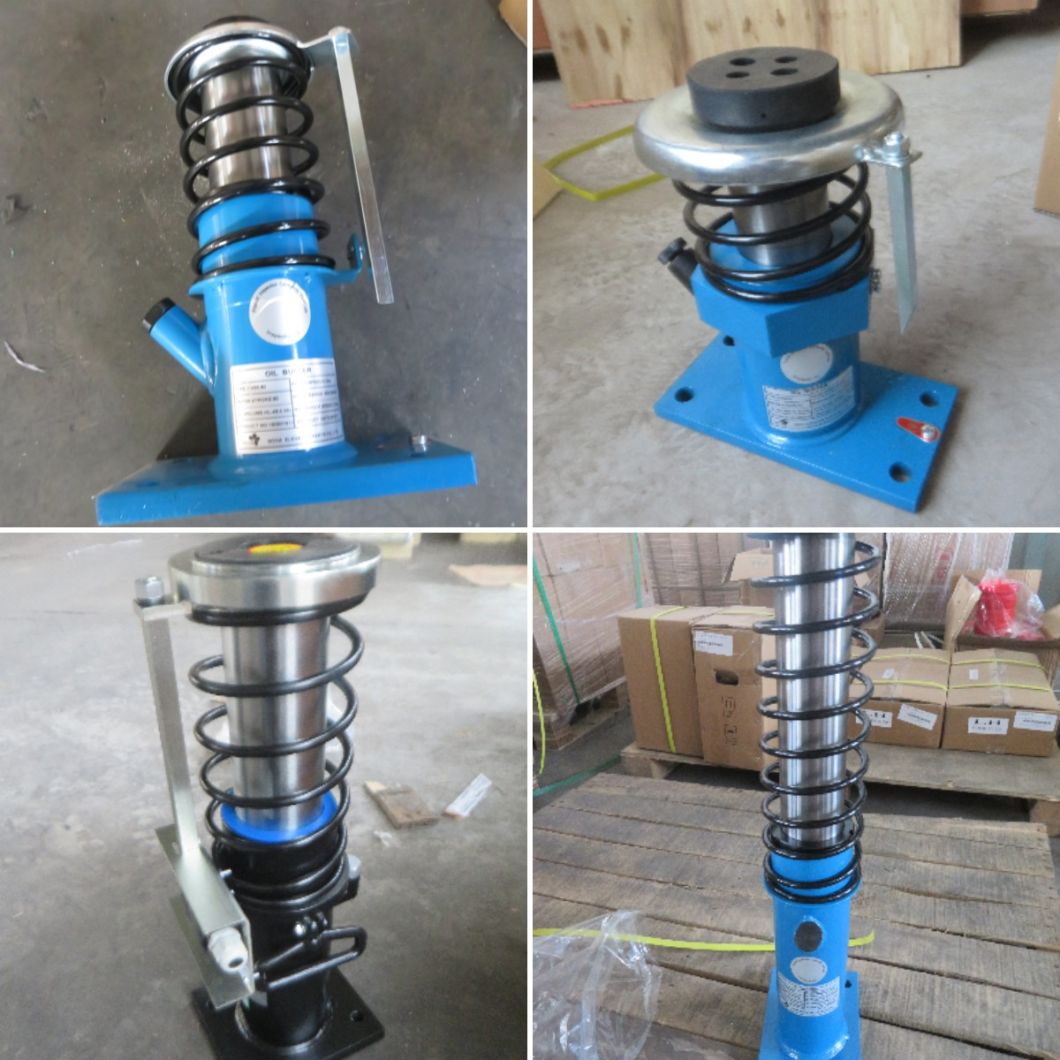

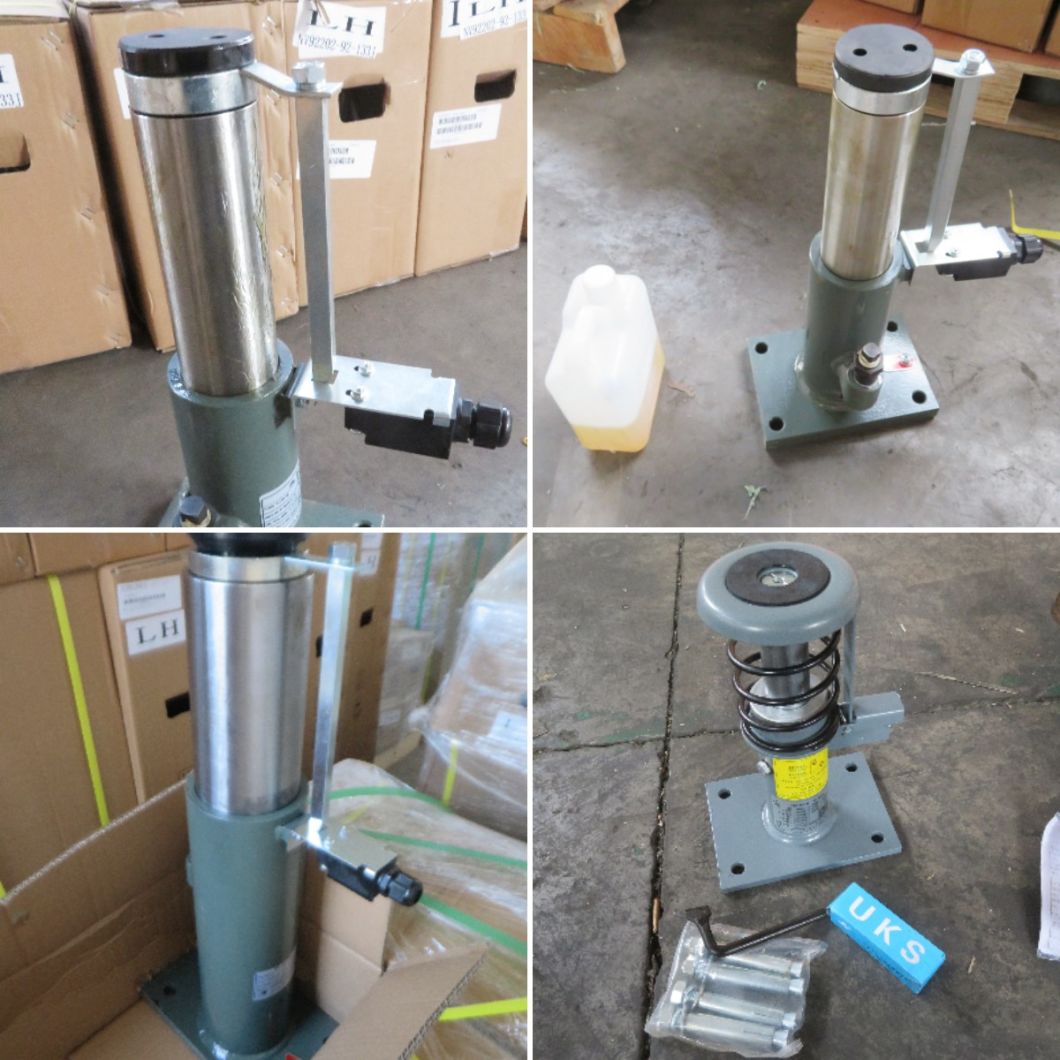

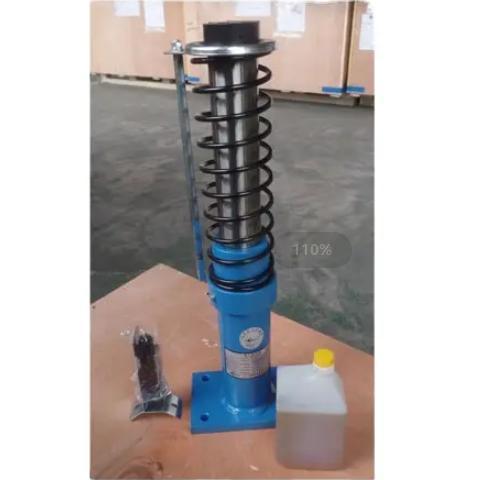

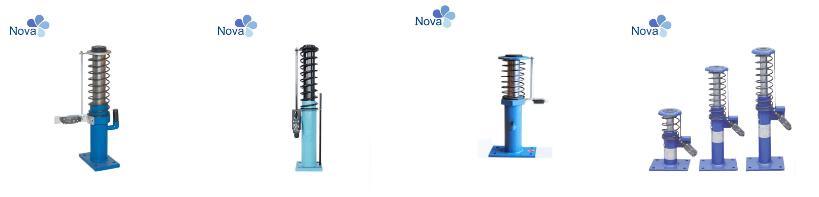

Cheap Elevator Safety Components Excellent Performance Oil Buffer

Share to:

Cheap Elevator Safety Components Excellent Performance Oil Buffer

Availability:

Quantity:



Inquire Add to Basket

After-sales Service:
1 Year
Warranty:
1 Year
Driving Type:
AC Elevator
Capacity:
500-1000kg
Persons:
6 - 10
Speed:
1.00 - 2.00m/s

Product Description

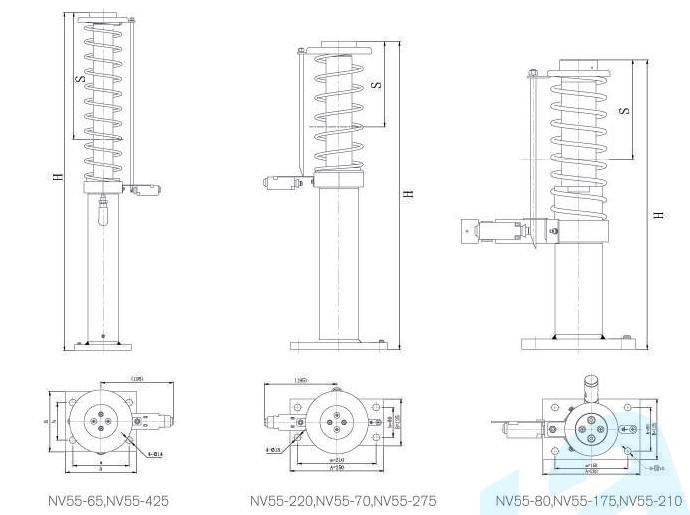

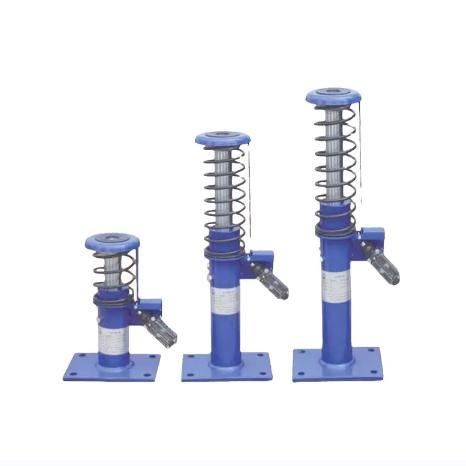

Nova Code	Rated Speed (m/s)	P+Q (Kg)	Plunger Stroke (mm)	Free Height (mm)	a*b (mm)	A*B (mm)	Oil Mass (L)
NV55-10	≤1.0	300-2500	100	390	150*90	180*125	0.5
NV55-16	≤1.6	700-5300	175	625	210*100	270*150	1.7
NV55-20	≤2.0	1000-5300	290	915	210*100	270*150	2.6
NV55-65	≤0.63	500-4600	65	350	150*100	190*160	0.45
NV55-70	≤1.0	300-2500	70	305	210*80	250*125	0.5
NV55-80	≤1.0	600-3000	80	315	150*90	200*125	0.4
NV55-175	≤1.6	600-3000	175	510	150*90	200*125	0.6
NV55-210	≤1.75	700-3600	210	600	150*90	200*125	0.8
NV55-220	≤1.75	600-2500	220	780	210*80	250*125	1.3
NV55-275	≤2.0	800-3800	275	790	210*80	250*125	1.5
NV55-425	≤2.5	820-3600	425	1130	150*100	190*160	2.5

·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.

1. Price Re:
please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.

2. Payment term Re:
T/T or L/C at sight.

3. Installation&Maintaining Re:
We will send installation&maintaining manual along with the elevator. Our sugguestion is to hire a professional local company for installation and future maintaining, once you need any technical assistant from us, just don't hesitate to contact us by mail or phone. Technician will be sent to the job site if necessary.

4. Shipping≺ice term Re:
Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.

Elevator Safety Components Cheap Elevator Safety Components Excellent Performance Oil Buffer Oil Buffer for Elevators

Cheap Elevator Safety Components Excellent Performance Oil Buffer
