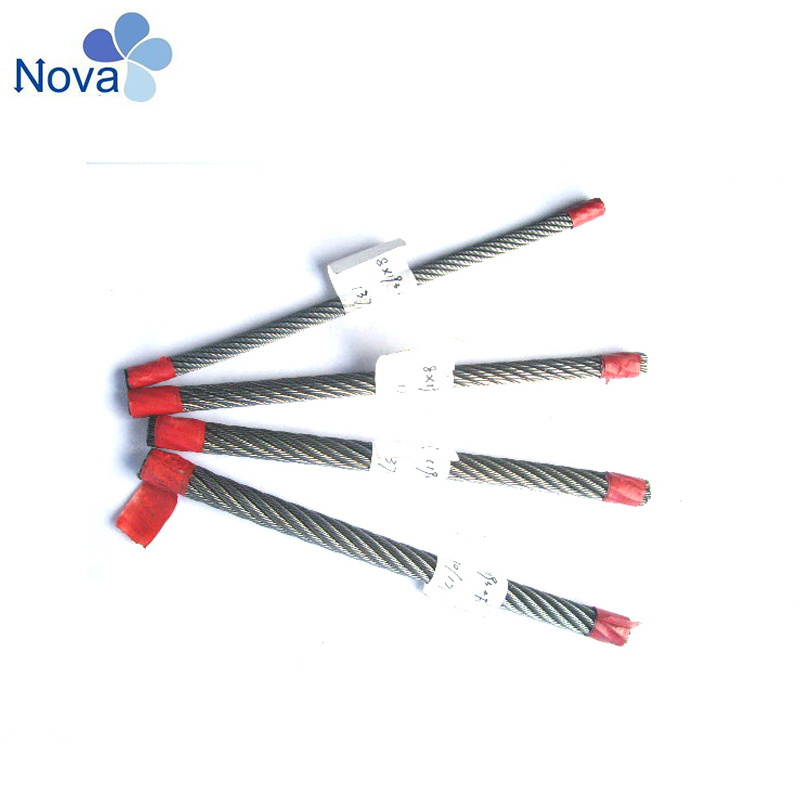

8*19s+FC/Iwrc Elevator Steel Wire Rope

Availability:

Quantity:



Inquire Add to Basket

Type:
Traction System
Suitable for:
Elevator
Load Capacity:
800
Persons:
6-10
Speed:
1.00-2.00m/s
Drive Mode:
AC

Product Description

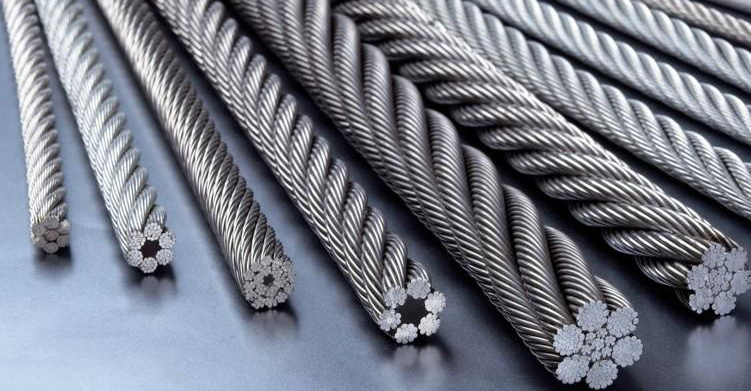

Elevator steel rope
1.Meet GB8903-88 standard.
2.Many specifications available
3.Dia.: 6 to 22mm

Elevator Rope,Elevator Steel Wire Rope,Lift Wire Rope,Ungalvanized/Galvanized Steel rope, Wire Rope for Elevator

Nova has been supplying high quality elevator wire rope as per customers' requirements as below:
--- 6×19S+Fc, 6×19W+Fc
--- 6×29Fi+Fc, 6×36WS+Fc
--- 8×19S+Fc, 8×19W+Fc, 8×25Fi+Fc
--- 8×19S+IWR, 8×19W+IWR, 8×25Fi+IWR
--- 9×19S+IWR, 9×19W+IWR, 9×21Fi+ IWR, 9×19S+9×7+Fc, 9×19W+9×7+Fc, 9×21Fi+9×7+Fc

Re:
1. Meet GB8903 standard.
2. Elevator speed of more than 2 m/s should be specified when ordered.

Ropes For Over Speed Governor
	619S+FC 619W+FC
Construction
Nominal rope diameter	6*19S+FC	Minimum breaking load
		Dual tensile,Mpa		Single tensile,Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
6.5	15.2	20.9	22.9	21.9	24.7
8	23	31.7	34.6	33.2	37.4
1. This rope is for low speed, low duty elevators. 2. If elevator with high speed, pls contact us. 3. We can also produce as customer's requirement. 4. Above specifications just for your reference, error may occur in actual.

Ropes For Traction Machine
Natural fiber core (NFC): Suspension ropes for medium duty elevators Elevator speed≤2.0M/S, Building height≤60M
	819S+FC 819W+FC
Construction
Nominal rope diameter	Approx weight	Minimum breaking load
		Dual tensile,Mpa		Single tensile,Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
9.5	30.7	39.7	43.6	41.5	46.8
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	111.3	123	118	133
17.5	104	135	147	141	159
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
20.6	144	187	204	195	220
22	165	213	233	223	251

Suspension ropes for elevator speed≤4.0M/S, Building height≤100M
	819S+IWRF 819W+IWRF 819S+IWRC 819W+IWRC
Construction
Nominal rope diameter	Approx weight		Minimum breaking load
			Dual tensile,Mpa				Single tensile,Mpa
			1370/1770		1570/1770 1620/1770		1570		1620		1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN		kN		kN		kN
8	26	25.9	35.8	35.2	38.0	37.4	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	48.2	47.3	45.3	44.5	46.7	45.9	51	50.2
9.5	36.7	36.6	50.4	49.6	53.7	52.8	50.4	59.6	52	51.2	56.9	55.9
10	40.7	40.5	55.9	55	59.5	58.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	79.1	70.7	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	85.6	84.2	80.5	79.1	83	81.6	90.7	89.2
12.7	65.6	65.3	90.1	88.6	95.9	94.3	90.1	88.6	93	91.5	102	99.9
13	68.8	68.4	94.5	92.9	100.0	98.8	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	117	115	110	108	113	111	124	121
14.3	83.2	82.8	114	112	122	120	114	112	118	116	129	127
15	91.6	91.1	126	124	134	132	126	124	130	128	142	139
16	104	104	143	141	152	150	143	141	148	145	161	159
17.5	125	124	171	166	182	179	171	168	177	174	193	190
18	132	131	181	178	193	189	181	178	187	184	204	201
19	147	146	202	198	215	211	202	198	208	205	227	224
20	163	162	224	220	238	234	224	220	231	227	252	248
20.6	173	172	237	233	252	248	237	233	245	241	267	263
22	197	196	271	266	283	283	271	266	279	274	305	300
1. We can also produce as customer's requirement. 2. Above specifications just for your reference, error may occur in actual. 3. For more information, pls consult us.

Company Information

8*19s+FC/Iwrc Elevator Steel Wire Rope

Packaging & Shipping

8*19s+FC/Iwrc Elevator Steel Wire Rope Our Services

8*19s+FC/Iwrc Elevator Steel Wire Rope

FAQ

1. Price
Re: please send us inquiry from Alibaba, we will quote to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.

2. Payment term
Re: T/T or L/C at sight.

3. Installation&Maintaining
Re: We will send installation&maintaining manual along with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.

4. Shipping≺ice term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
