AC Elevator
450-1600kgs
6-21 Persons
0.5-4.0m/S

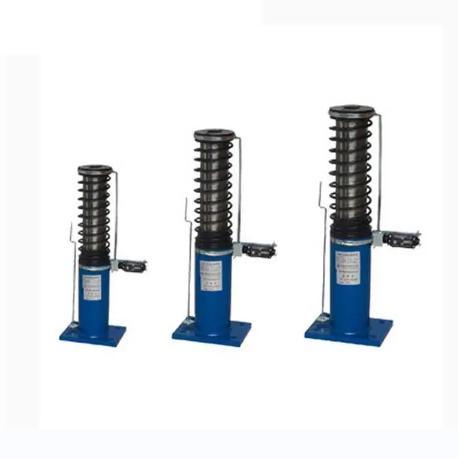

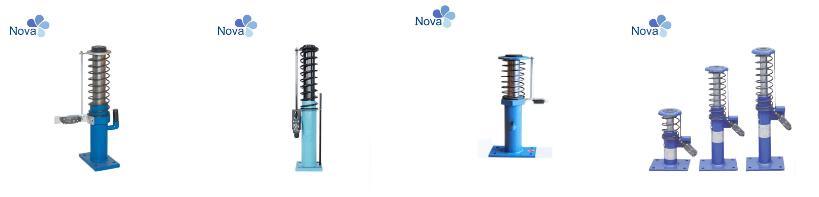

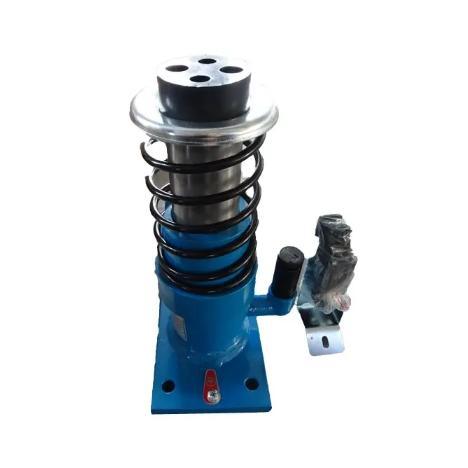

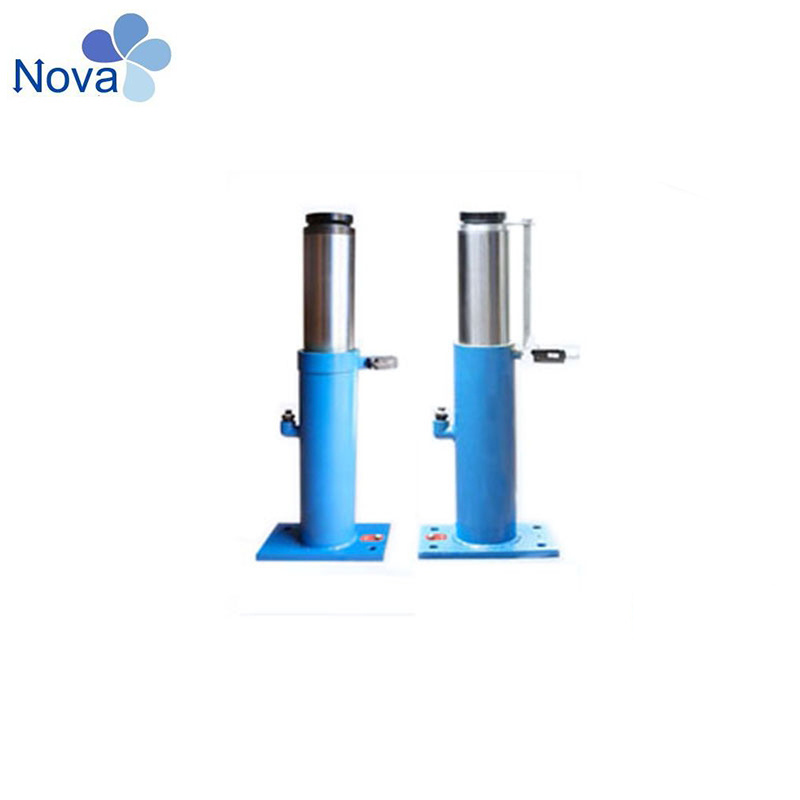

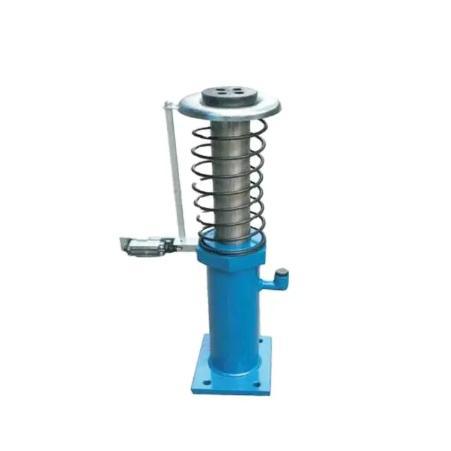

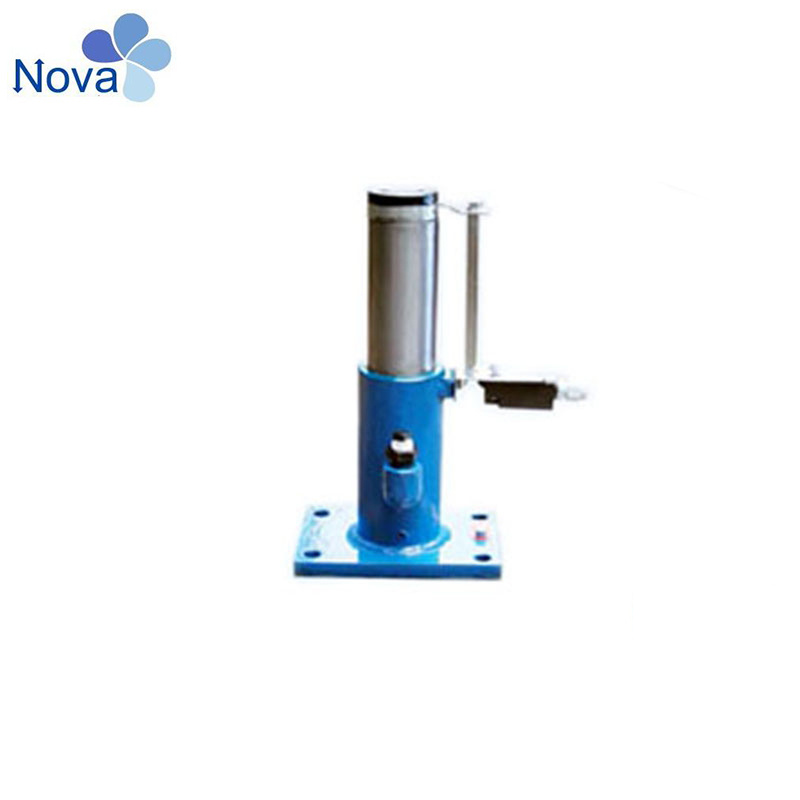

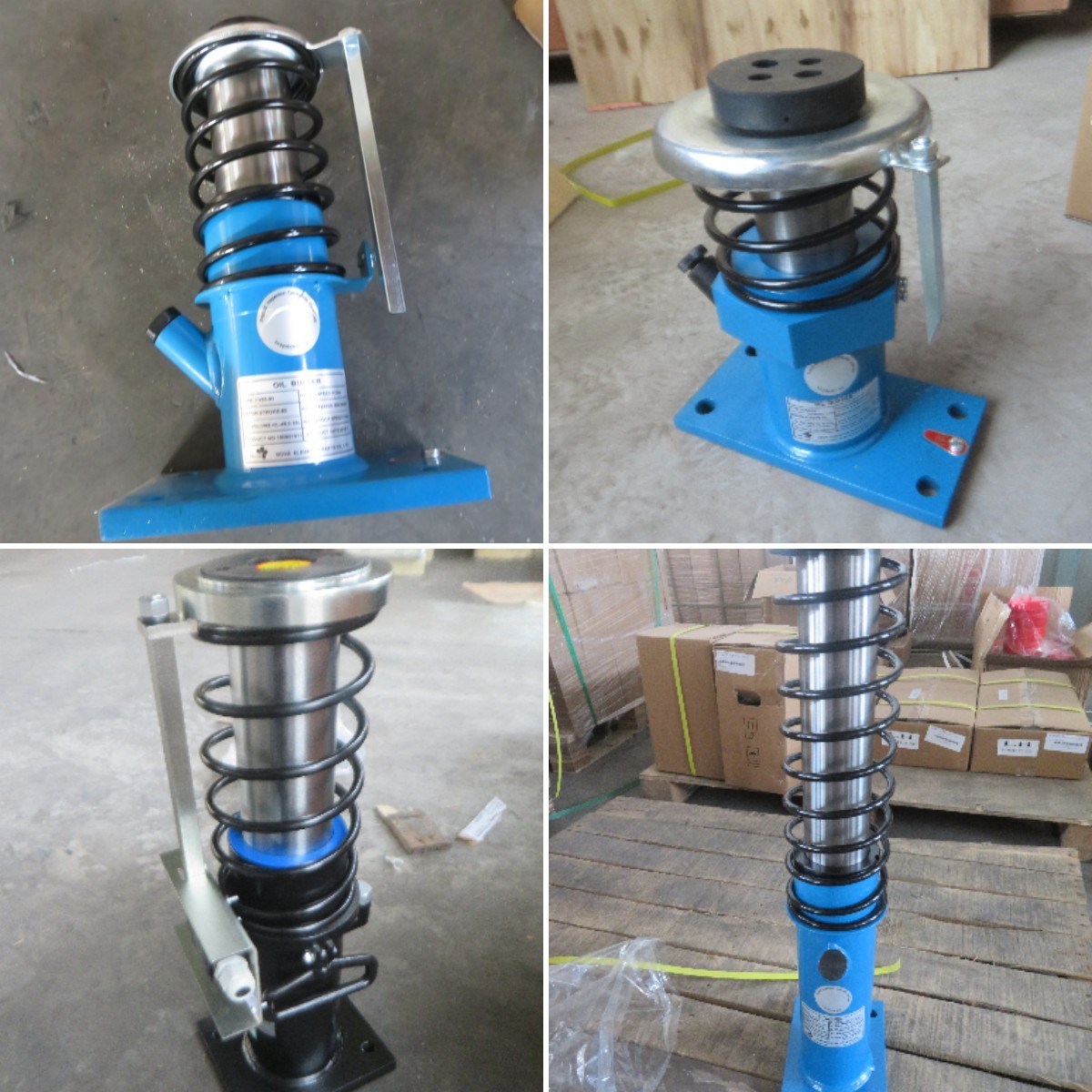

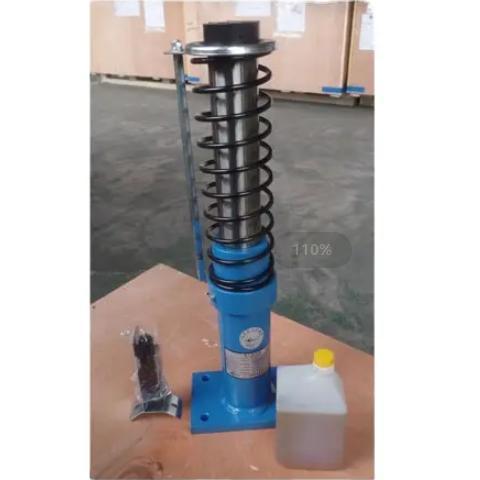

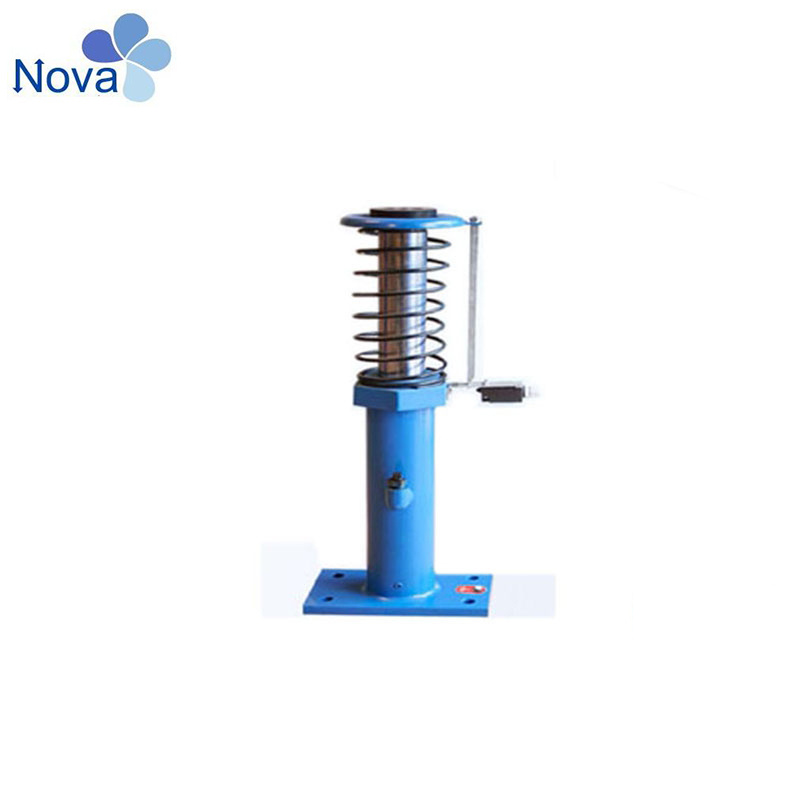

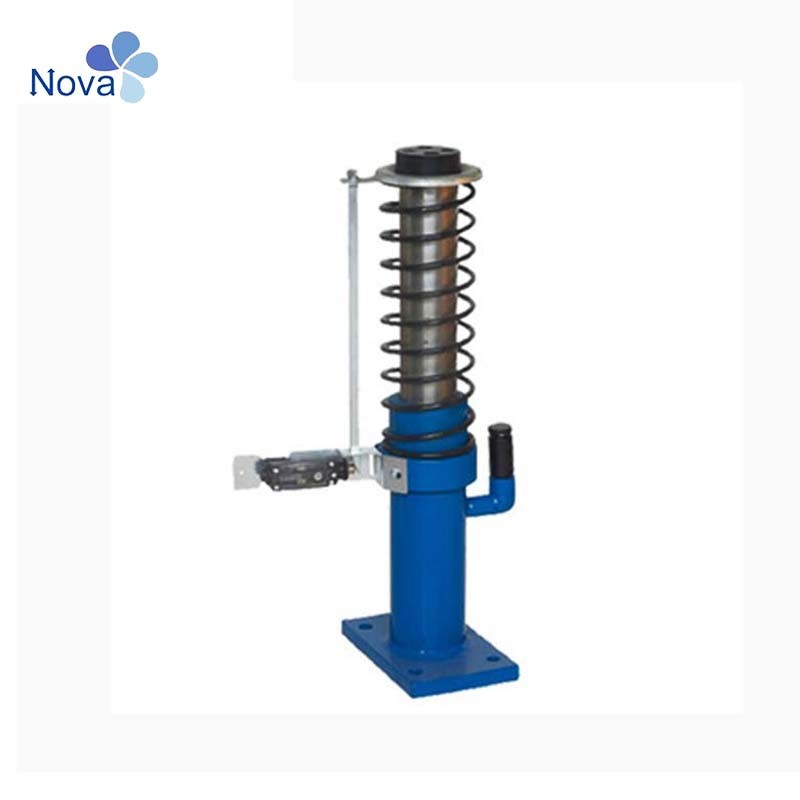

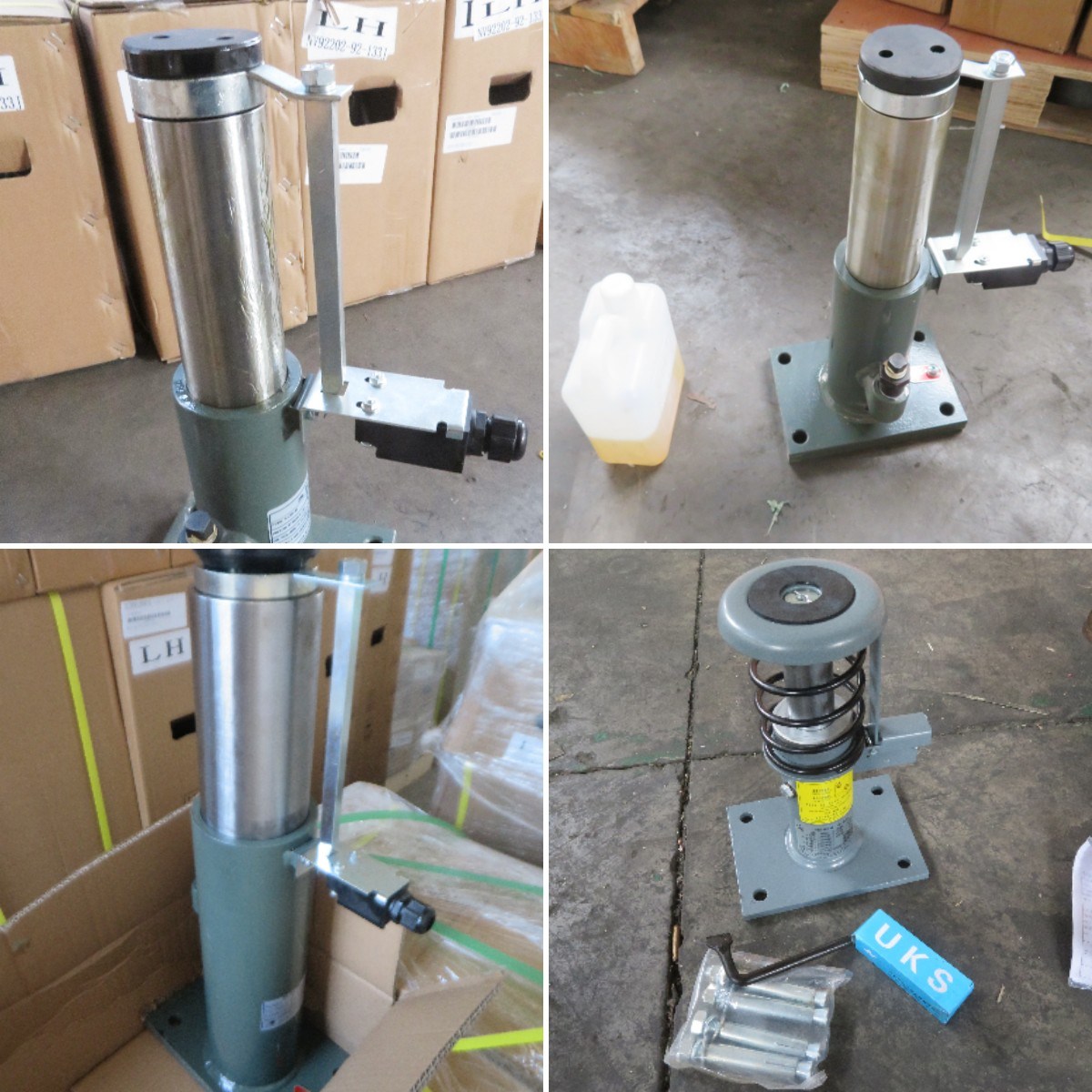

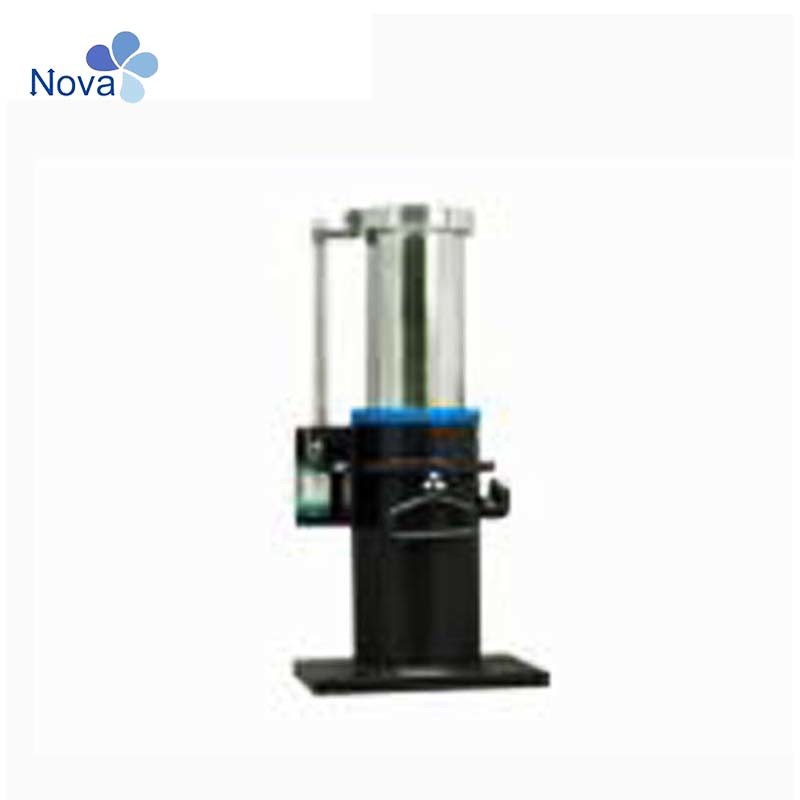

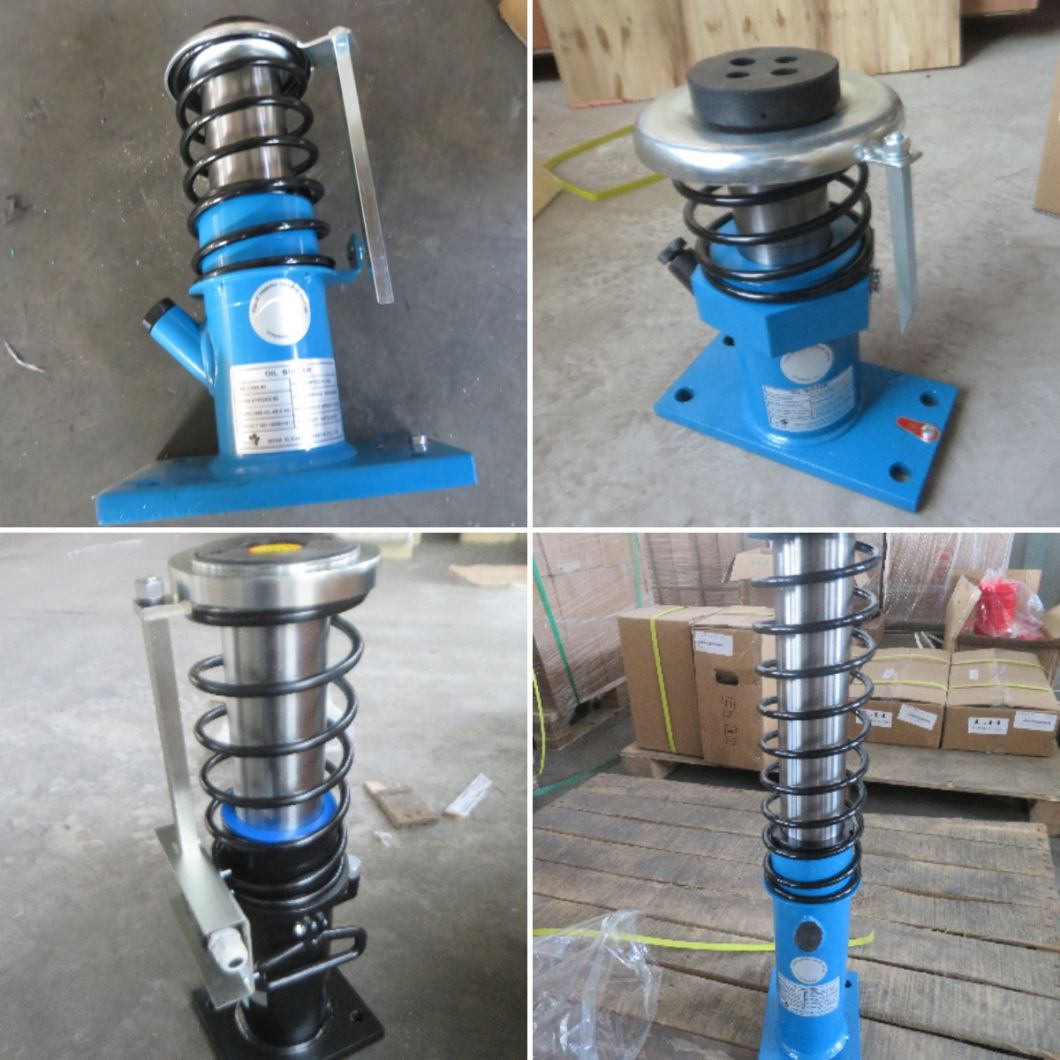

| Nova Code | Rated Speed (m/s) | P+Q (Kg) | Plunger Stroke (mm) | Free Height (mm) | a*b (mm) | A*B (mm) | Oil Mass (L) |
| NV55-10 | ≤1.0 | 300-2500 | 100 | 390 | 150*90 | 180*125 | 0.5 |
| NV55-16 | ≤1.6 | 700-5300 | 175 | 625 | 210*100 | 270*150 | 1.7 |
| NV55-20 | ≤2.0 | 1000-5300 | 290 | 915 | 210*100 | 270*150 | 2.6 |
| NV55-65 | ≤0.63 | 500-4600 | 65 | 350 | 150*100 | 190*160 | 0.45 |
| NV55-70 | ≤1.0 | 300-2500 | 70 | 305 | 210*80 | 250*125 | 0.5 |
| NV55-80 | ≤1.0 | 600-3000 | 80 | 315 | 150*90 | 200*125 | 0.4 |
| NV55-175 | ≤1.6 | 600-3000 | 175 | 510 | 150*90 | 200*125 | 0.6 |
| NV55-210 | ≤1.75 | 700-3600 | 210 | 600 | 150*90 | 200*125 | 0.8 |
| NV55-220 | ≤1.75 | 600-2500 | 220 | 780 | 210*80 | 250*125 | 1.3 |
| NV55-275 | ≤2.0 | 800-3800 | 275 | 790 | 210*80 | 250*125 | 1.5 |
| NV55-425 | ≤2.5 | 820-3600 | 425 | 1130 | 150*100 | 190*160 | 2.5 |
Company Information
Our Services
1. Price
Re: please send us inquiry from Made in China, we will quote to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
