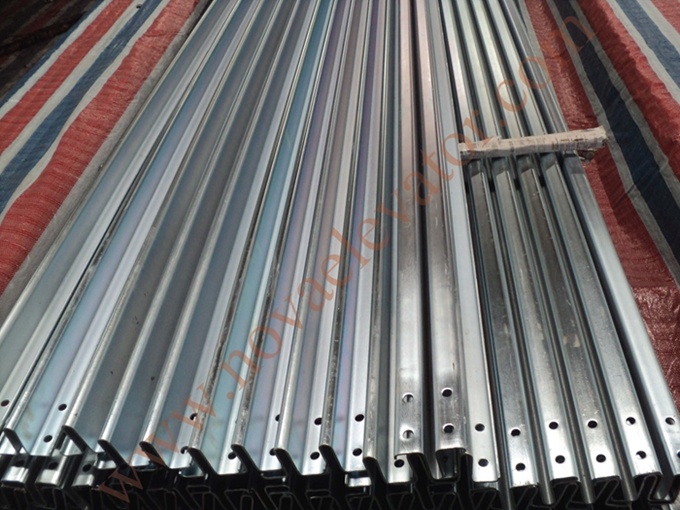

Elevator Rail/ Elevator Guide Rail/ T Type Guide Rail/ Guide Rail Manufacturer and Supplier from China/ Machined Guide Rail/ Lift Machined Guide Rail/ Cold Drawn Guide Rail/ Hollow Guide Rail/ 5mm Guide Rail/ 9mm Elevator Guide Rail/ 10mm Guide Rail/ 16mm Guide Rail
1. With more than 20 years experience in manufacturing elevator guide rails, Nova has been supplying and exporting elevator guide rails in big volume every year.
2. Our Guide Rail are strict follow ISO7465/2007, GB-T22562/2008
3. We are OTIS, SJEC,FUJI, IFE, TOSHIBA Supplier
4. We make OEM for MARAZZI, MONTEFERRO
1. Cold Drawn Guide Rail | Processing Model | Type | Dimension |
| Cold Drawn Guide Rail | T45/A | 45*45*5MM |
| T50/A | 50*50*5MM |
| T70/A | 70*65*9MM |

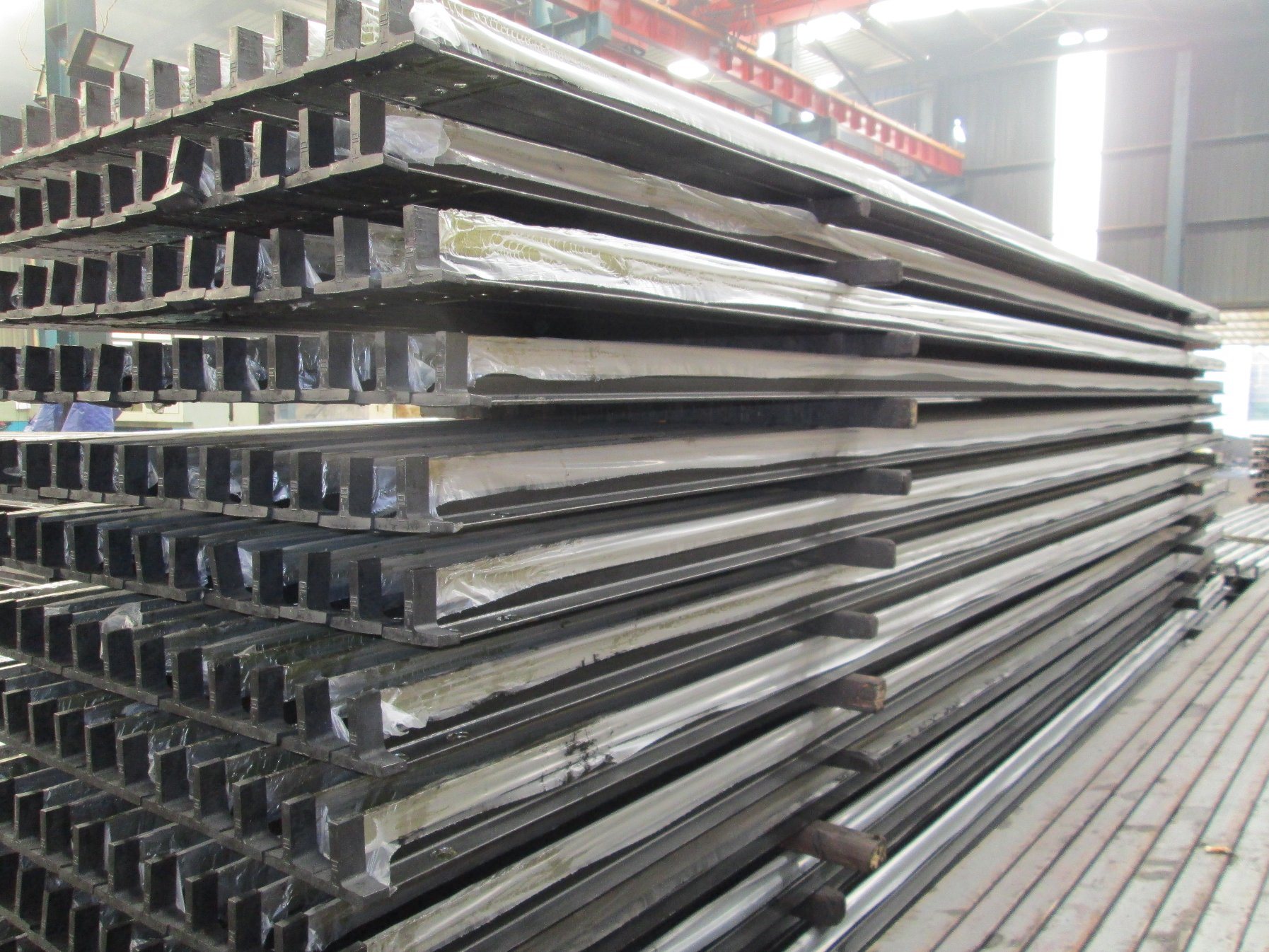

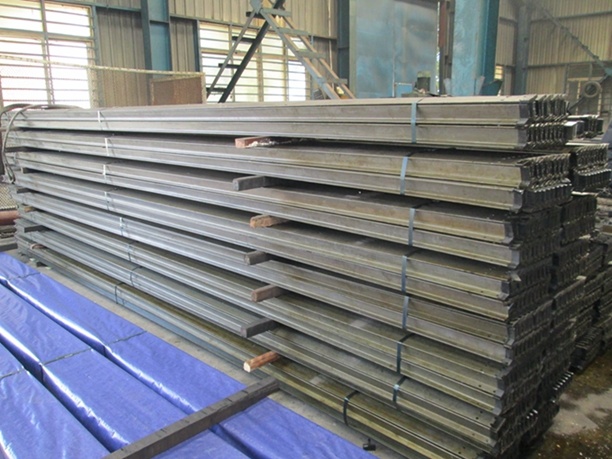

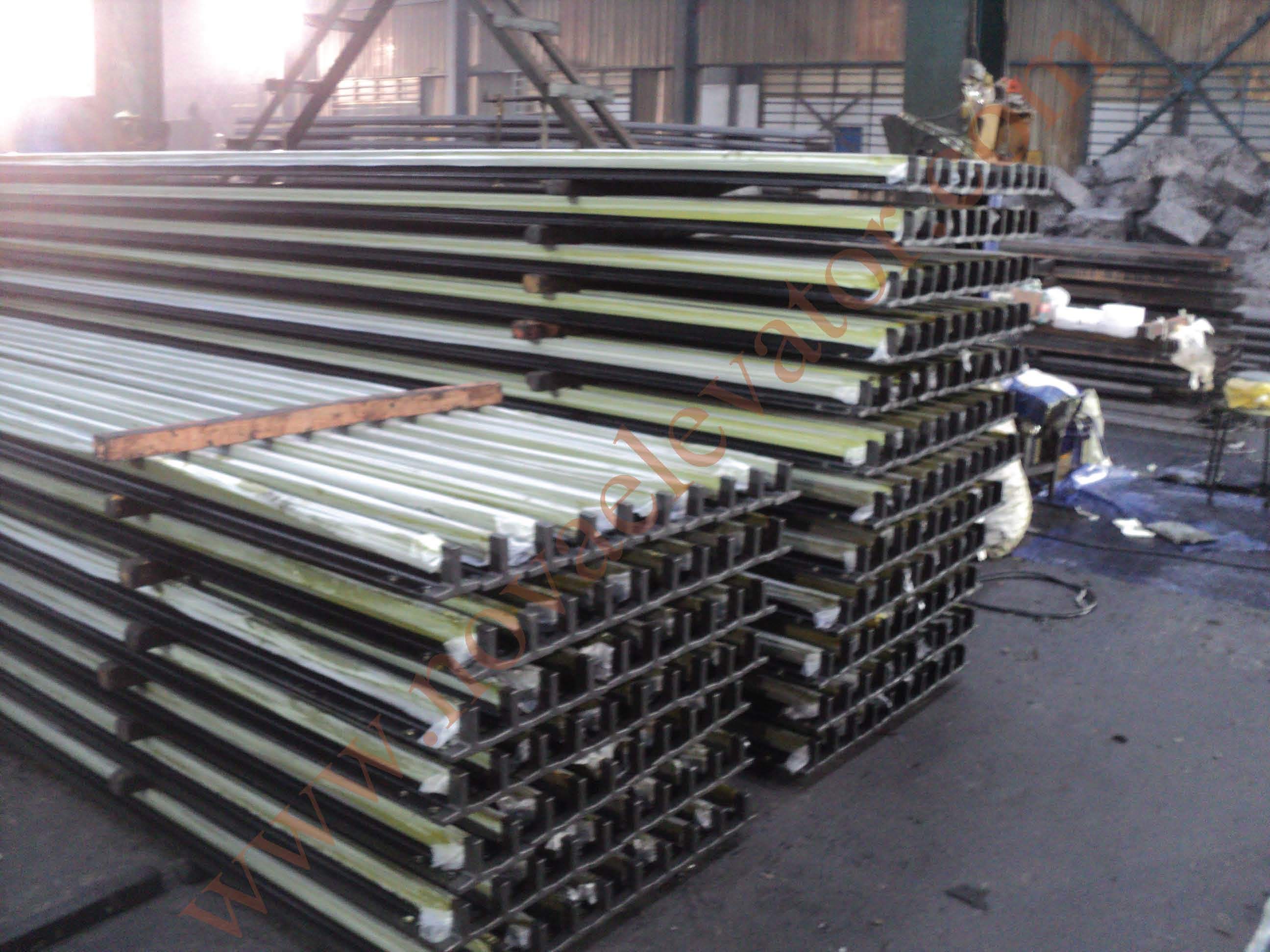

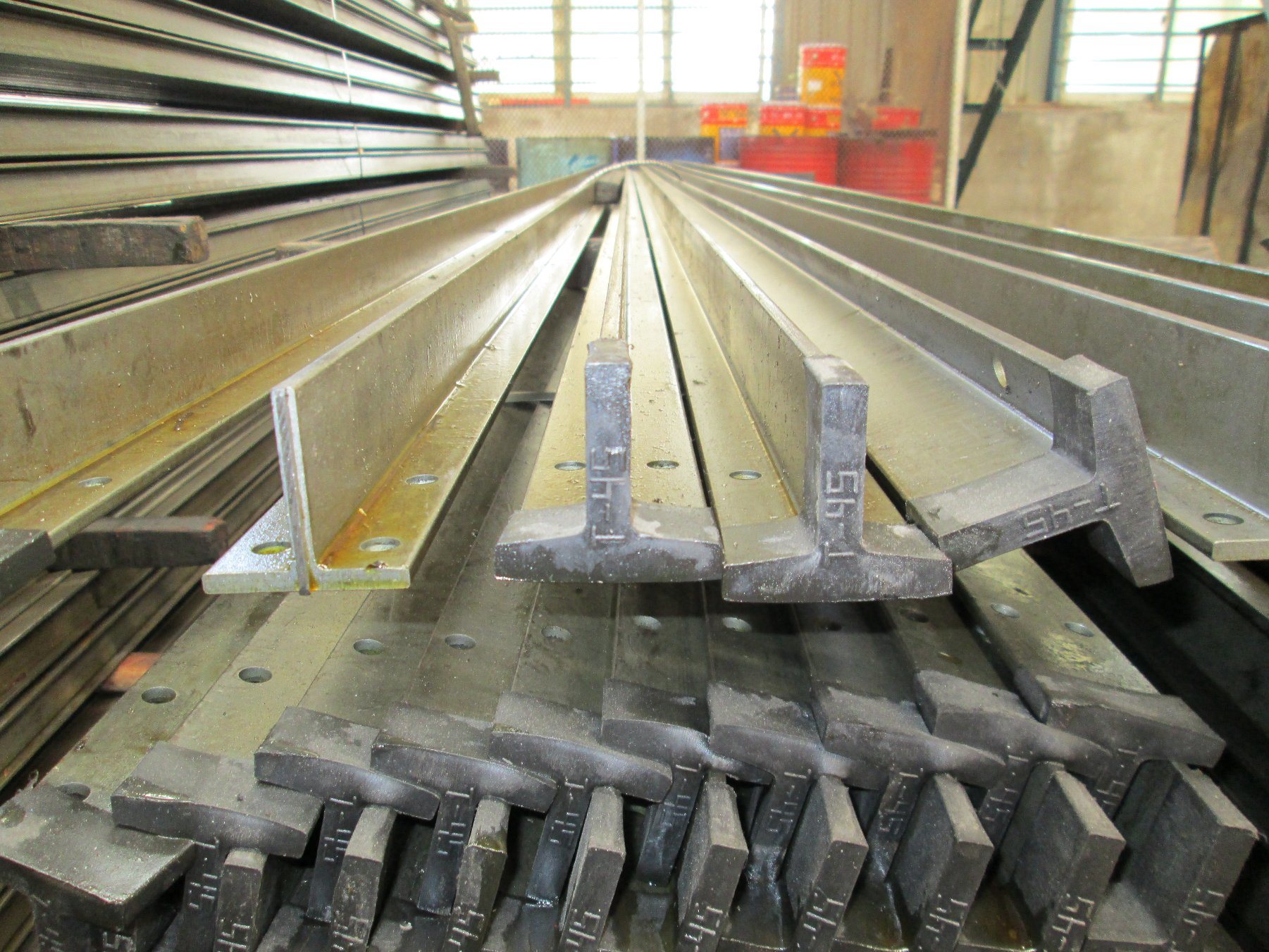

2. Machined Guide Rail
Dimention of Machined Guide Rail | Guide Rail | b1 | h1 | h | k | n | c | g | f | m1 | m2 | t1 | t2 | d | d1 | i | b3 | i2 | i3 |
| | ±0.5 | ±0.75 | ±0.1 | +0.1 | +3.0 | | ±0.75 | | +0.06/0 | 0/-0.06 | ±0.10 | ±0.1 | | | +3/0 | ±0.2 | ±0.2 | ±0.2 |
| T70/B | 70 | 65 | 64 | 9 | 34 | 6 | 6 | 8 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | 128 | 42 | 105 | 25 |
| T75/B | 75 | 62 | 61 | 10 | 30 | 8 | 7 | 9 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | 123 | 43 | 90 | 30 |
| T78/B | 78 | 56 | 55 | 10 | 26 | 7 | 6 | 8.5 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | 138 | 42 | 105 | 25 |
| T82/B | 82 | 68.3 | 66.8 | 9 | 25.4 | 7.5 | 6 | 8.25 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | 111 | 50.8 | 81 | 27 |
| T89/B | 89 | 62 | 61 | 15.88 | 33.4 | 10 | 7.9 | 11.1 | 6.4 | 6.37 | 7.14 | 6.35 | 13 | 26 | 156 | 57.2 | 114.3 | 38.1 |
| T90/B | 90 | 75 | 74 | 16 | 42 | 10 | 8 | 10 | 6.4 | 6.37 | 7.14 | 6.35 | 13 | 26 | 156 | 57.2 | 114.3 | 38.1 |
| T114/B | 114 | 89 | 88 | 16 | 38 | 10 | 8 | 11 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | 156 | 74 | 114.3 | 38.1 |
| T127-1/B | 127 | 88.9 | 88 | 15.88 | 44.5 | 10 | 7.9 | 15.9 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | 156 | 79.1 | 114.3 | 38.1 |
| T127-2/B | 127 | 88.9 | 88 | 15.88 | 50.8 | 10 | 12.7 | 15.9 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | 156 | 79.1 | 114.3 | 38.1 |
| T140-1/B | 140 | 108 | 107 | 19 | 50.8 | 12.7 | 12.7 | 15.9 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | 193 | 92.1 | 152.4 | 31.8 |
| T140-2/B | 140 | 102 | 101 | 28.6 | 50.8 | 17.5 | 14.5 | 17.5 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | 193 | 92.1 | 152.4 | 31.8 |

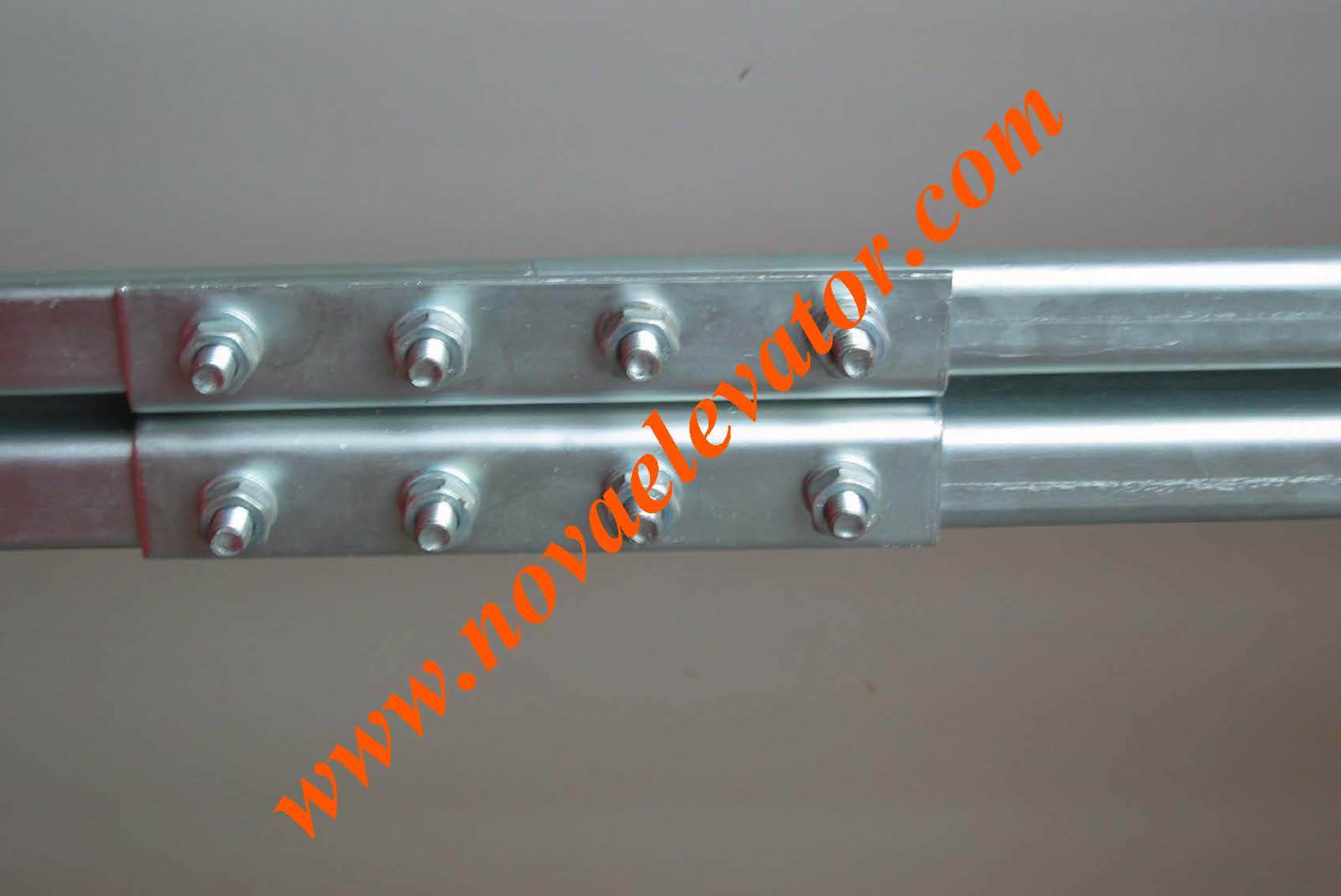

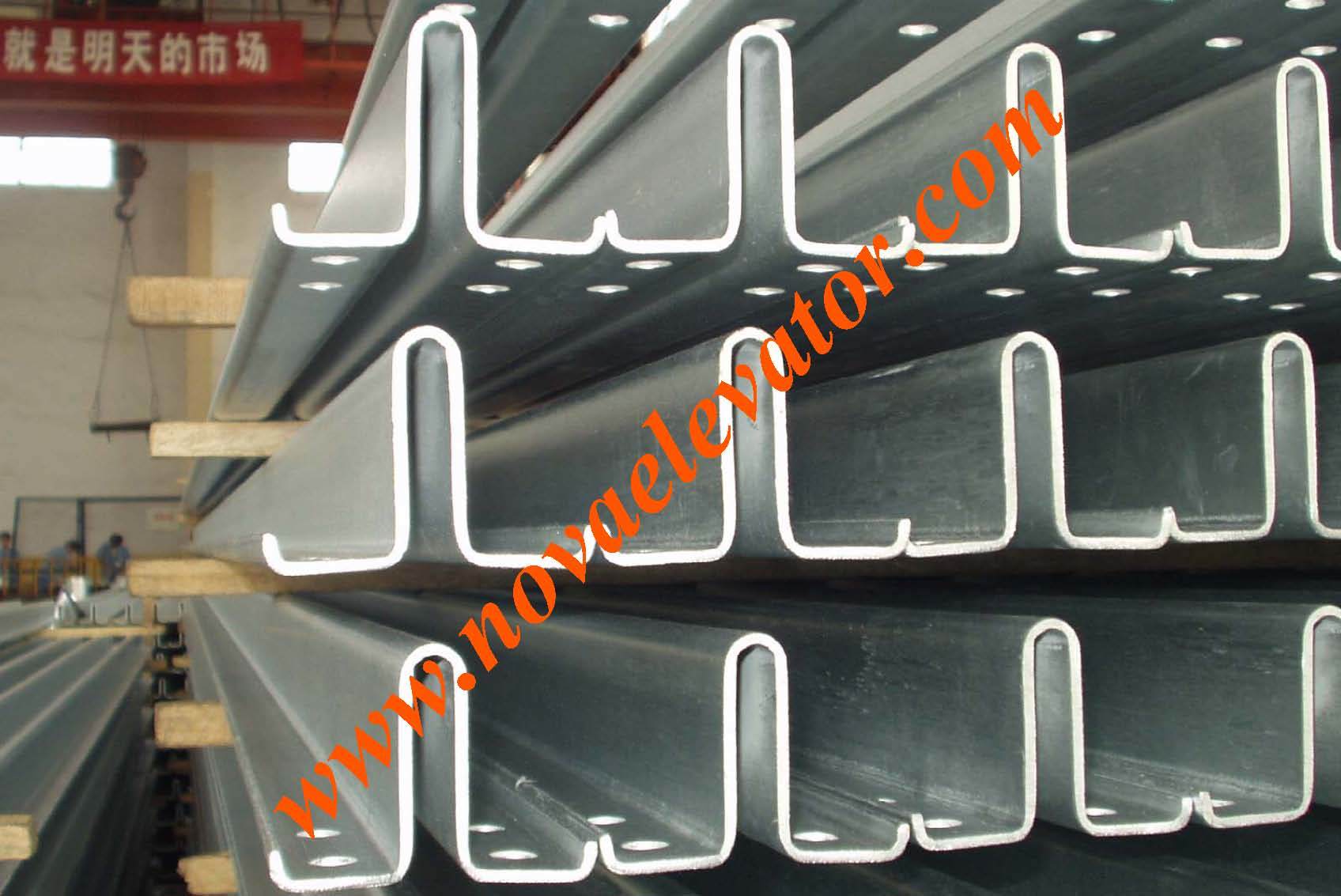

3. Hollow Guide Rail | Processing Model | Type | Dimension |
| Hollow Guide Rail | TK3 | 70*55*10MM |
| TK5 | 87*60*16MM |
| TK3A | 78*60*16MM |
| TK5A | 78*60*16MM |
If you are interested in our guide rail, welcome to contact us as below. | Contact | Ms. Jessica Sun |
| | 0086 139 1572 7430 |
| TEL.: | 0086-512- 5677 1008 |
| FAX: | 0086-512-5879 5609 |
| Web: | novaelevator.en.made-in-china.com
novaelevator.en.made-in-china.com |
| | novaelevator02 |
